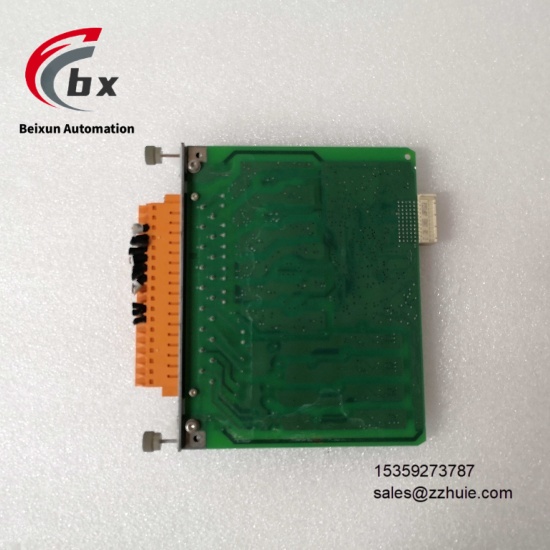

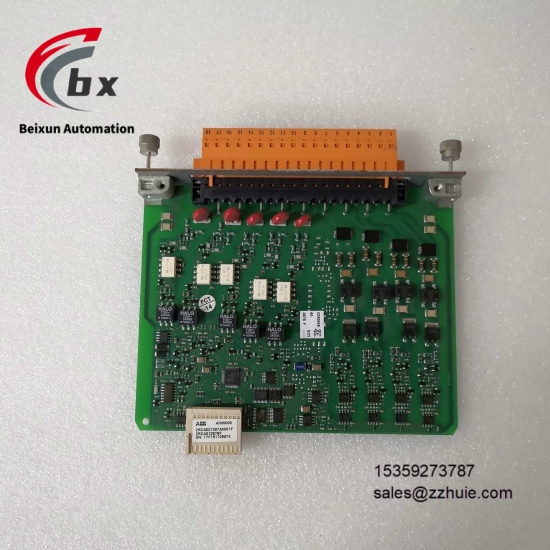

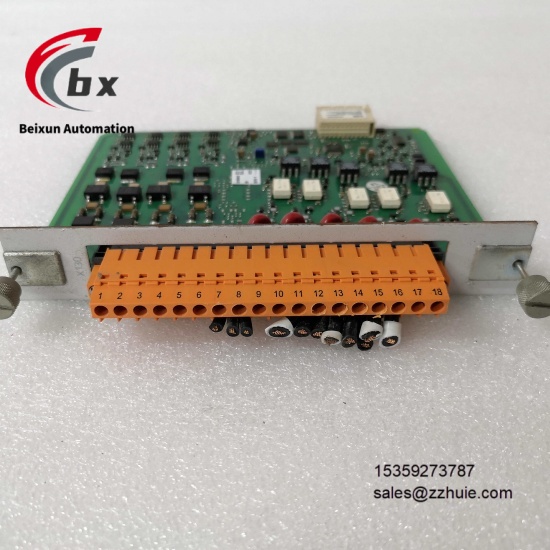

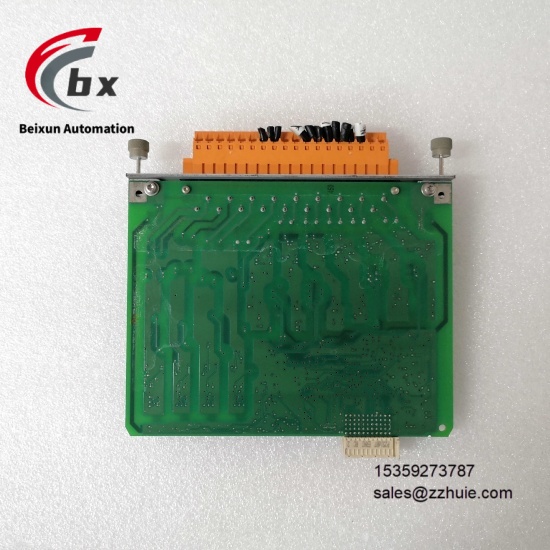

ABB AIM0006 2RCA021397A0001F input module
Specific Parameters
Brand ABB (Swiss Brand)
Product Series AC800F Series I/O Module
Product Type Multi-functional Analog/Binary Input (AI/BI) Module
Model AIM0006 2RCA021397A0001F
Analog Input Range -320mA to +320mA, -10V to +10V, 0mA to 20mA, 4mA to 20mA
Resolution 16-bit
Conversion Accuracy 0.1%
Response Time ＜2ms
Supply Voltage 24VDC
Isolation Feature Electrical isolation between input/output, power supply and chassis
Protection Level IP67
Physical Dimensions 130mm×110mm×22mm
Physical Weight 0.5kg
Material Aluminum Alloy
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -55℃ to +85℃
Relative Humidity 5% to 95%, Non-condensing
Supported Protocols Modbus TCP/IP, Profibus
Architecture Design Redundant Architecture
Product Performance
16-bit high resolution combined with 0.1% conversion accuracy can accurately collect multiple types of analog and binary signals, and the response time of ＜2ms meets the requirements of real-time control systems without signal lag.
Comprehensive electrical isolation design effectively resists electromagnetic interference and surge impact in industrial sites, and the redundant architecture ensures the system can still operate normally when a single module fails, improving overall reliability.
IP67 high protection level adapts to harsh industrial environments, resisting dust and low-pressure water immersion. The aluminum alloy material balances structural strength and light weight, facilitating integration and installation.
Compatible with multiple mainstream industrial communication protocols, it can be seamlessly integrated into ABB AC800F control system and third-party PLC/DCS. The modular design simplifies installation and maintenance processes, reducing operation and maintenance costs.
Wide temperature operating and storage ranges adapt to extreme transportation and operation conditions, with strong stability in long-term continuous operation, and can adapt to multi-parameter synchronous acquisition needs in complex industrial scenarios.
