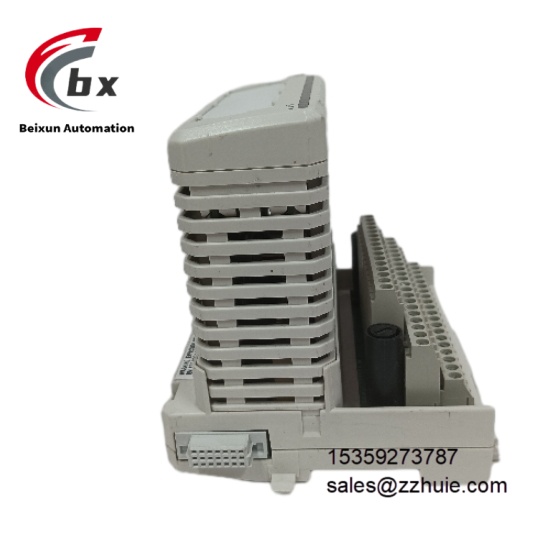

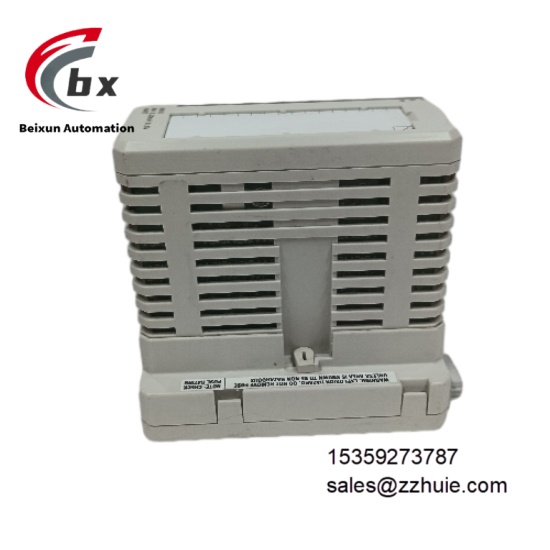

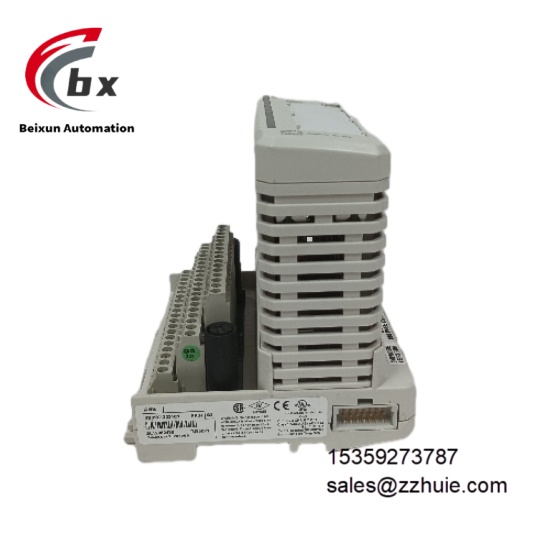

ABB AI815 3BSE052604R1 Analog input module

Specific Parameters

Electrical Parameters
Number of Input Channels: 8 channels (independent acquisition, electrical isolation between channels)
Signal Types:
Current Signals: 4-20mA DC (2-wire/4-wire), 0-20mA DC
Voltage Signals: 0-5V DC, 0-10V DC, ±5V DC, ±10V DC
Thermocouples: Type K, J, T, E, R, S, B, N
RTDs: PT100 (3-wire/4-wire), Cu50
Measurement Accuracy: ±0.1% Full Scale (FS), additional ±0.2°C compensation for thermocouple signals
Resolution: 24-bit (A/D conversion)
Sampling Rate: 10Hz per channel (configurable via software)
Isolation Level: 2.5kV AC between channels (1 minute), 2.5kV AC between signals and system (1 minute)
Power Supply: 24V DC ±10%, powered by I/O rack backplane
Power Consumption: ≤3W under normal operation
Communication Protocol: Supports HART 7 standard (independent HART address for each channel), compatible with PROFIBUS DP (via I/O rack)
Environmental Parameters
Operating Temperature: -25°C to 70°C (non-condensing, normal startup from -25°C to 0°C)
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, continuous operation at 40°C/90% humidity)
EMC Immunity: Complies with EN 61326-1 (industrial grade), common mode rejection ratio ≥120dB, differential mode rejection ratio ≥80dB
Vibration Resistance: 10-500Hz, 1g acceleration (IEC 60068-2-6, sinusoidal vibration, each axis tested)
Shock Resistance: 15g acceleration, 11ms duration (IEC 60068-2-27, half-sine shock, 3 times per axis)
Protection Class: IP20 (module itself, dependent on I/O rack protection)
Certification Standards: CE, UL 508, ATEX Zone 2 (non-explosion-proof, requires safety barriers for explosive areas)
Mechanical Parameters
Dimensions: 25mm (W) × 100mm (H) × 160mm (D) (fits AC 800M standard I/O rack slots)
Weight: Approximately 280g
Mounting Method: Plug-in installation in AC 800M series I/O racks, supporting hot-swapping (requires system configuration approval)
Housing Material: Flame-retardant reinforced nylon (UL 94 V-0 grade, chemical corrosion resistant)
Terminal Type: Spring-loaded crimp terminals (compatible with 16-24 AWG wires, tool-free wiring)
Indicators: Module Power (PWR, green), Channel Fault (CHx, red, independent per channel), HART Communication (HART, yellow, independent per channel)

Product Performance

Adopting 24-bit high-precision A/D conversion chip and low-temperature drift signal conditioning circuit, the full-range measurement error is ≤±0.1% FS, and the measurement resolution of PT100 signals reaches 0.01°C, meeting high-precision parameter acquisition requirements in process industry. Each channel independently supports HART protocol, enabling remote reading of range, unit, fault code and other parameters of intelligent transmitters (e.g., pressure transmitters) via AC 800M controller or ABB Control Builder M configuration software, realizing “non-disconnection configuration” and reducing on-site maintenance workload.

Electrical isolation between channels avoids signal crosstalk; overvoltage protection (≤35V DC) and overcurrent protection (≤50mA) can resist abnormal on-site signal impact, protecting the module’s core circuit from damage. It supports hot-swapping; module replacement does not require turning off the I/O rack power, only needs to activate “offline mode” in the configuration software, and communication is automatically restored after replacement, adapting to 24/7 continuous production scenarios.

Fully compatible with AC 800M series controllers (e.g., PM861, PM864), the data transmission delay is ≤100ms, supporting signal filtering, range conversion and other preprocessing functions on the controller side without additional hardware. The Mean Time Between Failures (MTBF) is ≥600,000 hours (MIL-HDBK-217F, 25°C environment), complying with industrial-grade long-life operation standards.
