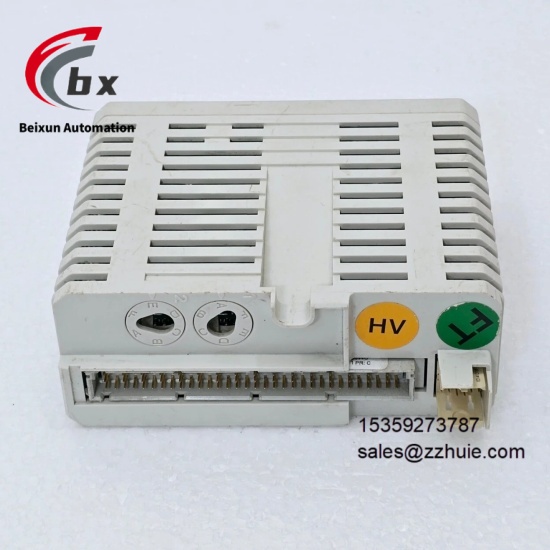

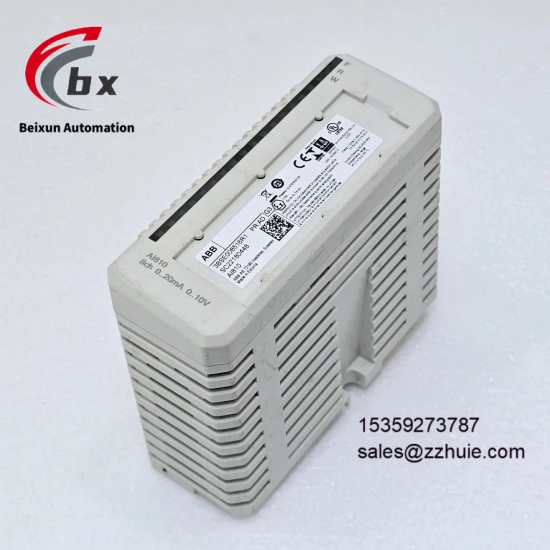

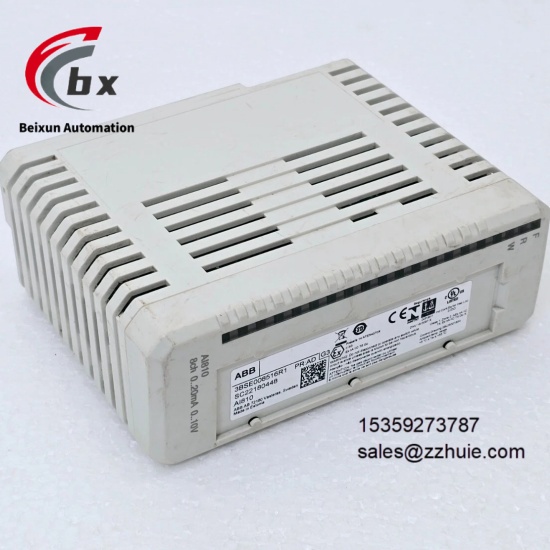

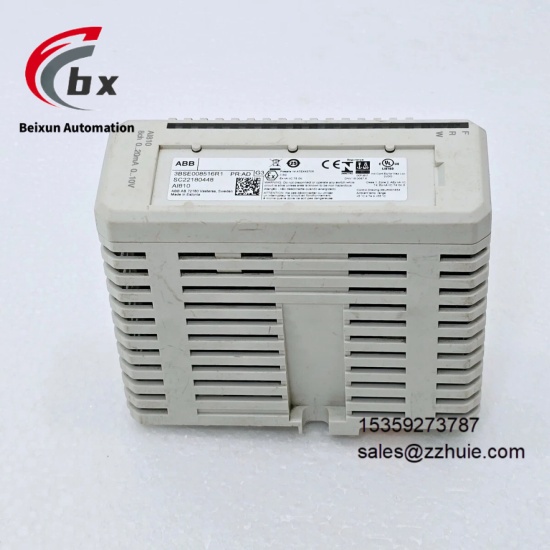

ABB AI810 3BSE008516R1 Analog input module
SPECIFIC PARAMETERS
Brand ABB
Product Series Symphony Harmony Series Analog Input Modules
Product Type 8-channel Isolated Analog Input Module
Model AI810 3BSE008516R1
Applicable System ABB Symphony Harmony DCS System
Channel Configuration 8 independent analog input channels
Input Signal Type 4-20mA DC, 0-20mA DC, 0-10V DC, 1-5V DC
Measurement Accuracy ±0.1% FS (25℃)
Resolution 16-bit
Sampling Rate 50Hz/channel
Electrical Isolation 2500V AC isolation between channels and between channel and system (1 minute)
Working Voltage Powered by system backplane (+5V DC, +24V DC)
Working Temperature 0℃ to 60℃
Storage Temperature -40℃ to 85℃
Relative Humidity 5%-95% Non-condensing
Protection Level IP20 (Module-level)
Installation Method Rail mounting (Symphony Harmony standard rack)
Dimensions 140mm×145mm×70mm (L×W×H)
Weight 0.7kg
Power Consumption Typical 6W Maximum 10W
Certification CE, UL, CSA, IEC 61131-3, EN 61000-6-2
Diagnostic Functions Channel fault self-diagnosis, Signal over-range alarm, Power supply abnormality monitoring, Module communication fault alarm
Anti-interference Level Complies with EN 55011/EN 61000-6-2 industrial EMC standards
MTBF ≥2,000,000 hours
Housing Material Flame-retardant ABS engineering plastic + metal shield
Insulation Resistance ≥100MΩ (500VDC)
PRODUCT PERFORMANCE
8 independent isolated channels design, effectively avoiding signal crosstalk between channels and ensuring signal acquisition accuracy
16-bit high resolution and ±0.1% FS high-precision measurement, which can accurately capture changes of weak analog signals on site
Supports multiple analog input signal types, adapting to various on-site instruments such as temperature transmitters, pressure sensors and flow sensors
High electrical isolation strength of 2500V AC, effectively blocking on-site surges, electromagnetic interference and ground faults from affecting the control system
Working temperature range of 0℃ to 60℃, adapting to normal temperature and humidity working conditions in industrial sites, industrial-grade structure ensuring long-term stable operation
Comprehensive fault self-diagnosis system, which can real-time monitor channel status, signal accuracy and power supply situation, with timely and accurate fault alarms
Deeply compatible with ABB Symphony Harmony DCS system, low signal transmission delay and stable and reliable data interaction
Standard rack mounting design, adapting to system modular integration, convenient and efficient installation and maintenance
High-reliability design with MTBF over 2 million hours, meeting the requirements of long-term continuous operation in industrial sites
Metal shield design further enhances anti-electromagnetic interference ability, adapting to complex industrial electromagnetic environments
