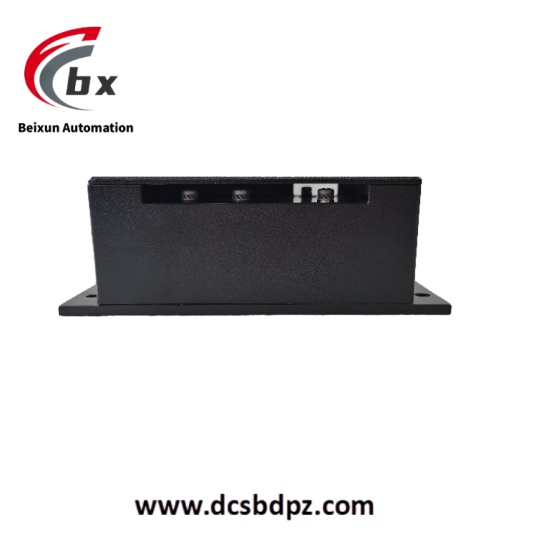

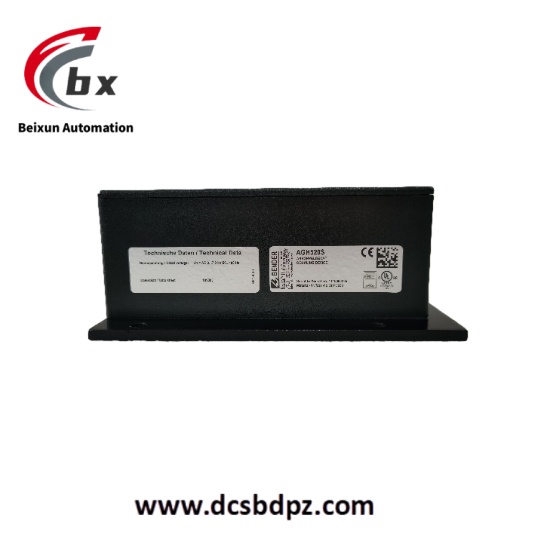

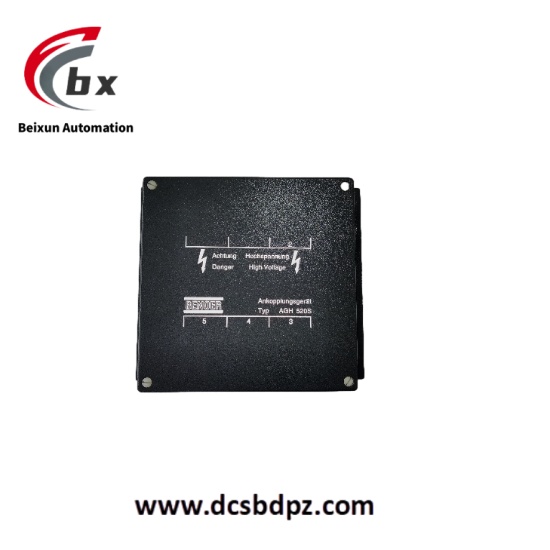

ABB AGH520S 3BHL000986P9000 Dual channel pulse input module
¥50,000.00 Original price was: ¥50,000.00.¥45,000.00Current price is: ¥45,000.00.
The ABB AGH520S 3BHL000986P9000 is a dual-channel pulse input module that undertakes crucial data acquisition and signal processing tasks in industrial automation control systems. Its design focuses on providing precise pulse signal monitoring and conversion functions for equipment in complex industrial environments. The module adopts advanced integrated circuit technology and has high-speed data processing capabilities. It can quickly and accurately capture external pulse signals and convert them into digital signals recognizable by the system, providing a reliable basis for subsequent control decisions. The module has a compact structural design, which is convenient for installation in various control cabinets or equipment, and has good electromagnetic compatibility, which can effectively resist electromagnetic interference in industrial sites and ensure stable and reliable operation.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB AGH520S 3BHL000986P9000 Dual channel pulse input module
Specific Parameters
- Input Channels: Dual-channel design, capable of simultaneously monitoring two independent pulse signal sources.
- Pulse Frequency Range: Supports a wide frequency range of 0 – 500kHz for pulse input, meeting the signal frequency requirements of different devices.
- Signal Types: Compatible with two common industrial pulse signal types, TTL (5V) and HTL (15V).
- Power Supply Voltage: The rated operating voltage is DC 24V, and the allowable voltage fluctuation range is ±10%, suitable for industrial standard DC power supplies.
- Protection Level: The protection level reaches IP20, which can effectively prevent dust in general indoor industrial environments.
- Overall Dimensions: 100mm in length, 80mm in width, and 50mm in height. The compact size is convenient for installation and layout.
- Weight: Approximately 0.3kg. The light weight is convenient for equipment integration and handling.
Product Performance
- High-Speed Data Acquisition: It can acquire pulse signals at a very high speed, ensuring real-time monitoring of rapidly changing signals. The signal response time is less than 10μs, meeting the monitoring needs of high-speed rotating equipment.
- High-Precision Measurement: The measurement accuracy of pulse signals is as high as ±0.01%, which can accurately measure parameters such as the frequency and period of pulses, providing a data basis for precise control.
- Strong Anti-Interference Ability: It is equipped with multiple anti-interference circuits and has passed strict electromagnetic compatibility tests. It can operate stably in strong electromagnetic interference environments, effectively reducing the signal misjudgment rate.
- High Stability: It is manufactured using high-quality electronic components and has undergone long-term aging tests. The Mean Time Between Failures (MTBF) exceeds 50,000 hours, ensuring the long-term stable operation of industrial systems.
