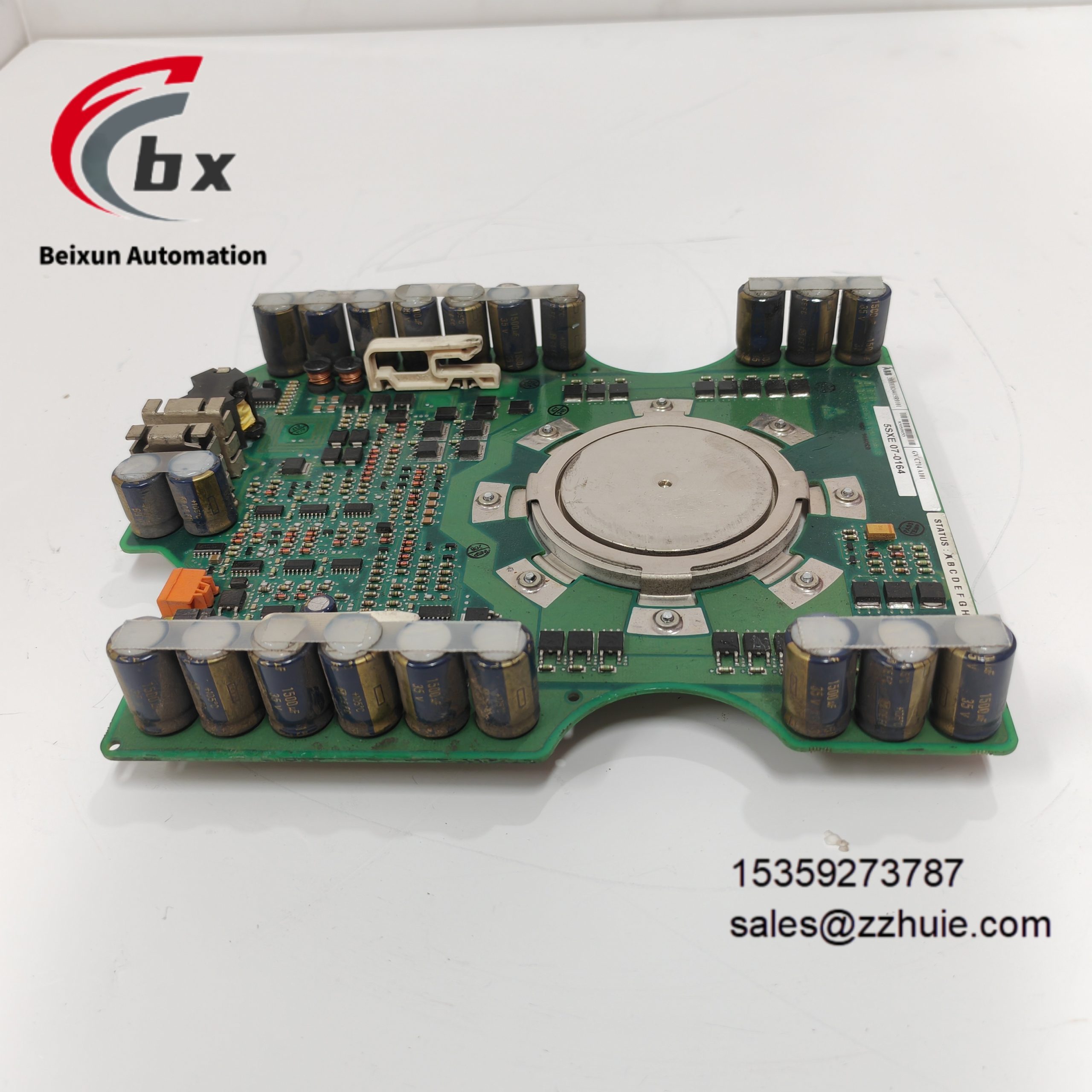

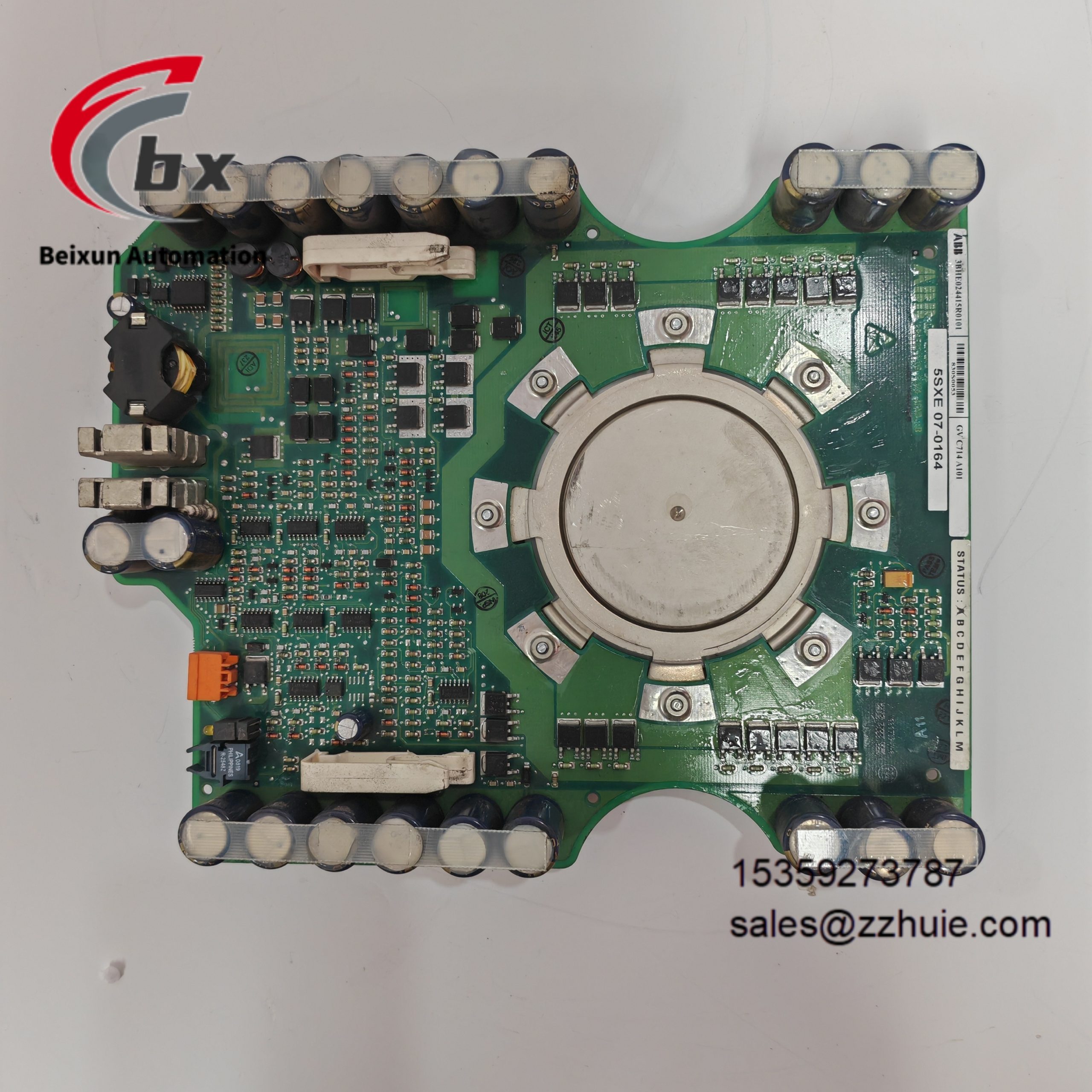

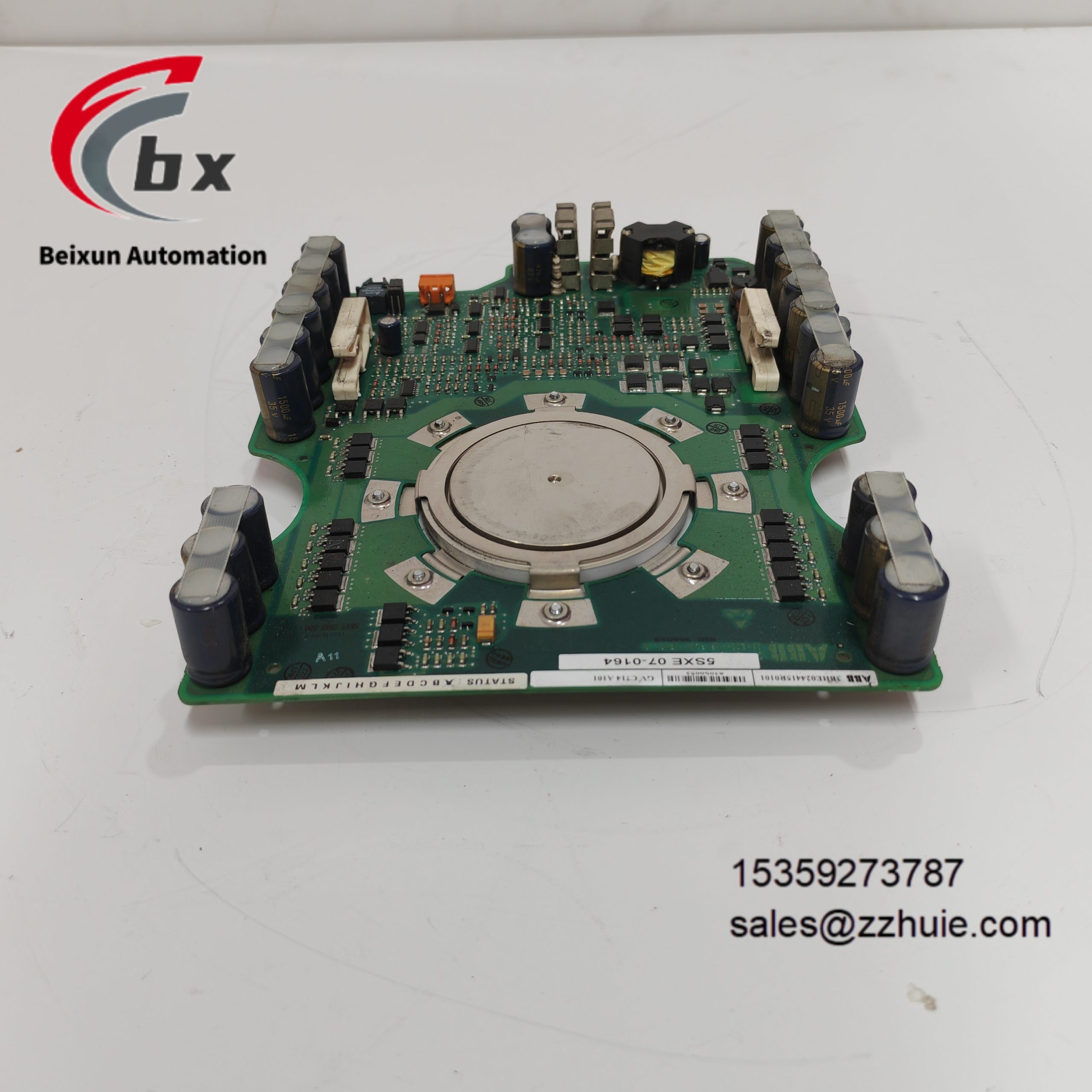

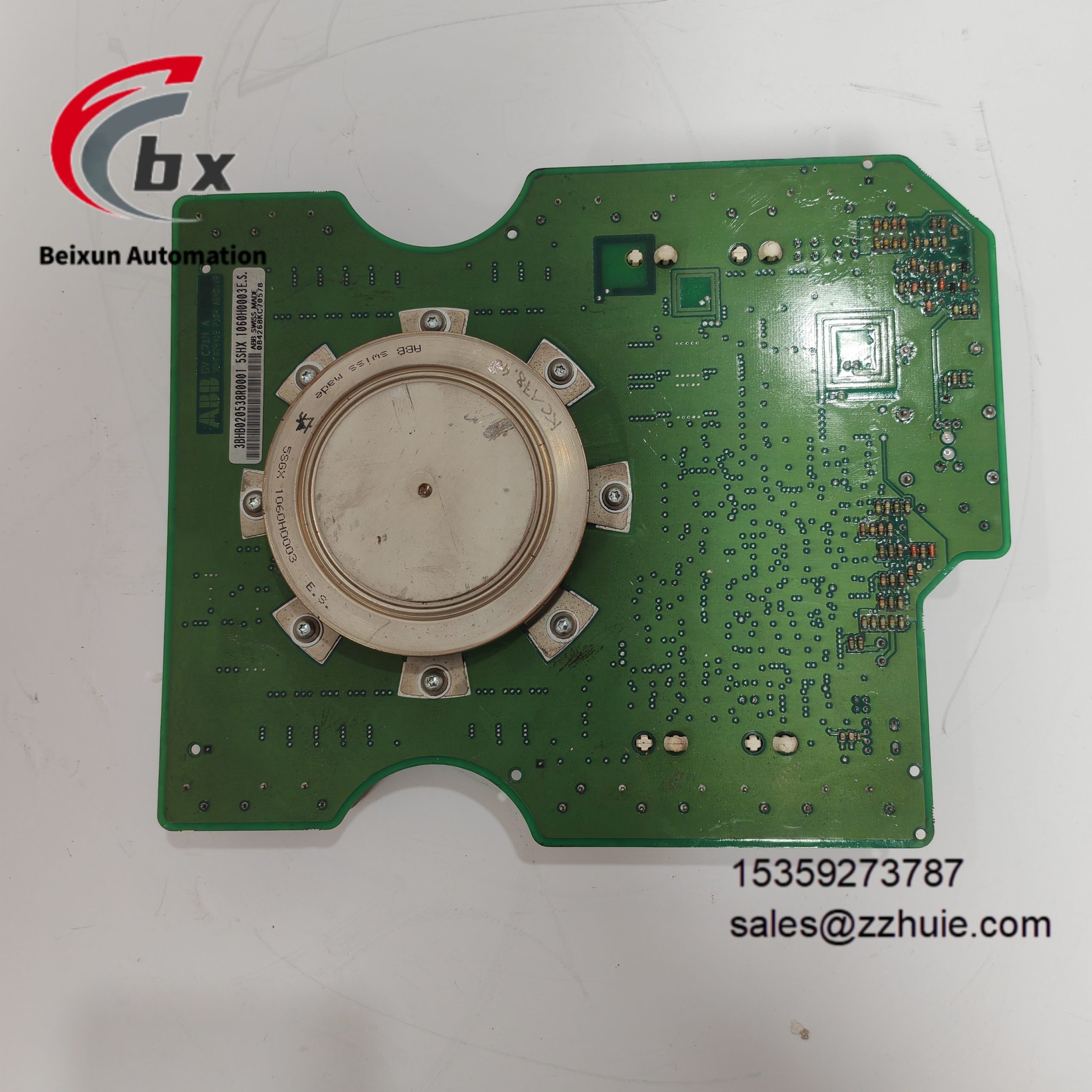

ABB 5SGX1060H0003 Thyristor (IGCT) module

Specific Parameters

Brand ABB (Switzerland)

Product Series High-Voltage Power Electronic Device Series

Product Type Industrial-Grade Integrated Gate Commutated Thyristor (IGCT) Module

Model ABB 5SGX1060H0003

Country of Origin Switzerland

Compatible Devices 5SHX1060H0003 RC-IGCT Power Devices, ABB ACS Series Frequency Converters, Power Electronic Control Equipment

Rated Voltage 1060V (Main Circuit), 24VDC (Control Circuit)

Rated Current 600A (Single-Phase)

Switching Frequency Up to 2kHz (Typical Value)

Conduction Loss ≤1.8W (Typical Value)

Shutdown Loss ≤1.8W (Typical Value)

Shutdown Time 100 Microseconds

Communication Interfaces Ethernet/IP, Modbus TCP/IP, RS485, Fiber Optic Control Interface

Protection Type Overcurrent Protection, Overvoltage Protection, Electromagnetic Interference Protection

Operating Temperature Range -20℃ to 70℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Level IP20

Physical Dimensions 150mm×100mm×50mm (Length×Width×Height)

Physical Weight Approximately 0.8kg

Mounting Method Standard DIN Rail Mounting, Panel Mounting

Special Functions Fault Diagnosis, LED Status Indication, Bufferless Shutdown, Firmware Upgradable

Product Material Industrial-Grade Flame-Retardant Material

Customizable No

Certification Standards CE, EMC

Warranty Period 12 Months

Product Performance

Compatible with RC-IGCT power devices and ABB series frequency converters, powered by 24VDC control circuit, with excellent switching characteristics, it can quickly realize current commutation and switching control, and can be quickly replaced as a spare part to ensure system continuity.

With rated voltage of 1060V and rated current of 600A, it has low loss and high switching frequency, precise control, and bufferless shutdown design, which simplifies system layout and improves operation efficiency.

Integrated with multiple protection mechanisms and fiber optic transmission trigger signals, it has strong anti-electromagnetic interference ability, can effectively prevent module damage, complies with international certification standards, and runs safely and reliably.

With protection level of IP20, strong adaptability to wide temperature environment, strong structure of flame-retardant material, it can operate stably in harsh industrial scenarios, with convenient installation and maintenance and strong versatility.
