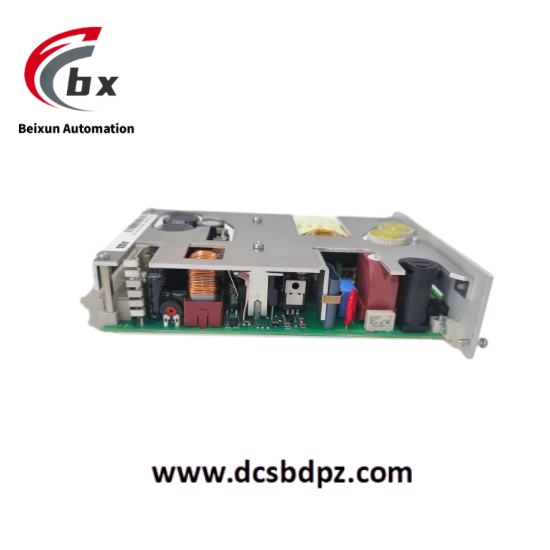

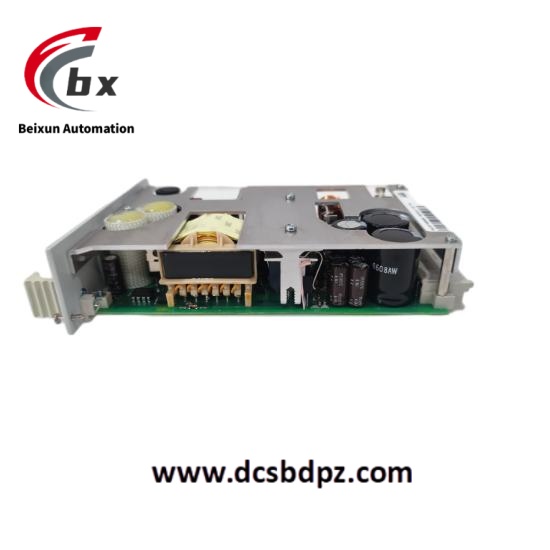

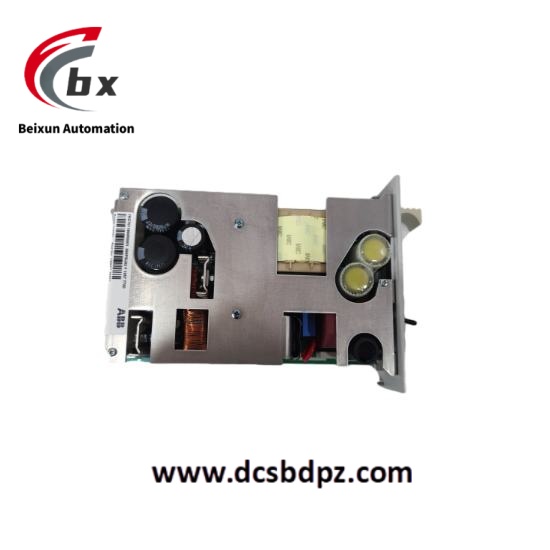

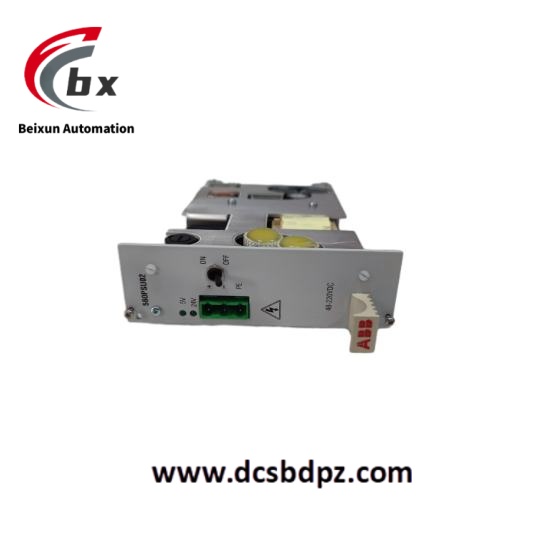

ABB 560PSU02 1KGT011900R0001 power supply

Input Voltage: It supports a wide – range of AC input, with a voltage range of 85 – 264V AC, 50/60Hz. It can adapt to grid voltage fluctuations in different regions and scenarios, ensuring the power supply operates normally under various power supply conditions.

Output Voltage: The output DC voltage is 24V DC, and the output voltage accuracy can reach ±1%, providing stable and precise power output for load devices and meeting the strict requirements of devices for power supply quality.

Output Current: The rated output current is 20A, which can meet the power consumption needs of most medium – and low – power industrial devices. It can withstand a peak current of up to 25A in a short time, coping with the instant high – current conditions such as device startup.

Power: The rated output power is 480W, providing sufficient power guarantee for the stable operation of devices.

Efficiency: The power conversion efficiency is over 90%, effectively reducing power consumption, decreasing operating costs, and at the same time, reducing the heat generation of the power supply itself and improving operation stability.

Operating Temperature: The operating temperature range is -20℃ – 70℃. It can operate reliably in harsh environments such as high and low temperatures, ensuring stable power supply in different industrial scenarios.

Protection Level: The protection level is IP20, which can prevent solid foreign objects with a diameter greater than 12mm from entering. It is suitable for most conventional industrial environments and provides basic protection for internal circuits.

Dimensions: The product size is 150mm×100mm×50mm. The compact design facilitates installation and layout in industrial control cabinets, equipment racks, and other spaces, saving installation space.

Stable and Reliable Power Supply: The advanced voltage regulation technology and filter circuit design ensure that the output voltage remains highly stable under wide – range input voltage fluctuations and load changes. It effectively suppresses voltage ripple, providing pure and stable power for sensitive industrial electronic devices, ensuring the normal operation of devices and reducing device failures and malfunctions caused by unstable voltage.

High Efficiency and Energy Conservation: With a conversion efficiency of over 90%, it reduces power loss during the conversion process and lowers the electricity costs of enterprises. Meanwhile, the lower energy consumption reduces the heat generation of the power supply itself, extends the service life of internal components of the power supply, improves the reliability and stability of the power supply, and reduces the frequency and cost of maintenance.

Strong Environmental Adaptability: The wide operating temperature range of -20℃ – 70℃ and the IP20 protection level enable this power supply unit to adapt to various complex industrial environments, including high – temperature workshops, low – temperature storage facilities, and dusty factories. Under harsh environmental conditions, it can still maintain stable performance, ensuring continuous and stable power supply for devices and improving the reliability and continuity of the production system.

Intelligent Protection Functions: It integrates over – current, over – voltage, over – load, short – circuit, and over – heat protection functions. When abnormal situations occur, the protection mechanism activates quickly, cutting off the power output to prevent the expansion of faults, effectively protecting the power supply itself and the connected load devices, and avoiding device damage and production accidents caused by power failures, improving system safety.

Convenient Installation and Maintenance: The compact size design and standard installation interfaces make it easy to install in various industrial devices and control cabinets. Meanwhile, the modular design enables quick replacement and repair in case of failures, reducing downtime and improving production efficiency.

Manufacturing Industry: Used for powering automated production lines, CNC machine tools, industrial robots, and other equipment, ensuring the stable operation of production equipment and improving production efficiency and product quality.

Power Industry: Suitable for powering power monitoring systems, relay protection devices, and other equipment, ensuring the reliable operation of power system monitoring and control equipment and safeguarding the safe and stable operation of the power grid.

Transportation: Can be applied to the power supply of rail transit signal systems, airport ground equipment, port cranes, and other equipment, ensuring the normal operation of transportation equipment and enhancing the safety and efficiency of transportation.

Building Automation: Provides stable power for building access control systems, monitoring equipment, intelligent lighting systems, etc., helping to create an intelligent and efficient building environment.

Communication Industry: Used for powering communication base stations, computer room equipment, etc., ensuring the stable operation of communication equipment and the stable signal and reliable transmission of communication networks.
