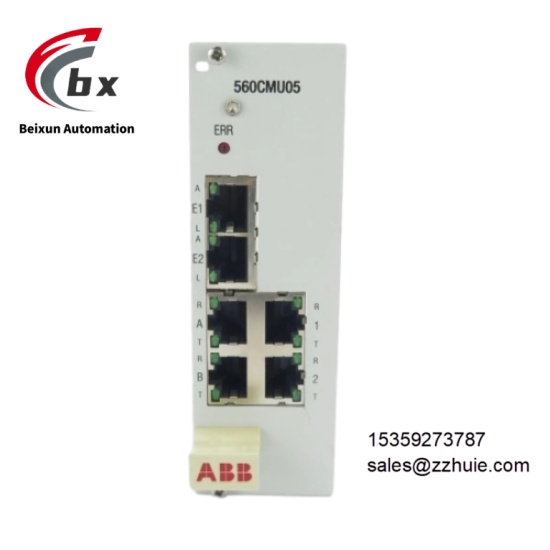

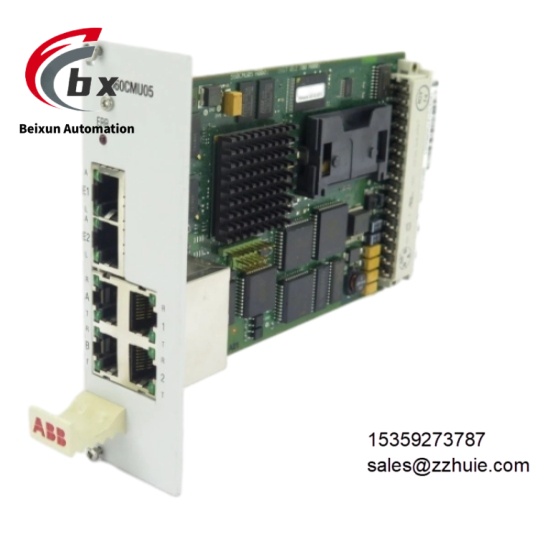

ABB 560CMU05 1KGT012700R0002 Central communication module

ABB 560CMU05 1KGT012700R0002 Central communication module

Specific Parameters

Brand ABB (Switzerland)

Product Series RTU560 Series Remote Terminal Unit Module Series

Product Type Industrial-Grade Central Communication Module, RTU Core Module, Industrial Communication Spare Part Module

Model ABB 560CMU05 1KGT012700R0002

Country of Origin Switzerland

Compatible Devices ABB RTU560 Series Remote Terminal Unit Systems, SCADA Monitoring Systems, PLC/DCS Systems, Industrial Sensors, Actuators, Remote Control Terminals

Processor 32-bit Microprocessor

Operating Power Supply 24VDC (Input Voltage Range 24VDC±20%)

Rated Power Consumption ≤10W

Input and Output 32 Digital Input Channels, 16 Relay Output Channels; Support 4-20mA Current Signal, 0-10V Voltage Signal Input (Optional Expansion Module)

Input Type Single-Ended and Differential

Output Type Relay, Output Capacity AC 250V/10A, DC 30V/10A

Processing Speed 550μs

Program Capacity 300

Data Capacity 200

Communication Protocols Modbus RTU, IEC 60870-5-101/104, Profibus DP Industrial Communication Protocols

Communication Interfaces 4 Serial Communication Interfaces (RS-232 or RS-485), 2 Ethernet Interfaces (10/100Base-T), 4 USB Interfaces, 1 VGA Interface

Communication Rate RS-232/RS-485: 9600-115200 bps; Ethernet: 10/100Base-T

Protection Type Overvoltage Protection, Overcurrent Protection, Undervoltage Protection, Electromagnetic Interference Protection, Photoelectric Isolation Protection (3000V AC/1 Minute)

Operating Temperature Range -20℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Level IP20

Physical Dimensions 203mm×140mm×58mm (Length×Width×Height)

Physical Weight Approximately 1kg

Mounting Method Dedicated Slot Mounting for RTU560 Module Rack (Occupying 2 Slots), Standard DIN Rail Mounting

Special Functions LED Status Indication, Fault Diagnosis, Remote Data Acquisition, Real-Time Communication, Power Failure Data Protection (Flash Memory), Plug and Play

Product Material Aluminum Alloy

Customizable No

Certification Standards IEC 60870-5-101/104, CE, EMC

Warranty Period 12 Months

Product Performance

Compatible with ABB RTU560 series and SCADA monitoring systems, powered by 24VDC wide voltage, with a rated power consumption of ≤10W, it is energy-saving and efficient, can meet the 24-hour uninterrupted operation needs of remote monitoring scenarios, and the spare part replacement is convenient to ensure the continuity of data transmission and control.

Equipped with a 32-bit microprocessor, the processing speed reaches 550μs, with sufficient input and output channels, it can accurately complete sensor signal acquisition and actuator drive, and supports expansion modules to access analog quantities to meet diverse remote control needs.

Integrated with rich communication interfaces and protocols, it can seamlessly connect to various industrial systems, realize real-time remote data transmission and remote diagnosis, with strong communication stability and excellent anti-electromagnetic interference ability.

It has multiple safety protection and 3000V AC photoelectric isolation functions, complies with international certification standards, can effectively prevent module damage and signal false triggering, and runs safely and reliably.

Reinforced packaging with aluminum alloy material, protection level IP20, strong adaptability to wide temperature environment, can operate stably in harsh industrial scenarios for a long time, integrated with complete fault diagnosis functions, with high operation and maintenance efficiency.
