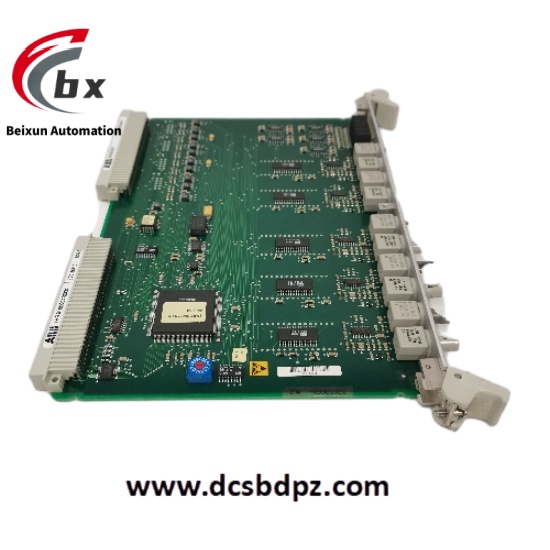

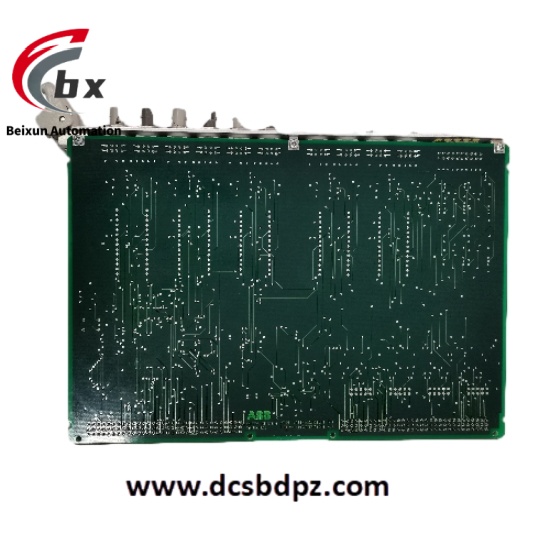

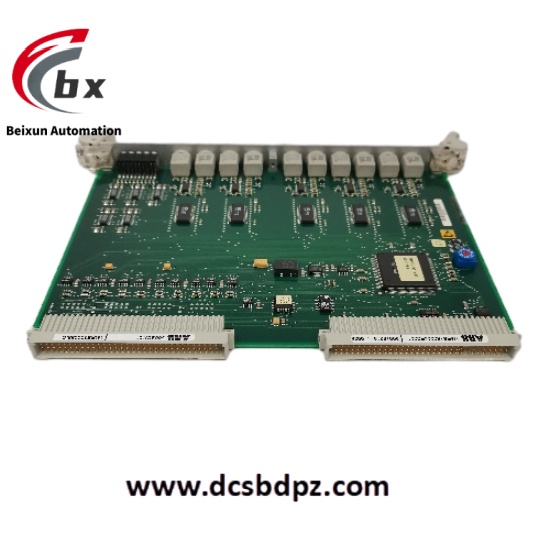

ABB 500SCM01 1MRB150004R0001 1MRB200059-C Signal conditioner module
The ABB 500SCM01 1MRB150004R0001 1MRB200059 - C is a signal conditioner and one of a series of products composed of 12 different modules. This module is versatile. It can be flexibly configured according to actual needs or used as a dedicated module. It supports various signal types such as current, voltage, HART protocol, RTD, and thermocouple. Its configuration forms are rich, covering splitters, single - channel, multi - channel, repeaters, and loop - powered modules, which can fully meet the signal processing requirements in different industrial scenarios.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB 500SCM01 1MRB150004R0001 1MRB200059-C Signal conditioner module
Specific Parameters
- Operating Voltage: 380V AC
- Power: 1.5 kW
- Current: 2.8A
- Signal Accuracy: Less than 0.1% of full – scale value
- Isolation Voltage: Achieves 2.5kV safe operation through three – way isolation
- Communication Interfaces: Supports Ethernet TCP/IP and serial (RS232/RS422/RS485) communication
- Programming Method: Configurable modules are programmed through DIP switches (for current, voltage, and temperature signals) and/or FDT/DTM software (only for temperature signals)
Product Performance
- High – Precision Signal Processing: With a signal accuracy of less than 0.1% of the full – scale value, it can accurately process various input signals, providing reliable data support for subsequent control systems and ensuring the accuracy of measurement and control.
- High Safety: Through a three – way 2.5kV isolation design, it can effectively prevent electrical interference and fault conduction between different circuits, achieving safe operation. At the same time, a built – in potentiometer is used for zero – point and range adjustment, which is convenient for calibrating signals and improving measurement accuracy.
- Powerful Communication Capability: Supports Ethernet TCP/IP and serial (such as RS232/RS422/RS485) communication, as well as Modicon Modbus protocol (through serial communication), Modbus/TCP protocol (a variant of serial Modbus for TCP/IP Ethernet communication), and proprietary Bently Nevada protocol (for communication with 3500 rack equipment and data acquisition program packages), enabling efficient data interaction with a variety of devices and systems.
- Flexible Configuration: The module can be programmed through DIP switches and specific software to achieve a variety of signal combinations, adapting to different signal inputs and application scenarios and meeting diverse industrial automation requirements.
