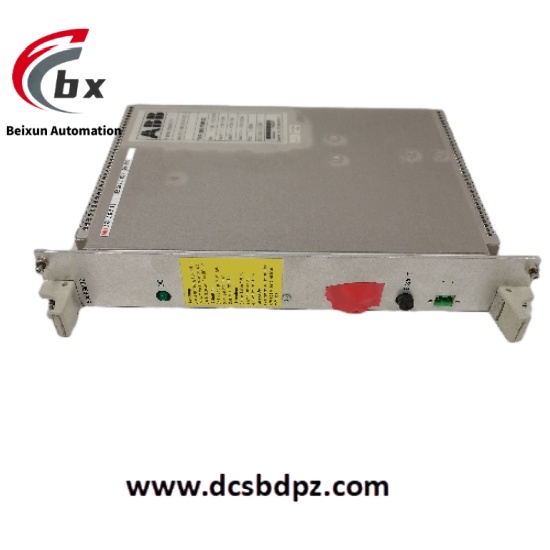

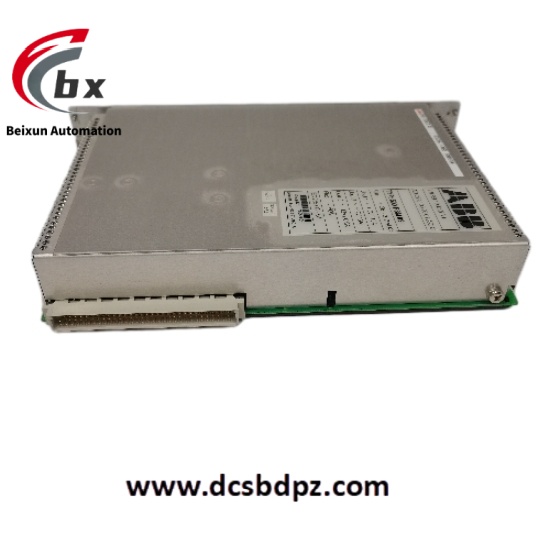

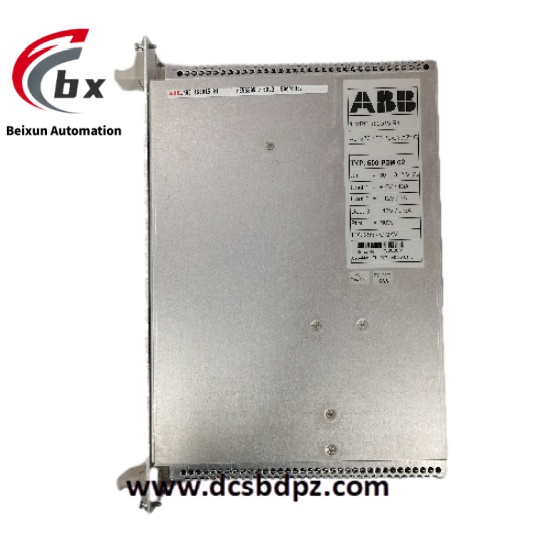

ABB 500PSM02 1MRB150015R1 AD-272.100.20-01 AZ-C Power supply module

ABB 500PSM02 1MRB150015R1 AD-272.100.20-01 AZ-C Power supply module

Specific Parameters​

• Input Voltage: 85 – 264V AC​
• Input Frequency: 47 – 63Hz​
• Output Voltage: 24V DC​
• Output Current: Up to 3A maximum​
• Output Power: 72W​
• Efficiency: Up to 88%​
• Dimensions: 125mm (Length) × 80mm (Width) × 50mm (Height)​
• Weight: Approximately 0.5kg​
• Ripple Voltage: Less than 100mVrms​
• Over – current Protection: Available, auto – recoverable​
• Over – voltage Protection: Available, protects the output circuit from excessive voltage​
• Operating Temperature Range: -20°C to +60°C​
• Storage Temperature Range: -40°C to +85°C​

Product Performance​

• High Reliability: Tested to strict industrial standards, it can operate stably in harsh industrial environments, reducing system downtime caused by power failures.​
• High – efficiency and Energy – saving: With an efficiency of up to 88%, it can effectively reduce energy consumption and operational costs.​
• Over – voltage and Over – current Protection: Built – in over – current and over – voltage protection functions protect connected devices from abnormal voltage and current, enhancing system security.​
• Wide Input Voltage Range: It can adapt to an input voltage range of 85 – 264V AC, suitable for power requirements in different regions and application scenarios.​
• Compact Design: Small in size, it is easy to install in control cabinets with limited space, taking up minimal space.
