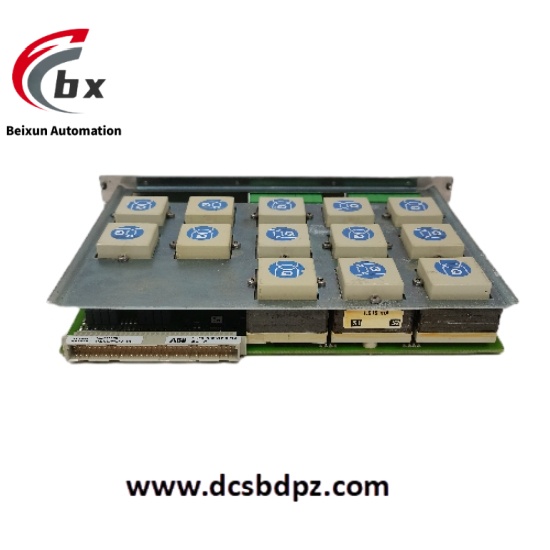

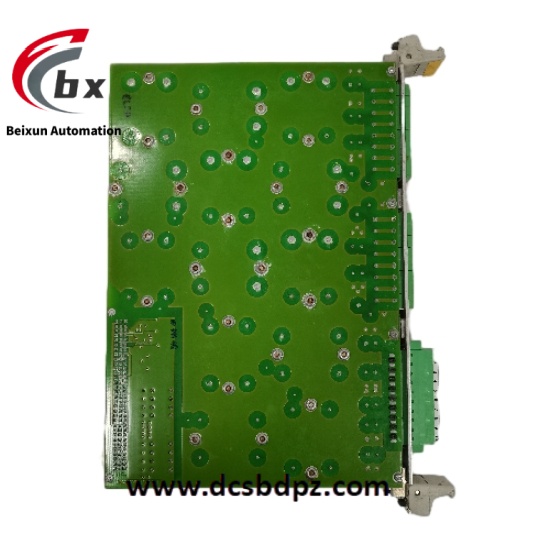

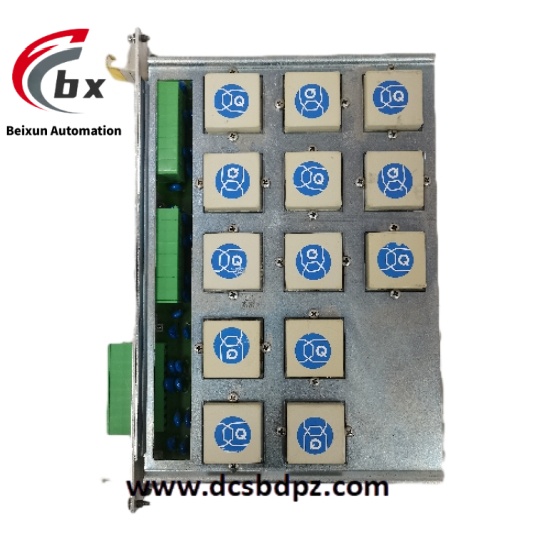

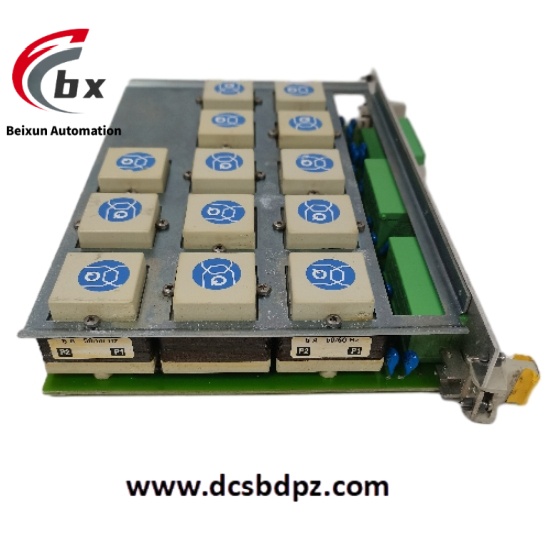

ABB 500MTM02 1MRK001967-AA 1HDF930512X010 Analog input/output hybrid module
The ABB 500MTM02 1MRK001967 - AA 1HDF930512X010 is an analog input/output mixed module used in the industrial automation field. This module can accurately collect and process analog signals, and at the same time achieve analog control output to external devices. It plays a key role in signal conversion and transmission in industrial automation control systems. It can cooperate closely with the ABB AC500 series Programmable Logic Controllers (PLCs) and is widely used in various industrial scenarios with high - precision processing requirements for analog signals.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB 500MTM02 1MRK001967-AA 1HDF930512X010 Analog input/output hybrid module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC
- Current Consumption: Maximum 0.15A
- Analog Input Channels
- Number of Channels: 4
- Input Signal Types: Voltage (such as 0 – 10V, ±10V), Current (such as 4 – 20mA)
- Input Accuracy: ±0.1% of full scale
- Resolution: 16 – bit
- Input Impedance: Greater than 10MΩ for voltage input; Less than 250Ω for current input
- Analog Output Channels
- Number of Channels: 2
- Output Signal Types: Voltage (such as 0 – 10V), Current (such as 4 – 20mA)
- Output Accuracy: ±0.2% of full scale
- Load Capacity: For voltage output, the minimum load resistance is 5kΩ; For current output, the maximum load resistance is 500Ω
- Isolation Characteristics
- Channel – to – channel Isolation: Available, isolation voltage 1000Vrms
- Power Supply and Signal Isolation: Available, isolation voltage 1500Vrms
- Dimensions: 120mm in length, 80mm in width, 60mm in height
- Weight: Approximately 0.4kg
- Operating Temperature Range: -20°C to +60°C
- Storage Temperature Range: -40°C to +85°C
Product Performance
- High – Precision Signal Processing: With 16 – bit resolution and high input and output accuracy, it can accurately collect and output analog signals, meeting the strict requirements for signal accuracy in industrial production and ensuring the stable and reliable operation of the control system.
- Support for Multiple Signal Types: It can adapt to common voltage and current analog signal types, has good versatility, is convenient to connect with different types of sensors, transmitters and actuators, and can be flexibly applied to various industrial automation projects.
- Strong Isolation Performance: The isolation design between channels and between the power supply and signals can effectively resist electrical interference, enhance the anti – interference ability of the module in complex electromagnetic environments, ensure the accuracy and stability of signal transmission, and improve the overall reliability of the system.
- Wide – Temperature – Range Operation: It can operate stably in the temperature range of -20°C to +60°C, adapt to a variety of harsh industrial environments, reduce performance fluctuations caused by changes in ambient temperature, and ensure the continuous normal operation of industrial automation systems.
