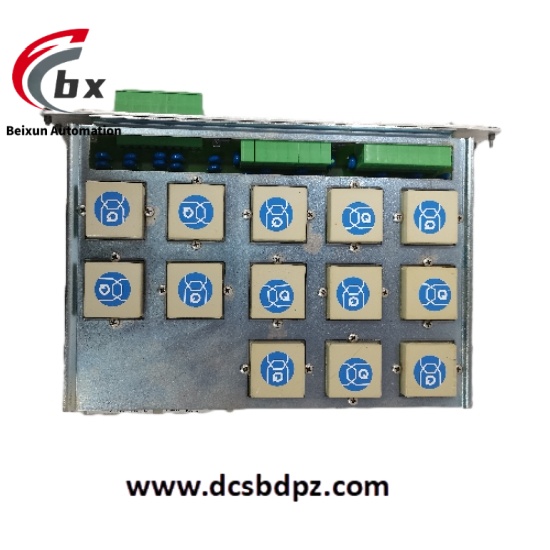

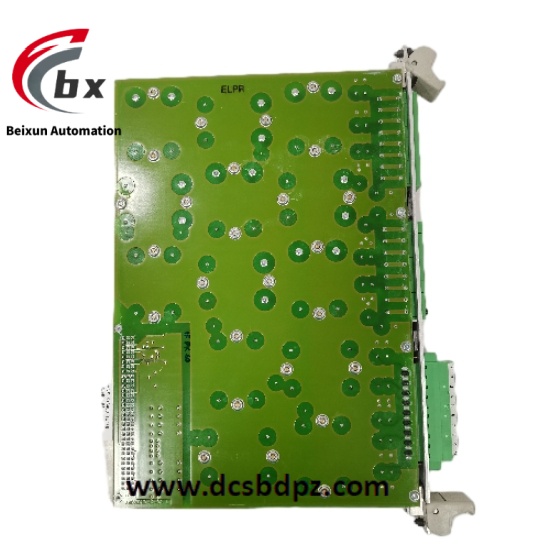

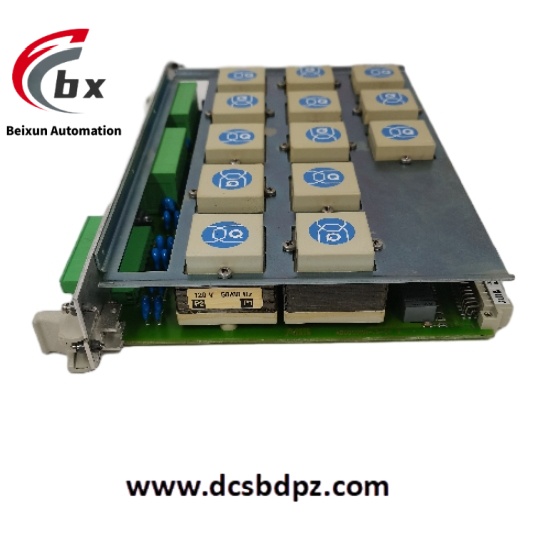

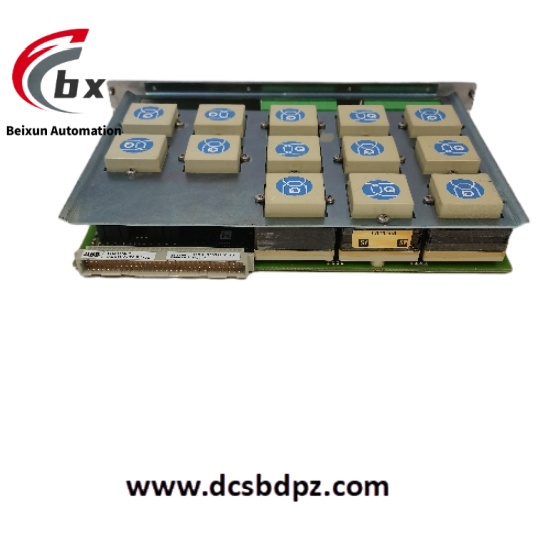

ABB 500MTM02 1MRB150020R1102 1HDF930512X010 Analog Output Module
ABB 500MTM02 1MRB150020R1102 1HDF930512X010 is a high-performance analog output module designed specifically for industrial automation control systems. Its core function is to receive digital control signals from Programmable Logic Controllers (PLCs), accurately convert them into standard analog signals (voltage or current), and then drive various actuators such as electric control valves, proportional valves, and servo drives. It realizes continuous and precise regulation of key parameters like temperature, pressure, flow, and liquid level in industrial production processes, serving as a core connecting component between digital control systems and analog actuators.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB 500MTM02 1MRB150020R1102 1HDF930512X010 Analog Output Module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC (±10%)
- Current Consumption: Maximum 0.18A (when powered by 24V DC)
- Analog Output Channels
- Number of Channels: 4 independent channels
- Output Signal Types: Configurable as voltage (0-10V DC, 1-5V DC, ±5V DC, ±10V DC) or current (4-20mA DC, 0-20mA DC)
- Output Accuracy: ±0.05% of full scale (at 25°C reference temperature)
- Resolution: 16-bit (±32768)
- Output Load: Minimum load 10kΩ for voltage output; maximum load 600Ω for current output
- Temperature Drift: ≤20ppm/°C (relative to full scale)
- Response Time: ≤50μs (from digital signal input to output reaching 99% of final value)
- Isolation Characteristics
- Inter-channel Isolation: Optically isolated, isolation voltage 1000Vrms
- Power Supply and Output Isolation: Optically isolated, isolation voltage 2500Vrms
- Physical Parameters
- Dimensions: 112mm (length) × 82mm (width) × 66mm (height)
- Weight: Approximately 0.3kg
- Environmental Parameters
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing, compliant with IEC 60068-2-3)
- Vibration Resistance: 10-500Hz, acceleration 10g, three axes (compliant with IEC 60068-2-6)
Product Performance
- Ultra-High Precision Conversion: With output accuracy of ±0.05% of full scale, 16-bit high resolution, and temperature drift as low as 20ppm/°C, it ensures the stability and accuracy of output signals within a wide temperature range. It can meet strict requirements for parameter regulation in precision control scenarios, such as temperature control in semiconductor manufacturing.
- Flexible Signal Configuration: It supports flexible configuration of multiple standard voltage and current signal types, and each channel can be independently set with output type. No additional hardware adjustment is needed to adapt to different types of actuators, greatly improving the module’s versatility and system integration flexibility.
- Enhanced Isolation Protection: The high-voltage isolation design between channels and between power supply and output can not only effectively suppress common-mode and differential-mode interference in industrial environments but also prevent damage to the module and downstream equipment caused by external voltage shocks, ensuring stable operation of the system in complex electromagnetic environments.
- Fast Dynamic Response: A response time of ≤50μs can quickly follow the changes of PLC control commands, ensuring that actuators can make timely action adjustments. It is suitable for closed-loop control scenarios with high dynamic response requirements, such as fast flow regulation systems.
