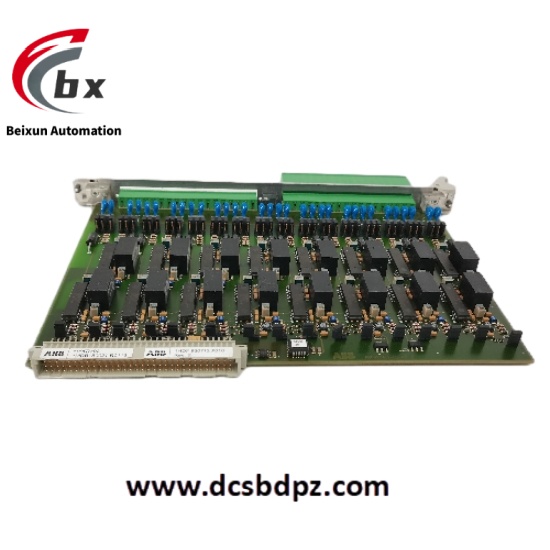

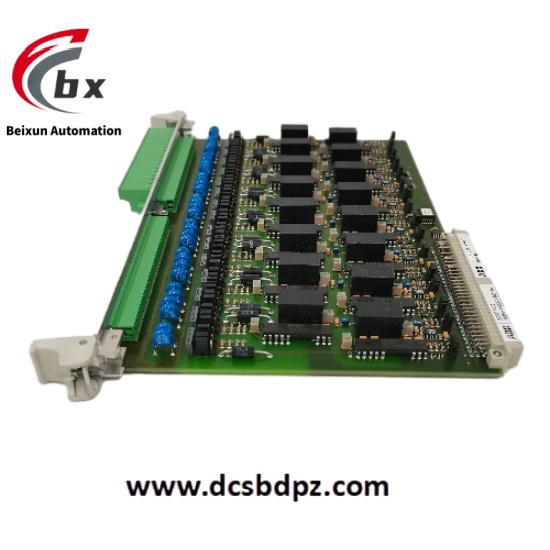

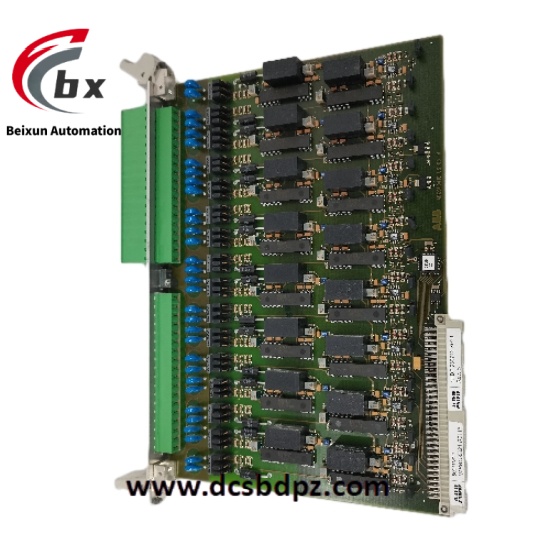

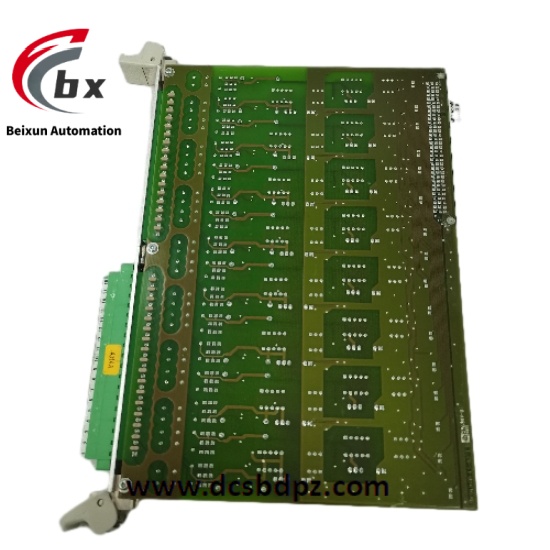

ABB 500ITM02 1MRB150021RO116 1HDF930712X010 Counter/Timer Module
ABB 500ITM02 1MRB150021RO116 1HDF930712X010 is a counter/timer module designed specifically for industrial automation control systems. This module can work independently or in conjunction with Programmable Logic Controllers (PLCs). It can accurately implement counting and timing functions, count pulse signals in industrial production, or trigger specific control actions according to preset time. It provides reliable support for 节拍 control of production lines, equipment operation cycle management, etc., and is a key component for achieving precise timing and quantity control in industrial automation processes.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB 500ITM02 1MRB150021RO116 1HDF930712X010 Counter/Timer Module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC
- Current Consumption: Maximum 0.12A
- Counting Function Parameters
- Number of Counting Channels: 2
- Counting Type: Incremental counting, decremental counting, bidirectional counting switchable
- Counting Range: -2147483648 to +2147483647
- Maximum Counting Frequency: 10kHz
- Input Signal Type: NPN/PNP compatible
- Counting Pulse Width: Minimum 10μs
- Timing Function Parameters
- Number of Timing Channels: 2
- Timing Range: 0.001s to 9999h59m59s
- Timing Accuracy: ±0.1% (at 25°C)
- Timing Mode: Delay on, delay off, pulse output configurable
- Isolation Characteristics
- Input and Power Supply Isolation: Available, isolation voltage 1000Vrms
- Inter-channel Isolation: Available, isolation voltage 500Vrms
- Physical Parameters
- Dimensions: 105mm in length, 80mm in width, 62mm in height
- Weight: Approximately 0.22kg
- Environmental Parameters
- Operating Temperature Range: -20°C to +60°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
Product Performance
- High-Precision Counting and Timing: With a counting frequency of up to 10kHz and timing accuracy of ±0.1%, it can accurately capture high-frequency pulse signals and control time nodes. It meets the strict precision requirements for quantity statistics and timing control in industrial production, ensuring the consistency of production beats and the accuracy of equipment actions.
- Multi-Functional Mode Adaptation: It supports flexible switching of counting types and timing modes, and can adjust working modes according to different production scenarios. It adapts to diverse control needs, and can cope with multiple counting and timing scenarios without additional modules, improving the flexibility of system configuration.
- Strong Anti-Interference Ability: The dual isolation design between input and power supply, and between channels, effectively resists electromagnetic interference in industrial environments, avoids misreading of pulse signals or timing deviations, ensures stable operation in complex electromagnetic environments, and reduces control errors caused by interference.
- Wide Environmental Adaptability: It operates stably in the temperature range of -20°C to +60°C and a wide humidity range, adapting to various harsh industrial environments such as high and low temperatures. It can work reliably without additional temperature control equipment, reducing system maintenance costs.
