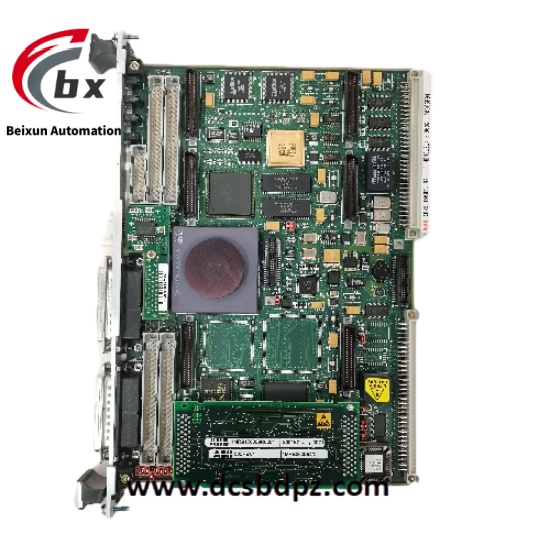

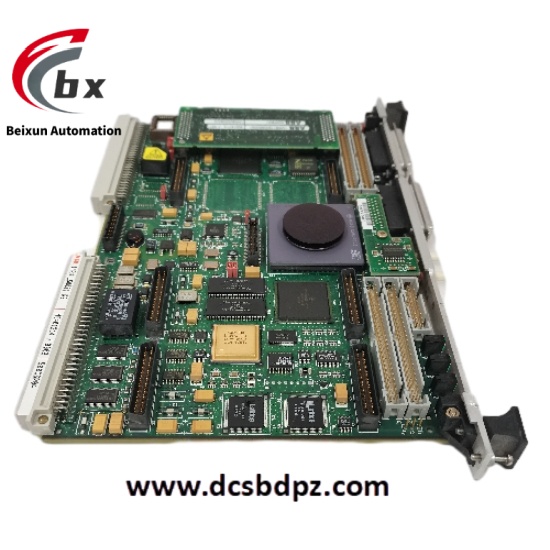

ABB 500CSP04 HE4013140002 1MRB150051R2 +500PB101 1MRB178009R0001 1MRB200064C Communication processor module+power module

Specific Parameters

ABB 500CSP04 HE4013140002 1MRB150051R2

Power Supply Parameters
Supply Voltage: 24V DC
Current Consumption: The maximum current consumption of the module itself is 0.05A
Communication Interfaces
Interface Type: Equipped with an RS-485 interface, compliant with relevant industrial communication standards, and is an electrically isolated interface
Communication Protocols: Supports the Modbus RTU protocol and can also support the PROFIBUS DP protocol through configuration
Transmission Rate: Supports a variety of standard rates in the range of 9.6 kbit/s to 115.2 kbit/s
Communication Capabilities
Maximum Number of Connected Slaves: Depending on different protocols, up to 247 slaves can be connected under Modbus RTU; 125 slaves can be connected under PROFIBUS DP
Data Transmission Throughput: At the highest transmission rate, a large number of data frames can be transmitted per second. The specific data volume depends on the protocol and data frame format
Communication Delay: In typical application scenarios, the data transmission delay is extremely small, which can meet the real-time requirements of most industrial automation
Memory Parameters
Internal Random-Access Memory (RAM) for data caching and protocol processing: 4 MB
Flash Memory for storing communication configuration parameters and other information: 2 MB
Physical Characteristics
Dimensions: 100mm in length, 80mm in width, 60mm in height
Weight: Approximately 0.12kg
Operating Environment Parameters
Operating Temperature Range: -20°C to +60°C
Storage Temperature Range: -40°C to +85°C

ABB 500PB101 1MRB178009R0001 1MRB200064C

Input Parameters
Input Voltage Range: Can access alternating current from 100V AC to 240V AC, covering common industrial and commercial power supply voltage ranges
Input Frequency: Supports standard mains frequencies of 50Hz or 60Hz
Output Parameters
Output Voltage: Stably outputs 24V DC, and the output voltage accuracy can reach ±1%
Output Current: The maximum output current is 5A, which can meet the power supply requirements of a variety of industrial automation devices
Efficiency Parameters
Under rated load, the power conversion efficiency is as high as over 90%, effectively reducing energy consumption
Physical Characteristics
Dimensions: 120mm in length, 80mm in width, 60mm in height
Weight: Approximately 0.25kg
Operating Environment Parameters
Operating Temperature Range: -10°C to +55°C
Storage Temperature Range: -25°C to +70°C
Relative Humidity: In the range of 5% to 95% without condensation

Product Performance

ABB 500CSP04 HE4013140002 1MRB150051R2

Multi-Protocol Communication Support: With support for multiple industrial communication protocols such as Modbus and PROFIBUS, it can achieve seamless communication connections with different brands and types of field devices and control systems, greatly enhancing the flexibility and compatibility of system integration. Whether they are traditional industrial automation devices or new-type intelligent sensors and actuators, they can efficiently cooperate with it to meet the communication needs of various complex industrial automation projects.
High-Speed and Stable Data Transmission: Supports a maximum transmission rate of 115.2 kbit/s, ensuring that data can be transmitted quickly and accurately among various devices within the system. At the same time, through electrical isolation design and optimized communication algorithms, this module has excellent anti-interference capabilities. It can effectively resist common interference factors such as electromagnetic interference and power supply fluctuations in the industrial environment, ensuring the stability and accuracy of data transmission, avoiding data loss or bit errors. It can operate stably even in complex industrial electromagnetic environments.
Flexible Communication Configuration: Users can flexibly configure communication protocols, transmission rates, slave addresses and other parameters according to actual application scenarios. This flexibility enables the module to adapt to the diverse communication needs of different industrial automation projects and achieve efficient communication in various complex network topologies.
Wide-Temperature-Range Adaptability: It can work stably in a wide temperature range from -20°C to +60°C, adapting to various harsh industrial environmental temperature conditions. Whether in high-temperature steel-smelting workshops, chemical production sites, or low-temperature cold-storage logistics warehouses, outdoor operation sites, the module’s performance is not significantly affected by changes in ambient temperature, ensuring the continuous and stable operation of industrial automation systems throughout the year.

ABB 500PB101 1MRB178009R0001 1MRB200064C

Stable and Reliable Power Output: Adopting advanced power conversion technology and voltage-stabilizing filtering circuits, it can provide a stable 24V DC power output for devices in the industrial automation system. The output voltage accuracy is high, which can effectively reduce equipment failures caused by power fluctuations, ensure stable operation of various devices in the system, and improve the reliability of the entire industrial automation system.
High Power Conversion Efficiency: Under rated load, the power conversion efficiency is as high as over 90%. Compared with traditional power modules, it can significantly reduce energy consumption and save operating costs for enterprises. At the same time, efficient power conversion can also reduce heat generation, which is beneficial to extending the service life of the power module itself and other devices in the system.
Good Overload Protection Capability: It has a complete overload protection function. When the output current exceeds the maximum rated value, the power module can automatically take protective measures, such as current limiting or output shutdown, to avoid damage to the power module due to overload, and also protect other devices in the system from the impact of excessive current.
Wide Input Voltage Range Adaptability: It can access a wide input voltage range from 100V AC to 240V AC, adapting to the mains voltage in different regions and different application scenarios. This feature makes the power module convenient to use worldwide without additional voltage conversion equipment, reducing the complexity and cost of system integration.
