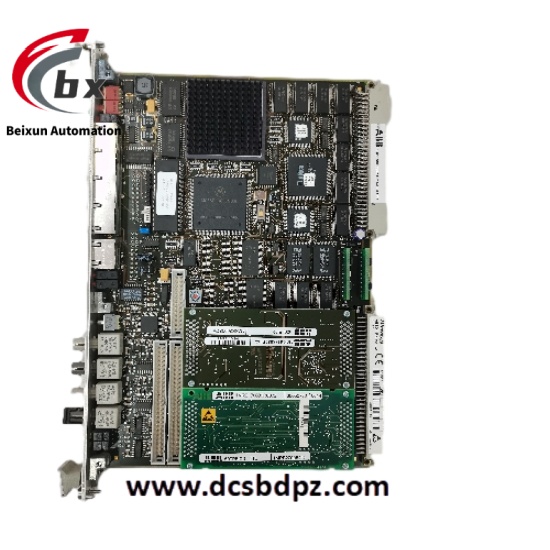

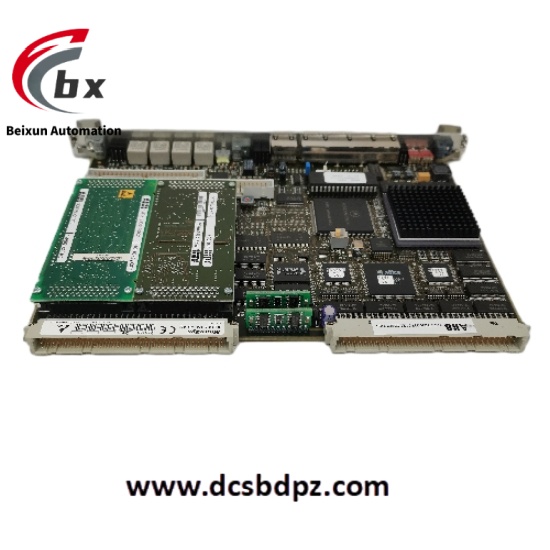

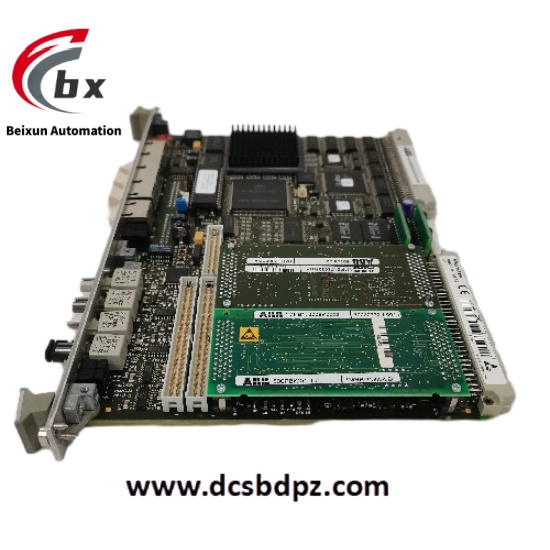

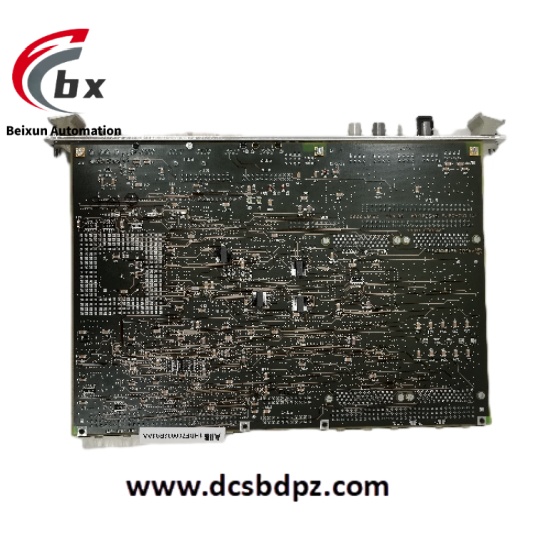

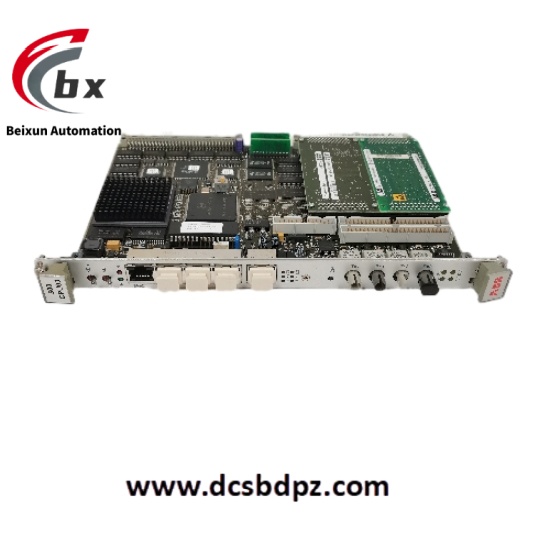

ABB 500CPU03 1HDF700003R5122 Programmable Logic Controller Module
ABB 500CPU03 1HDF700003R5122 is a central processing unit of a high-performance programmable logic controller (PLC), belonging to the ABB AC500 series control system. This unit integrates a high-speed processing core and rich communication interfaces, enabling precise control and real-time data processing of complex industrial processes. It supports a multi-language programming environment and is compatible with IEC 61131-3 standard programming languages, flexibly adapting to automation control needs of different scales, and serves as a core control component in industrial automation systems.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB 500CPU03 1HDF700003R5122 Programmable Logic Controller Module
Specific Parameters
- Processor Frequency：800MHz
- Memory Capacity：1GB RAM, 4GB Flash
- Supply Voltage：24V DC (±10%)
- Power Consumption：≤25W
- Operating Temperature Range：-25°C to +70°C
- Storage Temperature Range：-40°C to +85°C
- Protection Rating：IP20 (rail mounting)
- Communication Interfaces：2 Ethernet ports (supporting Profinet, EtherNet/IP), 2 RS-485 ports (supporting Modbus RTU)
- Digital I/O Expansion Capacity：Up to 32 expansion modules
- Analog I/O Processing Accuracy：16-bit
- Program Execution Speed：Basic instructions ≤0.1μs
- Dimensions (W×H×D)：100mm×120mm×80mm
- Weight：Approximately 0.5kg
Product Performance
- High-Speed Data Processing：Equipped with an 800MHz frequency processor and 1GB large-capacity memory, it features fast program execution speed, can handle multiple tasks simultaneously, and meets real-time control needs in complex industrial scenarios.
- Strong Expansion Capability：Supports multiple types of I/O expansion modules, with a maximum of 32 expansion modules connectable, flexibly expanding system scale according to actual control needs and adapting to different application scenarios.
- Rich Communication Compatibility：Integrates multiple industrial communication interfaces and protocols, enabling seamless connection with HMI, DCS systems and other automation equipment, realizing cross-system data interaction and centralized monitoring.
- High-Stability Design：Wide temperature operating range and IP20 protection rating adapt to complex industrial on-site environments; equipped with power failure detection and program backup functions to ensure continuous and stable operation of the system.
- Safety Compliance：Meets CE, UL, ATEX and other industrial safety certification standards, applicable to automation control scenarios in general industry and some hazardous areas.
