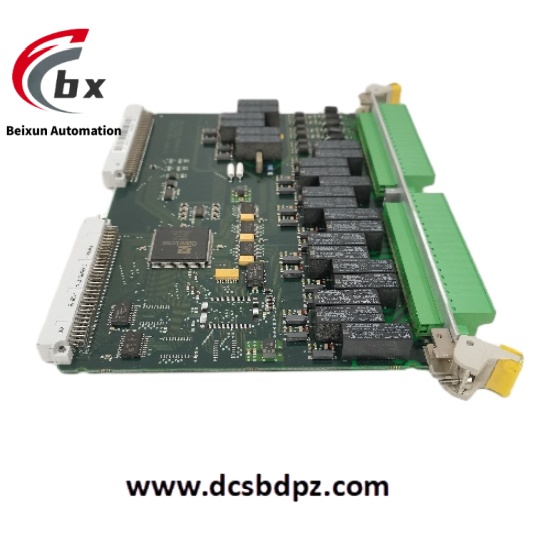

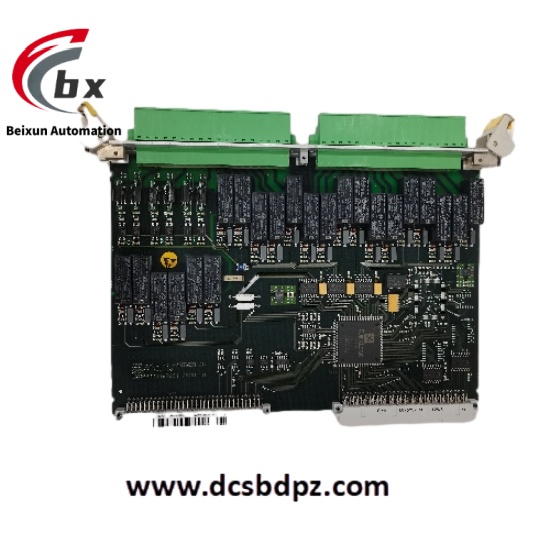

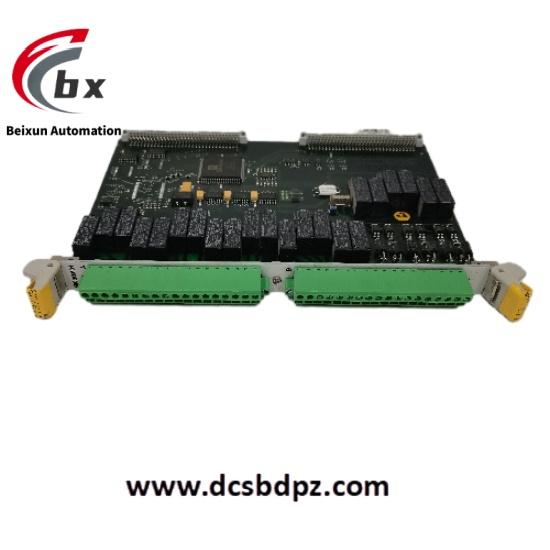

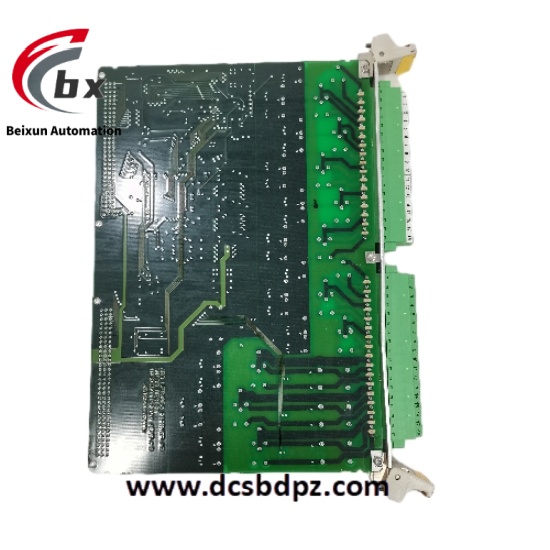

ABB 500BOM01 1MRB150023R0002 digital output module

Specific Parameters

Power Supply Parameters
Supply Voltage: 24V DC
Current Consumption: The maximum current consumption of the module itself is 0.08A
Digital Output Channels
Number of Channels: 8
Output Type: Transistor output (NPN type)
Output Voltage: 24V DC
Output Current (Rated Value, per Channel): 0.5A
Maximum Output Current (Short – Circuit Protection Current): 1A
Output Delay (0→1): The typical value is 1ms
Output Delay (1→0): The typical value is 2ms
Isolation Characteristics
Isolation between Channels: Available, isolation voltage 500Vrms
Isolation between Power Supply and Signals: Available, isolation voltage 1000Vrms
Dimensions: 100mm in length, 80mm in width, 60mm in height
Weight: Approximately 0.28kg
Operating Temperature Range: -20°C to +60°C
Storage Temperature Range: -40°C to +85°C

Product Performance

High – Reliability Output: It adopts a high – quality transistor output circuit design with excellent electrical performance and stability. It can stably output control signals for a long time and drive the actuator devices to operate reliably. Even under frequent signal switching and continuous long – term operation, it can ensure the accuracy and reliability of output, effectively reducing the risk of production interruption caused by output failures.
Fast Response: The output delay time is extremely short, and the response speed from receiving the control signal to performing the output action is fast, which can meet the requirements of industrial automation control scenarios with high real – time requirements. For example, in high – speed production lines, it can quickly respond to changes in equipment status, ensuring the compactness and high efficiency of the production rhythm and improving production efficiency.
Good Load – Driving Ability: Each output channel can provide a sufficient rated output current (0.5A) and has a short – circuit protection current of 1A. It can directly drive various types of load devices, such as small relays, indicator lights, and solenoid valves. There is no need for additional intermediate driving links, which simplifies the system design, reduces costs, and improves the integration and reliability of the system.
Strong Anti – interference Ability: Through the dual – isolation design between channels and between the power supply and signals, it can effectively resist common interference factors such as electromagnetic interference and power supply fluctuations in the industrial environment, ensuring the accuracy and stability of output signals. Even in complex and harsh industrial electromagnetic environments, it can operate stably, avoiding incorrect or misoperated output signals caused by interference and improving the anti – interference performance of the entire automation system.
Wide – Temperature – Range Adaptability: It can operate stably in a wide temperature range from -20°C to +60°C, adapting to various harsh industrial environmental temperature conditions. Whether in high – temperature steel – smelting workshops or low – temperature cold storage warehouses, it can maintain good working performance without being affected by changes in ambient temperature, ensuring the continuous and stable operation of industrial automation systems throughout the year.
