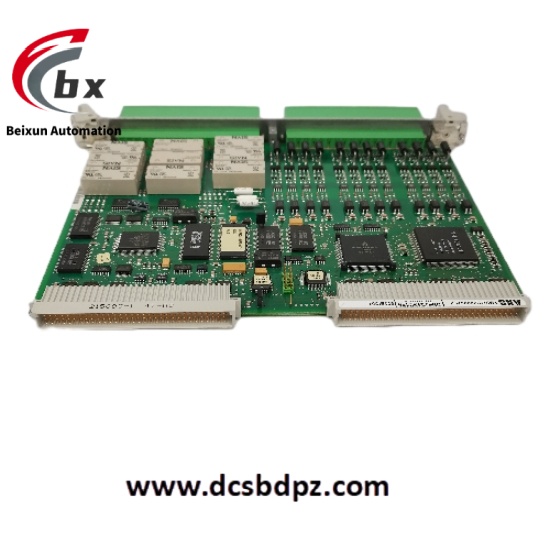

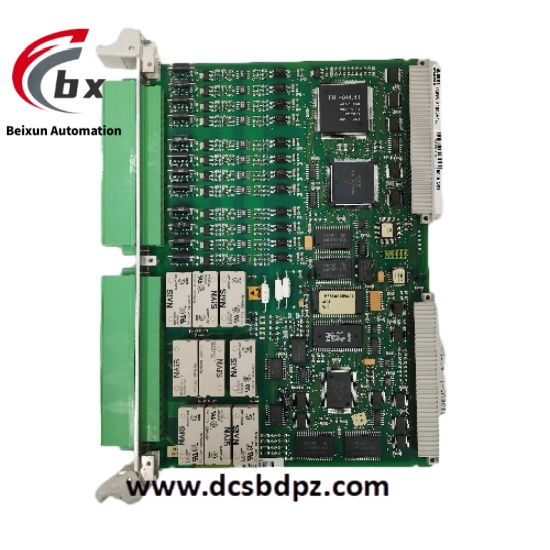

ABB 500BIO01 1MRB150005R1-J Digital input/output module

Specific Parameters

Power Supply Parameters
Supply Voltage: 24V DC
Current Consumption: The maximum current consumption of the module itself is 0.1A
Digital Input Channels
Number of Channels: 9
Input Type: Supports dry contacts and NPN/PNP transistor output types
Input Signal Voltage: Signal 0 corresponds to -3V to +5V; Signal 1 corresponds to +15V to +30V
Input Delay (0→1 or 1→0): The typical value is 6ms and can be configured in the range of 0.1 to 16ms
Input Channel Current: When the input voltage is +24V, the typical value is 5mA
Maximum Cable Length (Shielded): 1000m
Maximum Cable Length (Unshielded): 600m
Digital Output Channels
Number of Channels: 9
Output Type: Relay output
Output Voltage: 250V AC/30V DC
Output Current (Rated Value, per Channel): 2A
Output Delay (0→1 or 1→0): The typical value is 10ms
Isolation Characteristics
Isolation between Input Channels: Available, isolation voltage 500Vrms
Isolation between Output Channels: Available, isolation voltage 500Vrms
Isolation between Power Supply and Signals: Available, isolation voltage 1000Vrms
Dimensions: 120mm in length, 80mm in width, 60mm in height
Weight: Approximately 0.36kg
Operating Temperature Range: -20°C to +60°C
Storage Temperature Range: -40°C to +85°C

Product Performance

High – Precision Signal Collection and Output: In the signal collection process, it can accurately identify on – site digital signals and provide reliable data for the control system, avoiding control deviations caused by signal misjudgment. When outputting control signals, the relay output is stable and reliable, which can accurately drive the actuator, ensuring that industrial production runs stably according to the established program.
Compatibility with Multiple Input and Output Types: It supports dry contacts and NPN/PNP transistor output types for input, and adopts relay output for output. This diversified design greatly improves the versatility of the module, enabling it to seamlessly connect with various industrial – site sensors, switches and actuators. It is suitable for industrial automation projects of different complexities, reducing the difficulty and cost of system integration.
Strong Anti – interference Ability: With multiple isolation designs between input channels, between output channels, and between the power supply and signals, this module can effectively resist common electromagnetic interference in industrial environments, ensure the accuracy of signal transmission, and reduce signal distortion and bit error rate. Even in complex electromagnetic environments, such as near large – scale motors and high – frequency equipment, it can operate stably, improving the anti – interference performance and stability of the entire automation system.
Flexible Delay Configuration: The input delay can be flexibly adjusted in the range of 0.1 to 16ms, which can accurately optimize the signal collection timing according to the response characteristics of devices in different application scenarios. The typical output delay of 10ms can also meet the time – precision requirements of most industrial controls. This flexible delay configuration function can meet diverse industrial control requirements and improve the flexibility and accuracy of system control.
Wide – Temperature – Range Adaptability: It can operate stably in the temperature range of -20°C to +60°C, adapting to a variety of harsh industrial environments. Whether it is a high – temperature steel – smelting workshop or a low – temperature cold – storage logistics warehouse, the module’s performance is not affected by changes in ambient temperature, ensuring the continuous and stable operation of industrial automation systems throughout the year and reducing the risk of failures caused by environmental factors.
