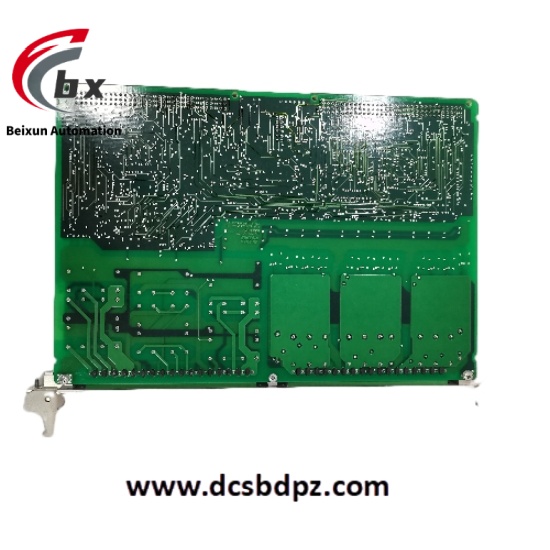

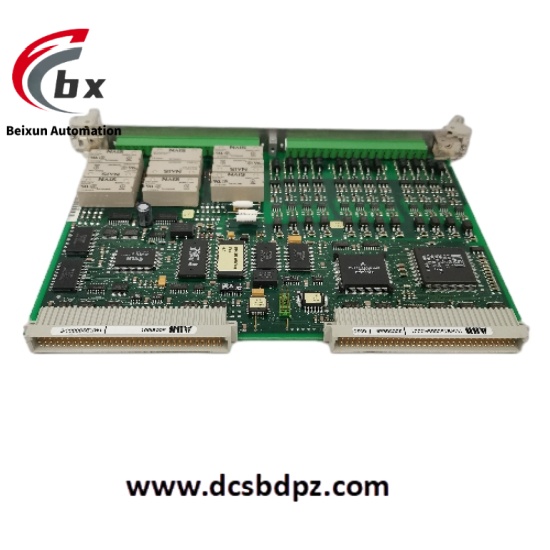

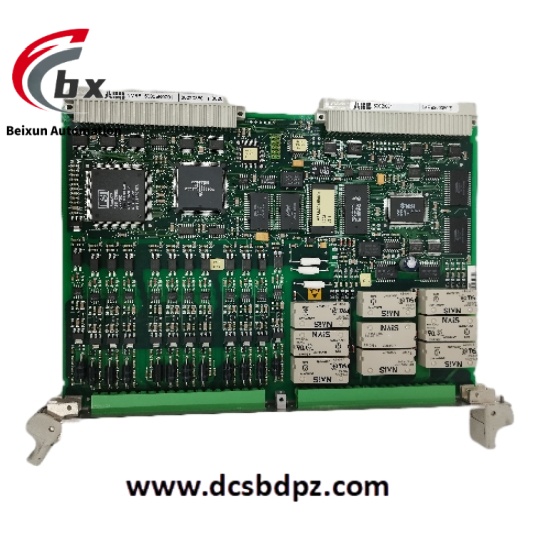

ABB 500BIO01 1MRB150005R0001 1MRB200060-E Digital input/output hybrid module
ABB 500BIO01 1MRB150005R0001 1MRB200060-E is a digital input/output hybrid module belonging to the ABB AC500 series PLC system. Integrating digital signal acquisition and control output functions, this module can directly connect to industrial on-site sensors, switches and actuators, realizing real-time monitoring of equipment operating status and accurate output of control commands. It is a key component for signal interaction in industrial automation control systems.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB 500BIO01 1MRB150005R0001 1MRB200060-E Digital input/output hybrid module
Specific Parameters
- Power Parameters
- Supply Voltage: 24V DC
- Current Consumption: Max. 0.08A for the module itself, additional max. 0.005A per input channel, additional max. 0.3A per output channel
- Digital Input Channels
- Number of Channels: 8
- Input Type: EN 61131-2 Type 1 compliant
- Input Signal Voltage: Signal 0: -3V to +5V, Signal 1: +15V to +30V
- Input Delay: Typical 5ms, configurable within 0.1-32ms
- Max Cable Length (Shielded): 1000m
- Digital Output Channels
- Number of Channels: 8
- Output Type: Transistor output (NPN/PNP configurable)
- Output Voltage: 24V DC
- Rated Current per Channel: 2A
- Total Output Current: 8A
- Output Delay: ≤10μs
- Isolation Characteristics
- Channel-to-Channel Isolation: 1000Vrms
- Power-Signal Isolation: 1500Vrms
- Dimensions: 125mm×85mm×60mm
- Weight: Approximately 0.4kg
- Operating Temperature Range: -20°C to +60°C
Product Performance
- Efficient Signal Interaction: Input delay is configurable, and output response speed is ≤10μs, enabling fast transmission of on-site signals and control commands to ensure the real-time performance of the control system.
- Strong Output Load Capacity: Each channel has a rated output current of 2A, and total output current of 8A, which can directly drive actuators such as solenoid valves and small motors without additional amplifying equipment.
- Excellent Anti-Interference Ability: High-voltage isolation design between channels and between power supply and signals, combined with industrial-grade EMC protection, ensures stable operation in strong electromagnetic interference environments.
- Good Installation Adaptability: Adopting 35mm DIN rail mounting, with compact size, it can be directly integrated into standard PLC control cabinets, adapting to various industrial installation scenarios.
