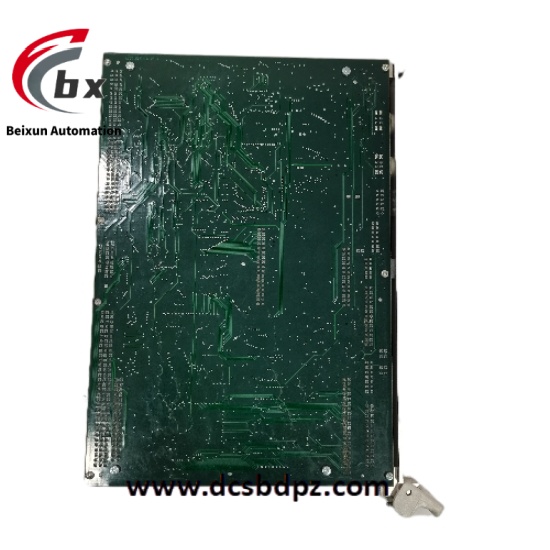

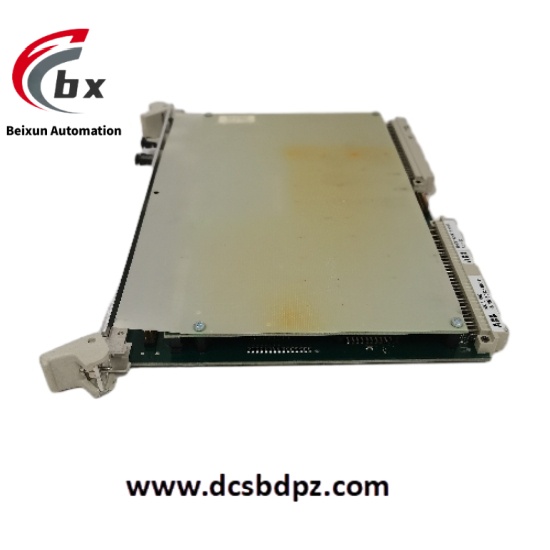

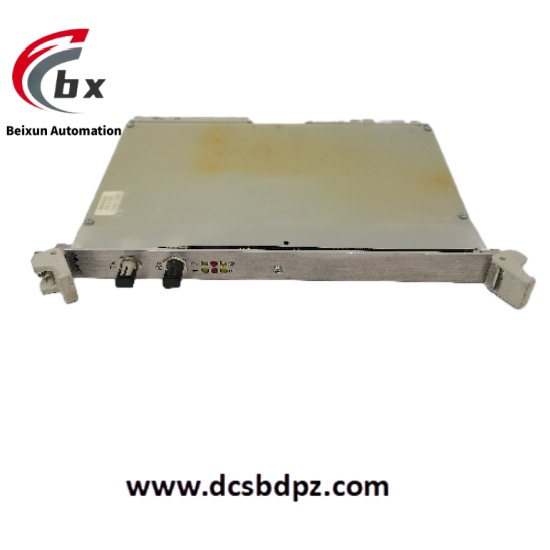

ABB 500AIM02 1MRB150022R001 1HDF 930412 X010 Analog input module
The ABB 500AIM02 1MRB150022R001 1HDF 930412 X010 is an analog input module mainly applied in industrial automation control systems. It can accurately collect various analog signals and convert them into digital signals for processing and analysis by Programmable Logic Controllers (PLCs) or other control systems. This module plays a crucial role in signal collection and conversion in the industrial automation production process, facilitating the accurate monitoring and control of the production process.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB 500AIM02 1MRB150022R001 1HDF 930412 X010 Analog input module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC
- Analog Input Channels
- Number of Channels: 4
- Input Signal Types: Voltage (such as 0 – 10V, ±5V), Current (such as 4 – 20mA)
- Input Accuracy: ±0.1% of full scale
- Resolution: 16 – bit
- Input Impedance: Greater than 10MΩ for voltage input; Less than 250Ω for current input
- Isolation Characteristics
- Channel – to – channel Isolation: Available, isolation voltage 1000Vrms
- Power Supply and Signal Isolation: Available, isolation voltage 1500Vrms
- Dimensions: 120mm in length, 80mm in width, 60mm in height
- Weight: Approximately 0.35kg
- Operating Temperature Range: -20°C to +60°C
- Storage Temperature Range: -40°C to +85°C
Product Performance
- High – Precision Signal Collection: With a 16 – bit resolution and high accuracy of ±0.1% of full scale, it can accurately collect analog signals, meeting the strict requirements for signal accuracy in industrial production. This ensures that the control system can make decisions based on accurate data, guaranteeing the stability and reliability of the production process.
- Adaptability to Multiple Signal Types: It supports common voltage and current analog signal inputs, has strong versatility, and can be easily connected to various sensors and transmitters. It is widely used in different types of industrial automation projects, enhancing the flexibility of system construction.
- Strong Isolation Performance: The isolation design between channels and between the power supply and signals can effectively resist electrical interference, enhance the anti – interference ability of the module in complex electromagnetic environments, ensure the accuracy of signal transmission, prevent signal distortion, and thus improve the stability and reliability of the entire automation system.
- Wide – Temperature – Range Operation: It can operate stably in the temperature range of -20°C to +60°C, adapting to a variety of harsh industrial environments. It reduces performance fluctuations caused by changes in ambient temperature, ensures the continuous normal operation of industrial automation systems, and reduces the risk of failures caused by environmental factors.
