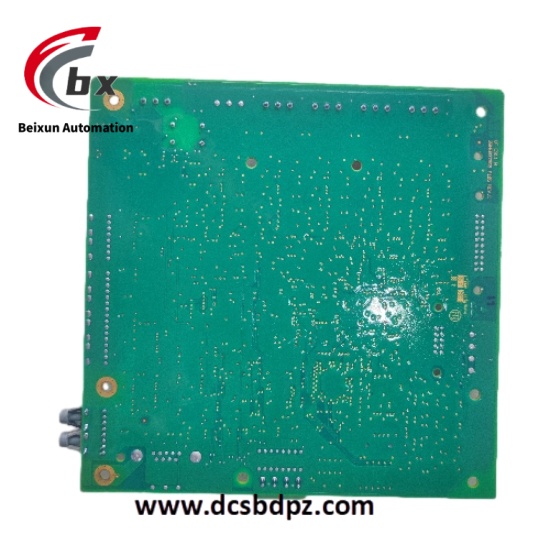

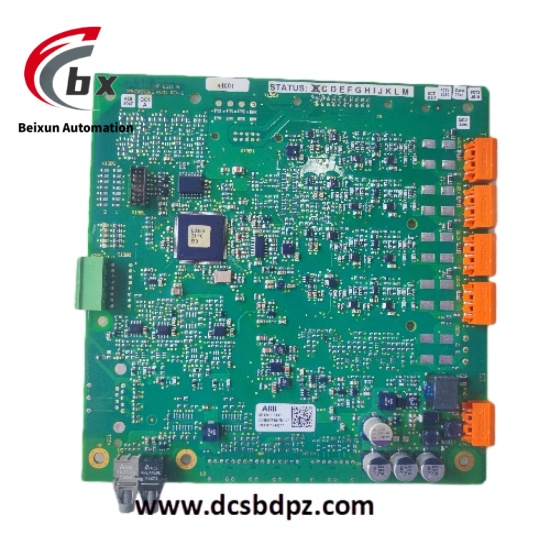

ABB 3BHE037864R0107
¥15,000.00 Original price was: ¥15,000.00.¥10,000.00Current price is: ¥10,000.00.
The ABB 3BHE037864R0107 is a control motherboard module that plays a crucial role in industrial automation and control systems. It is mainly used to perform various control, monitoring, and communication tasks, providing important support for the stable operation of the entire system. This module has a powerful signal processing capability. It can accurately receive various input signals, process them efficiently internally, and then output control signals accurately, ensuring that the connected devices and systems operate in an orderly manner according to preset programs and instructions. At the same time, with its excellent communication function, it can interact with other devices and the host computer to ensure the smooth flow of information throughout the system.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Specific Parameters
- Operating Voltage: 24V DC, with an allowable fluctuation range of 20.4V DC to 28.8V DC.
- Input Signal Types: Supports a variety of input signals, including digital inputs (such as dry contact signals), analog inputs (such as 0 – 10V voltage signals, 4 – 20mA current signals), and pulse inputs. It can be connected to a variety of signal sources such as encoders and sensors.
- Digital Input Characteristics: It has 8 digital input channels. The input voltage range is 15V DC to 30V DC, and the input delay time can be configured in the range of 0.1ms to 10ms.
- Analog Input Characteristics: There are 4 analog input channels. When the input is voltage, the input resistance is 100kΩ, and the input range is ±10V; when the input is current, the input resistance is 250Ω, and the input ranges are 0 – 20mA and 4 – 20mA, with a resolution of 12 bits.
- Pulse Input Characteristics: Dual – channel pulse input. Each channel can handle a pulse frequency of up to 100kHz and has a high resolution, capable of accurately identifying the number and frequency changes of pulses.
- Communication Interfaces: Equipped with an Ethernet interface, supporting 10/100Mbps adaptive rate, for high – speed data communication with other devices or the host computer to achieve remote monitoring and control; has an RS – 485 serial port, which is convenient for communication with different types of serial port devices and expands the application scenarios; also supports PROFIBUS – DP fieldbus communication, which can be easily connected to the industrial automation network.
- Protection Level: Reaches IP20 protection level, which can effectively prevent dust and provide a certain degree of protection for internal electronic components, ensuring stable operation in common industrial environments.
- Dimensions: 120mm in length, 80mm in width, and 40mm in height. The compact design makes it easy to install inside various control cabinets and devices, saving space.
- Weight: Approximately 0.2kg. The light weight is conducive to the overall layout and installation of the equipment.
- Operating Temperature Range: 0°C to +55°C, which can adapt to the temperature conditions of most industrial environments and maintain stable performance within this temperature range; the storage temperature range is – 40°C to +70°C, ensuring the reliability of the module in a non – working state.
- Humidity Range: 5% to 95%, non – condensing. Within this humidity range, the module will not experience a decline in electrical performance or component damage due to humidity problems.
Product Performance
- High – Performance Signal Processing: It is equipped with a high – performance processor and advanced signal processing circuits, which can quickly and accurately process various types of input signals. Whether under high – frequency pulse signal input or in a complex environment of mixed analog and digital signals, it can ensure the accuracy and stability of signal processing, providing a reliable data foundation for the system, thus guaranteeing the accuracy and timeliness of equipment control.
- Reliable Communication Capability: The Ethernet interface, RS – 485 serial port, and PROFIBUS – DP fieldbus have reliable communication performance. The Ethernet interface enables high – speed data transmission, meeting the communication scenarios with high requirements for large data volume and real – time performance, such as remote device status monitoring, real – time data collection and analysis; the RS – 485 serial port, with its good compatibility and anti – interference ability, is suitable for communication with various serial port devices; the PROFIBUS – DP fieldbus communication facilitates the module’s connection to the industrial automation network, ensuring stable data interaction among devices within the system and building an efficient automated communication network.
- Good Environmental Adaptability: It has the ability to adapt to different industrial environments. Within the specified temperature and humidity range, the performance of the module is not affected and can continue to operate stably. At the same time, the IP20 protection level enables it to effectively resist dust intrusion, avoid electrical failures caused by dust accumulation, extend the service life of the module, and improve the overall reliability and stability of the system.
- Advantages of Compact Design: The small size and light weight make the 3BHE037864R0107 highly flexible in installation. It can be easily integrated into control cabinets or devices with limited space without taking up too much space, facilitating the layout and design of the system, especially suitable for application scenarios with strict requirements for equipment volume.
