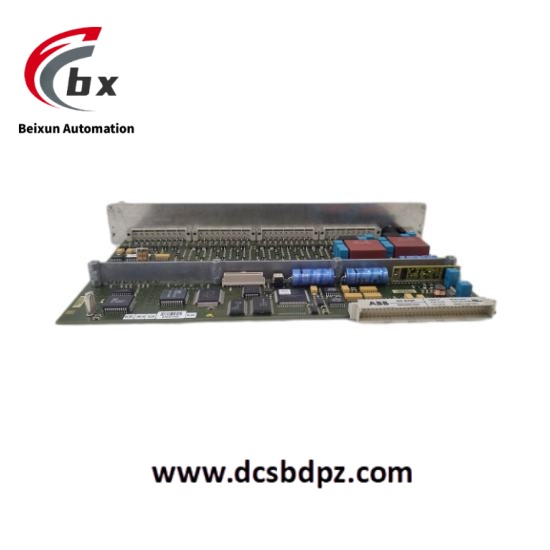

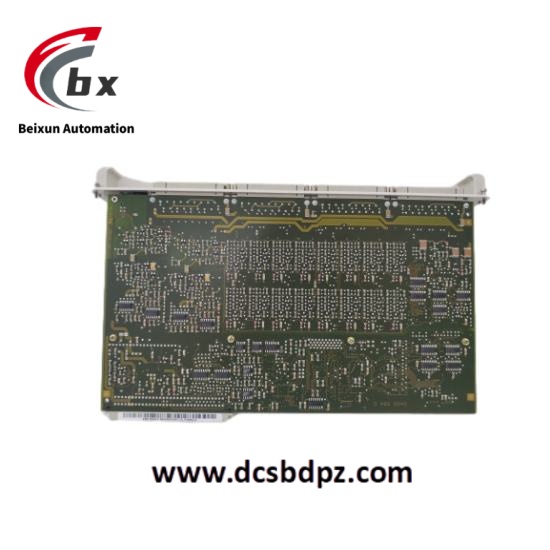

ABB 3BDH000730R1 Controller module
The ABB 3BDH000730R1 is an industrial - grade control module specifically designed for complex industrial automation systems. By integrating advanced control algorithms and high - speed data processing capabilities, this product enables precise control and monitoring of industrial equipment. With stable signal processing and multiple communication interfaces, it can effectively connect various sensors, actuators, and host computer systems, ensuring the efficient and stable operation of industrial production processes. It is suitable for industrial scenarios with high requirements for control accuracy and reliability.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB 3BDH000730R1 Controller module
Specific Parameters
- Processor: 32 – bit high – performance processor with a main frequency of 1.5GHz, ensuring rapid handling of complex control tasks.
- Memory: 512MB RAM, 2GB Flash, supporting program storage and data caching.
- Power Supply Voltage: 24V DC (±15%), power consumption ≤8W.
- Communication Interfaces: 1 Ethernet interface (10/100Mbps auto – negotiation), 2 RS – 485 interfaces, 1 CAN bus interface, supporting protocols such as Modbus TCP, Profibus DP, and CANopen.
- I/O Channels: 16 digital inputs, 12 digital outputs; 8 analog inputs (12 – bit resolution), 4 analog outputs (12 – bit resolution).
- Operating Temperature: -20°C – 60°C, storage temperature -40°C – 85°C.
- Dimensions: 150mm×100mm×50mm.
- Weight: Approximately 0.7kg.
Product Performance
- Efficient Computing Power: The 32 – bit processor with a 1.5GHz main frequency and sufficient memory enable the module to quickly execute complex control algorithms and process a large amount of real – time data, ensuring the timeliness and accuracy of industrial equipment control and improving production efficiency.
- Stable Communication Connection: The support of multiple communication interfaces and protocols enables seamless integration with different brands and types of devices, ensuring stable data transmission in the industrial network and facilitating centralized system management and remote monitoring.
- Precise Control Output: The rich I/O channels and high – resolution analog processing capabilities can accurately collect sensor data and output control signals, meeting the requirements of high – precision industrial control, such as motion control and process parameter adjustment.
- Strong Environmental Adaptability: The wide operating temperature range of -20°C – 60°C and the IP20 protection level allow it to operate stably in harsh industrial environments such as high temperature and dust, reducing equipment failures caused by environmental factors.
- Convenient Maintenance Design: The modular structure design is convenient for installation and disassembly, and supports online replacement of faulty modules. Program updates and parameter configuration can be performed remotely through communication interfaces, reducing maintenance costs and downtime.
