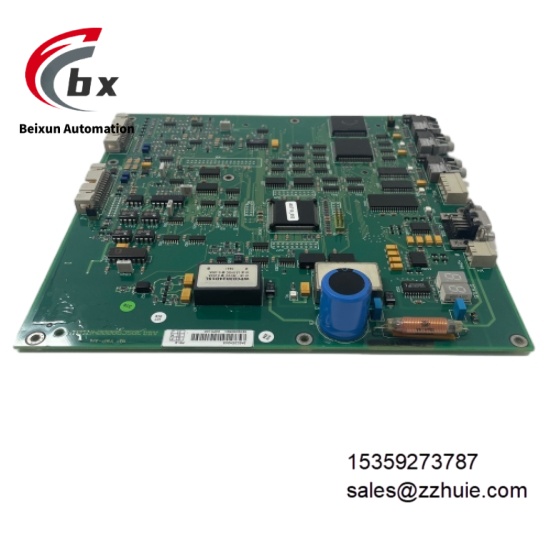

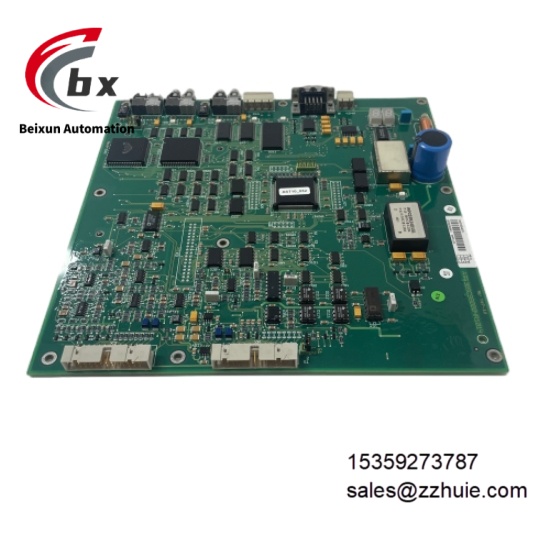

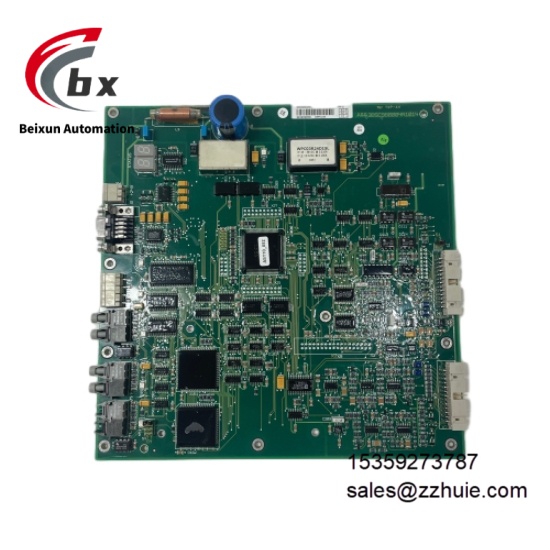

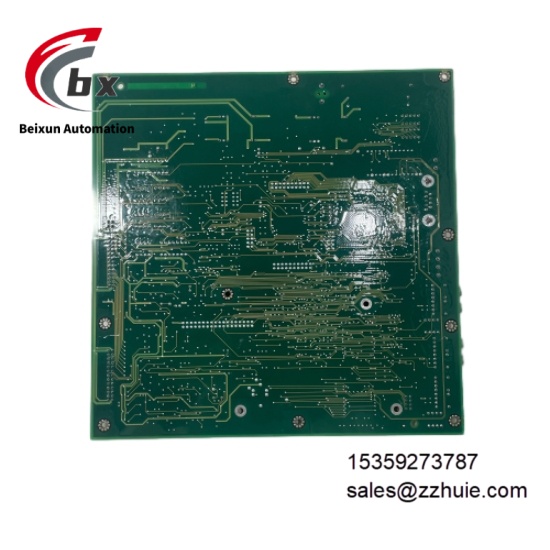

ABB 3ASC25H203 DAPC100 High performance control module
Specific Parameters
- Electrical ParametersProcessor: 32-bit ARM Cortex-M4 processorMemory Configuration: 256KB RAM, 512KB FlashSupply Voltage: 24V DCAnalog Inputs: 2 channels, supporting 0-10V, 0-20mA, 4-20mA, 1-5V signal typesA/D Conversion: 16-bit resolutionCommunication Interfaces: Ethernet, Modbus TCP, RS-232, RS-485, CANCommunication Rate: Up to 1Mbps
- Environmental ParametersOperating Temperature: -25°C to 70°CStorage Temperature: -40°C to 85°CRelative Humidity: 5% to 95% (non-condensing)Protection Class: IP20Anti-interference: Complies with IEC 61000 series EMC standards
- Mechanical ParametersDimensions: 175mm × 35mm × 110mmWeight: Approximately 0.4kgMounting Method: Suitable for standardized installation inside frequency converters or fixed installation in control cabinetsIndicators: Operation status and fault alarm indicators
Product Performance
It delivers high signal processing precision. The 16-bit A/D converter achieves low-noise signal conversion, ensuring the accuracy of analog acquisition and meeting the requirements of fine control. Equipped with a 32-bit processor and large-capacity memory, it can efficiently run control algorithms, quickly respond to instruction and signal changes, and guarantee the stable operation of frequency converters.
It has strong communication compatibility. Multi-type interfaces and protocols support seamless integration into industrial automation networks, enabling data interaction with host computers, sensors, and other equipment. The built-in storage module permanently saves equipment parameters and programs with no data loss after power-off, eliminating the need for repeated configuration.
It boasts excellent environmental adaptability. The wide temperature operating range and anti-interference design allow continuous operation in harsh industrial environments such as high humidity and dusty conditions, with hardware stability verified by rigorous tests.
