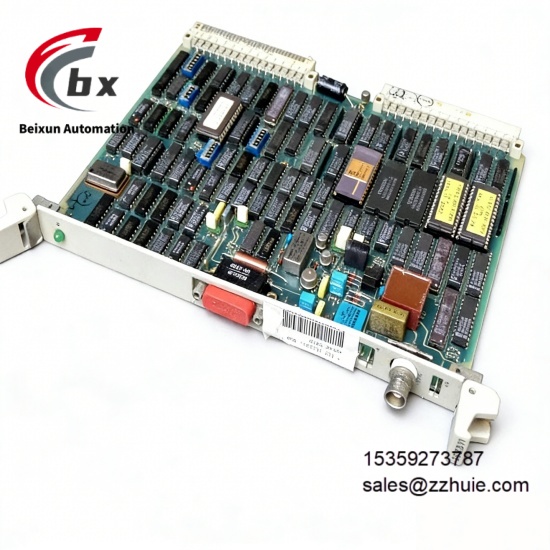

ABB 35ZB91 GJR5143500R0001 Printed Circuit Board (PCB) module

ABB 35ZB91 GJR5143500R0001 Printed Circuit Board (PCB) module

Specific Parameters

Rated Operating Voltage 24VDC

Voltage Range 16-36VDC

Operating Temperature Range -40℃ to +75℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Weight 0.95kg

Mounting Type Standard 35mm DIN Rail Mounting, ABB System Rack Mounting

Electromagnetic Compatibility Compliant with EN 61000-6-2/6-4 Standards

Isolation Type Isolation between Power Supply and Signal, Isolation between Communication Bus and System

Power Consumption ＜20W (at 24VDC)

Diagnostic Functions Power Fault Diagnosis, Communication Fault Diagnosis, Bus Fault Diagnosis, Interface Abnormality Diagnosis

Interface Type Standard Industrial Bus Interface, RS485 Communication Interface, Ethernet Interface

Data Transmission Rate 10/100Mbps Auto-Negotiation

Response Time ＜0.5ms

Communication Protocols Supports Modbus, Profibus DP, Ethernet/IP

Bus Expansion Capacity Up to 8 Expansion Modules

Product Performance

Stable Communication Performance: Built-in high-performance communication processing chip, data transmission rate up to 10/100Mbps auto-negotiation, response time ＜0.5ms, can quickly complete the transmission and exchange of various data in industrial field without delay or packet loss, meeting the strict requirements of industrial real-time control scenarios.

Multiple Protection Performance: Adopts isolation design between power supply and signal, communication bus and system, with multiple protection functions such as overvoltage, overcurrent, short circuit, reverse connection and surge, which can effectively prevent module damage and ensure stable system operation.

Redundant Fault-tolerant Performance: Adopts redundant design architecture, can automatically detect and isolate power supply, communication, bus and interface faults, and does not affect the overall operation of the system when a fault occurs, ensuring the continuity and stability of the industrial control process.

Comprehensive Diagnostic Performance: Built-in complete diagnostic functions including power fault, communication fault, bus fault, interface abnormality, can monitor the module operation status in real time, quickly report faults to the system when faults occur, supports remote diagnosis and maintenance, and shortens fault troubleshooting time.

Anti-interference Performance: Complies with EN 61000-6-2/6-4 electromagnetic compatibility standards, possesses strong anti-interference ability, can effectively resist various interferences such as power grid harmonics, equipment start-stop impact and space electromagnetic radiation in industrial sites, no data loss and no communication interruption during long-term operation.

Wide Temperature Adaptation Performance: Operating temperature covers -40℃ to +75℃, can work stably in extremely cold or high-temperature environments, adapts to various harsh industrial sites, no constant temperature control required, trouble-free operation all-weather.

Hot Swap Performance: Supports online hot swapping, can replace the module without stopping the system, does not affect the overall system operation, reduces unplanned downtime and improves factory production efficiency.

System Compatibility Performance: Perfectly adapts to ABB Advant OCS/800XA series control systems, can be seamlessly connected with the same series of digital input/output modules, analog modules and communication modules, supports multiple communication protocols, completes system integration without additional debugging.

Bus Expansion Performance: Supports up to 8 expansion modules, can flexibly expand system communication capabilities, meets the needs of industrial automation systems of different scales, supports plug-and-play, no complex configuration required.
