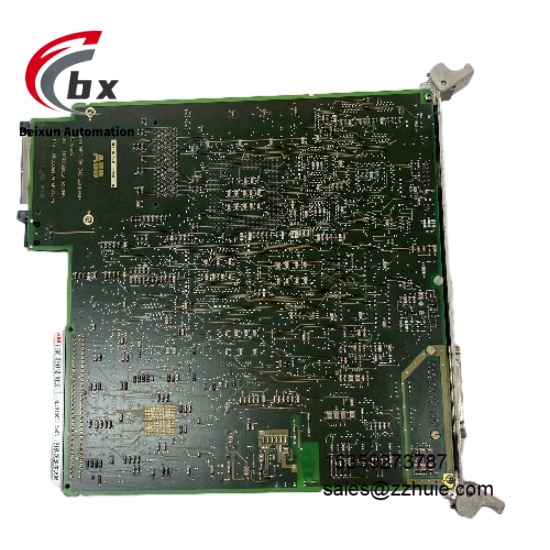

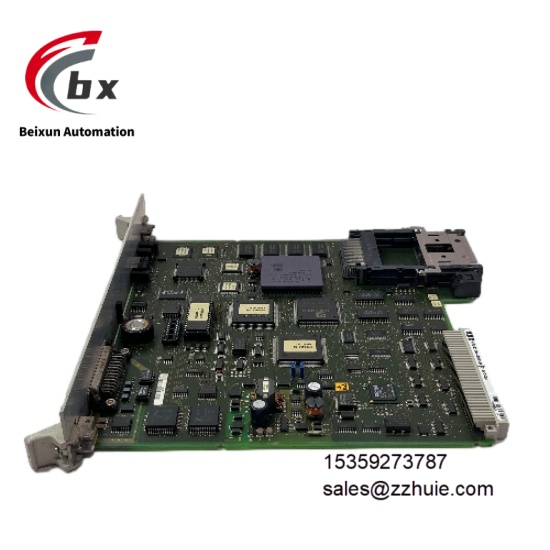

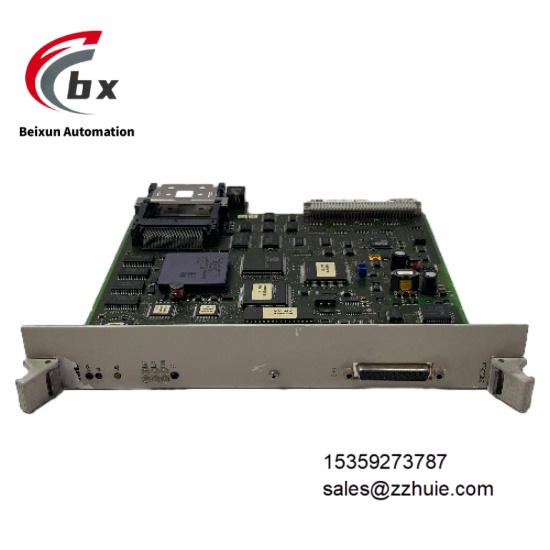

ABB 216VC62a-P1000 HESG324442R112 Analog input module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10% (provided by S800I/O rack, supporting redundant power supply)
Input Channels: 8 independent differential analog inputs
Signal Types: 4-20mA DC, 0-20mA DC, 0-10V DC, 1-5V DC, ±10V DC (configurable)
Measurement Accuracy: ±0.05% FS (full range)
Resolution: 24-bit A/D conversion
Sampling Rate: 200Hz per channel (supporting synchronous sampling)
Filter Configuration: 1ms-1000ms programmable digital filtering (enhanced filtering algorithm)
Isolation Level: 2.5kV AC between channels (1 minute), 5kV AC between channels and system (1 minute)
Protection Functions: Overvoltage protection (≤35V DC), short circuit protection, surge suppression (±2kV)
Power Consumption: ≤12W under normal operation
Environmental Parameters
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 (industrial grade), IEC 61000-4-2/4/6
Vibration Resistance: 10-500Hz, 2g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 15g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 40mm (W) × 175mm (H) × 250mm (D)
Weight: Approximately 680g
Mounting Method: ABB S800I/O standard rack mounting (compatible with UR21/UR22 racks)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant aluminum alloy (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp terminals, compatible with 16-22 AWG wires

Product Performance

The module adopts an enhanced 24-bit A/D conversion chip and low-temperature drift operational amplifier, with full-range measurement error ≤±0.05% FS and long-term stability ≤±0.01% FS/year. Combined with a 200Hz high sampling rate, it can accurately capture high-frequency small signal fluctuations. It supports 1ms-1000ms programmable filtering, integrates an adaptive noise suppression algorithm, and has a common mode rejection ratio ≥130dB, effectively resisting strong electromagnetic interference in industrial sites.

Integrated with a channel-level self-diagnostic system, it real-time monitors open circuits, short circuits, over-ranges, signal drift and module power abnormalities, with fault diagnosis coverage ≥99.5% and fault response time ≤5ms. Status information is uploaded to the controller in real time via the bus. The independent channel isolation design adapts to complex grounding environments and avoids signal crosstalk.

Fully compatible with ABB AC 800M controller and Control Builder M configuration software, it supports online configuration of signal types, filtering parameters, ranges and fault thresholds, enabling maintenance without shutdown. The mean time between failures (MTBF) is ≥450,000 hours, meeting the high-reliability monitoring needs of continuous production.
