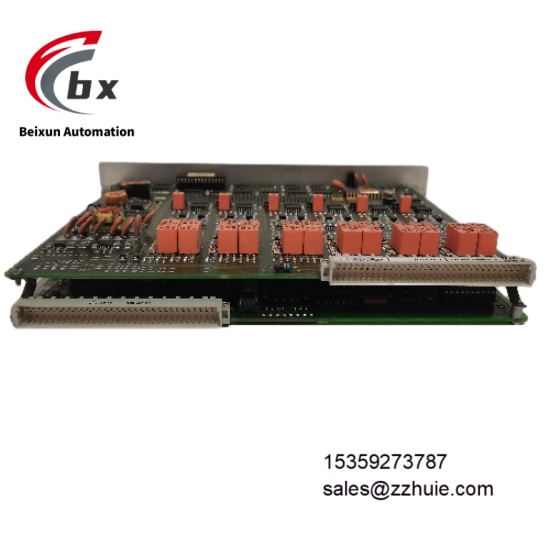

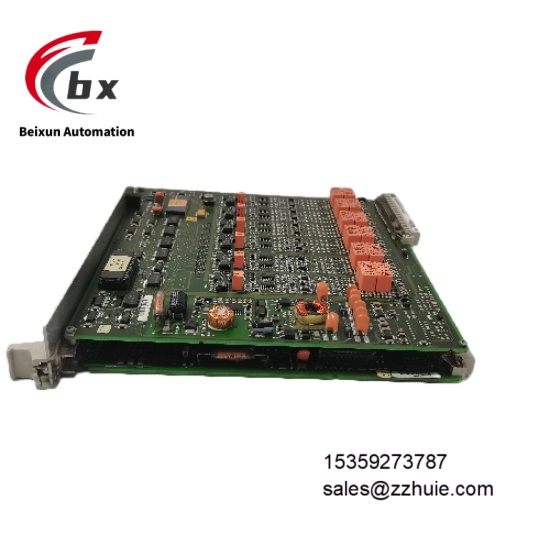

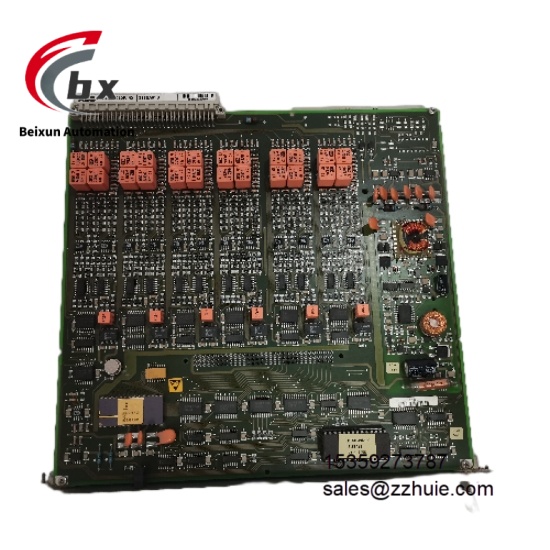

ABB 216EA61B HESG448230R1-G Analog Output Module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10% (redundant power supply provided by system rack)
Output Channels: 8 independent isolated output channels
Signal Types: 4-20mA DC, 0-20mA DC, 0-10V DC, 1-5V DC (configurable)
Output Accuracy: ±0.05% FS (full range)
Resolution: 24-bit D/A conversion
Load Capacity: Current output ≤750Ω, voltage output ≥10kΩ
Isolation Level: 2.5kV AC between channels (1 minute), 5kV AC between channels and system (1 minute)
Protection Functions: Overcurrent protection (≤30mA), short circuit protection, overvoltage protection (≤35V DC)
Power Consumption: ≤10W under normal operation
Environmental Parameters
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 (industrial grade), IEC 61000-4-2/4/6
Vibration Resistance: 10-500Hz, 2g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 15g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 40mm (W) × 175mm (H) × 250mm (D)
Weight: Approximately 650g
Mounting Method: ABB S800I/O standard rack mounting (compatible with UR21/UR22 racks)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant aluminum alloy (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp terminals, compatible with 16-22 AWG wires

Product Performance

The module adopts 24-bit high-precision D/A conversion chip and low-temperature drift drive circuit, with output signal linearity error ≤±0.02% FS and long-term stability ≤±0.01% FS/year, enabling micron-level regulation of actuators. It supports independent configuration of signal types and ranges for 8 channels, no hardware jumpers required, and parameter configuration can be completed via software.

The output response time is ≤1ms, combined with digital filtering function, which can effectively suppress signal fluctuations and ensure stable operation of actuators. Integrated with channel-level self-diagnostic functions, it real-time monitors output open circuit, short circuit, overload and module power abnormalities, with fault diagnosis coverage ≥99%, and fault status is uploaded to the controller in real time via bus.

Independent channel isolation design combined with 5kV system-level isolation provides common mode rejection ratio ≥120dB, maintaining stable output even in strong electromagnetic interference environments. Fully compatible with ABB AC 800M controller and Panel 800 HMI, supporting online configuration download and firmware upgrade, enabling maintenance without shutdown. The mean time between failures (MTBF) is ≥450,000 hours, meeting the needs of continuous production scenarios.
