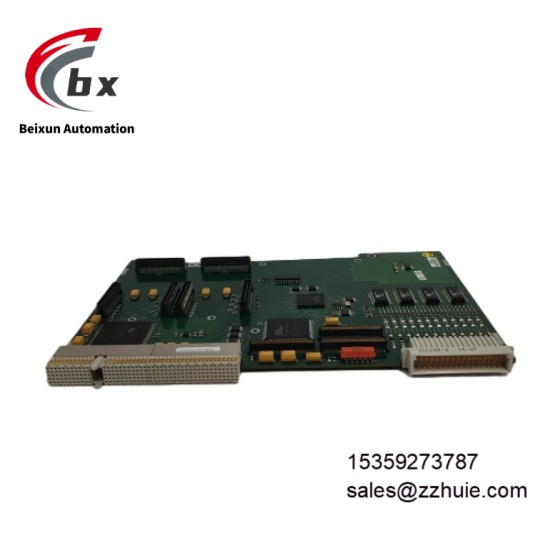

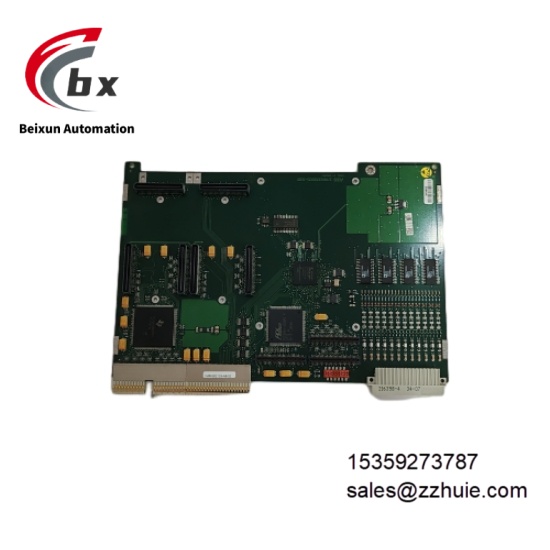

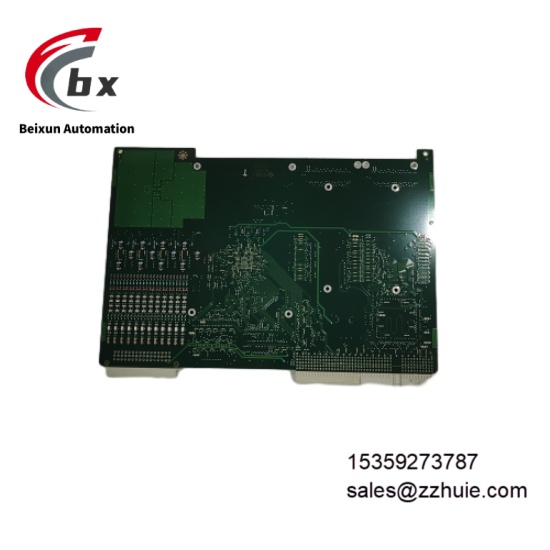

ABB 1MRK002133-ABR02 Analog to digital conversion module

ABB 1MRK002133-ABR02 Analog to digital conversion module

Specific Parameters

• Electrical ParametersSupply Voltage: 24V DC, supporting 20-30V DC wide voltage inputPower Consumption: ≤5W under normal operationAnalog Conversion Performance: 16-bit resolution dual independent ADC, maximum sampling rate up to 100kspsInput Range: Analog channels support configurable ranges of ±10V, ±5V, ±2.5VSignal Conditioning: Integrated programmable gain amplifier (PGA) with adjustable gain of 1, 2, 4, 8, 16 timesDigital I/O: 16 isolated digital inputs (24V DC), 16 isolated digital outputs (2A/24V DC per channel)Reference Power Supply: Built-in 2.5V high-precision voltage reference, temperature drift ≤5ppm/℃Communication Interfaces: 1 Ethernet, 1 RS-232, 1 RS-485 serial interfaceIsolation Level: Isolation voltage ≥1000V DC between analog channels and digital circuits, insulation resistance ≥100MΩ (500V DC)
• Environmental ParametersOperating Temperature: -40°C to 70°C (non-condensing)Storage Temperature: -40°C to 85°CRelative Humidity: 5% to 95% (non-condensing)EMC Immunity: Complies with EN 61326-1 standard, ESD protection ±15kV (air discharge)Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6 standard)Shock Resistance: 15g acceleration, 11ms duration (compliant with IEC 60068-2-27 standard)Certification Standards: CE certification, UL industrial control equipment certification
• Mechanical ParametersDimensions: 120mm×80mm×30mmWeight: Approximately 220gMounting Method: 35mm DIN rail mountingHousing Material: Flame-retardant reinforced plastic (UL 94 V-0 grade)Terminal Type: Screw terminals, compatible with 16-24 AWG wiresIndicators: Power (PWR, green steady on), Operation (RUN, green blinking), Synchronization (SYNC, yellow steady on), Fault (ERR, red steady on)

Product Performance

The module’s analog signal conversion accuracy is ≤±0.05% full scale. Combined with a built-in temperature sensor for error compensation, the temperature drift is controlled within ≤0.001% full scale/℃. The time synchronization accuracy reaches ±100ns, enabling precise timing alignment of data acquisition between multiple modules.

The digital signal response time is ≤1ms, and the output circuit supports short-circuit protection, automatically limiting current to 2.5A during overload. The communication link data transmission delay is ≤5ms, supporting Modbus RTU/TCP protocol for real-time upload of conversion data and equipment status information.

It has a built-in fault diagnosis module that can detect fault types such as ADC abnormalities, power fluctuations, and communication interruptions, with a diagnostic coverage rate ≥99%. Fault information is fed back through both indicator lights and communication bus. The module’s Mean Time Between Failures (MTBF) is ≥1,000,000 hours (25℃ environment), supporting online parameter configuration, enabling range and gain adjustment without power-off.
