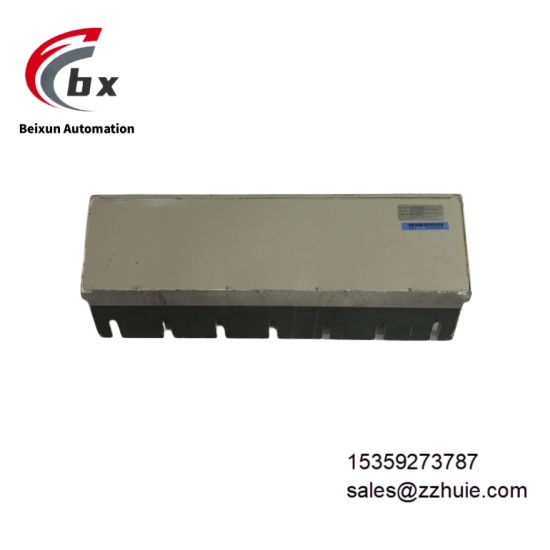

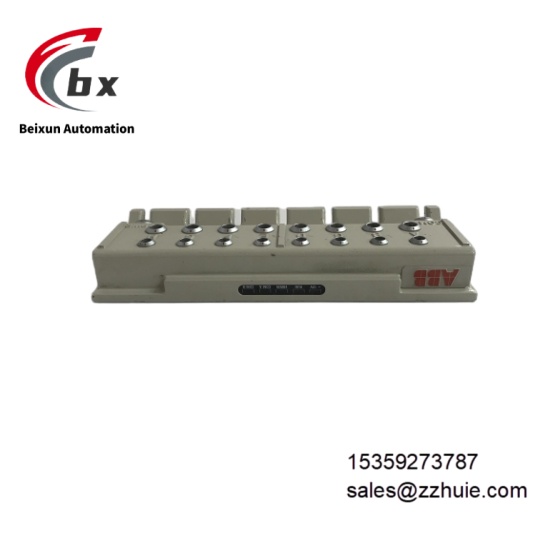

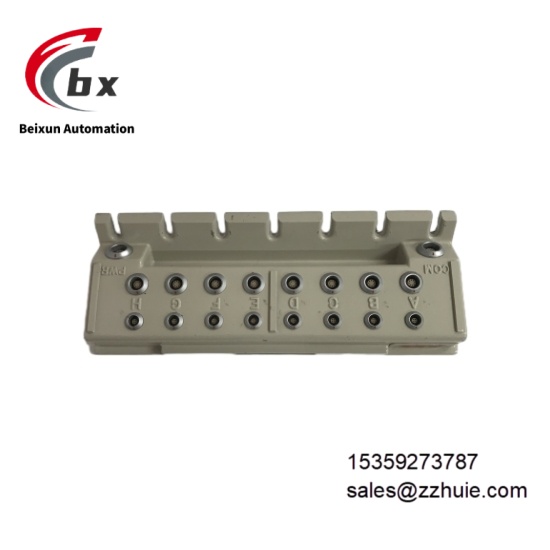

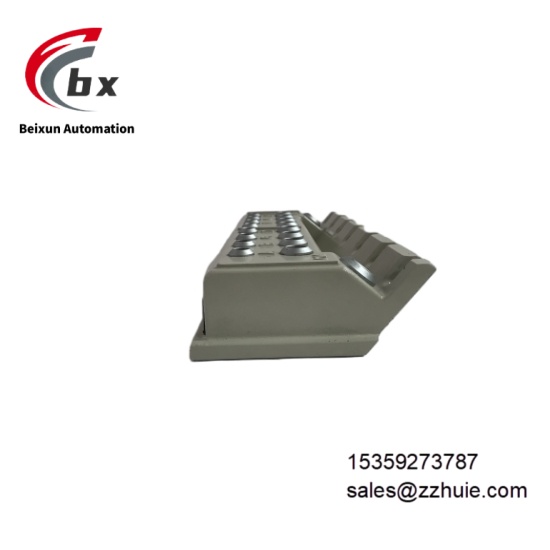

ABB 129740-002 Analog input/output IO control unit

ABB 129740-002 Analog input/output IO control unit

Specific Parameters

• Electrical ParametersSupply Voltage: 12-48VDC wide-range inputOutput Voltage: 5VDC stable outputOutput Current: Maximum output current 10AConversion Efficiency: Power conversion efficiency greater than 90%Digital Inputs: 16 digital input channels, supporting 0-30VDC signal inputDigital Outputs: 16 digital output channels, single-channel load switching capacity up to 2AAnalog Channels: Multiple sets of analog input and output channels, compatible with voltage and current signal typesCommunication Interfaces: Equipped with RS-232, RS-485 serial communication interfaces, supporting Ethernet connectionSupported Protocols: Compatible with multiple communication protocols such as TCP/IP, expandable with RS-485 sub-linksIsolation Level: Electrical isolation between input and output circuits
• Environmental ParametersOperating Temperature: Adapts to a wide temperature range, meeting the operation requirements of typical industrial environmentsRelative Humidity: Compatible with common humidity conditions in industrial scenarios, with environmental adaptabilityAnti-interference: Effective in suppressing noise and electromagnetic interference through signal filtering
• Mechanical ParametersDimensions: 170mm×105mm×32mmWeight: Approximately 120gMounting Method: Adaptable to standard installation architectures of industrial control systems, integrable into PLC systems

Product Performance

It features high signal conversion accuracy, enabling precise bidirectional conversion between analog and digital signals, ensuring the accuracy of control commands and monitoring data. The signal processing speed is fast, and the built-in circuit design completes signal amplification and filtering, which can quickly remove interference components and retain effective signal information.

The communication response is rapid, supporting 4 communication links to work simultaneously, enabling high-speed data exchange with PLCs and peripheral equipment. The diagnostic function is comprehensive, with self-diagnosis, event log recording and real-time status monitoring capabilities, which can timely feed back abnormal module operation.

It has strong system compatibility, supporting multi-language text display and 7999 screen management, adaptable to third-party software engines. The parameter configuration is flexible, allowing adjustment of signal frequency, phase, amplitude and other parameters according to industrial scenario requirements.
