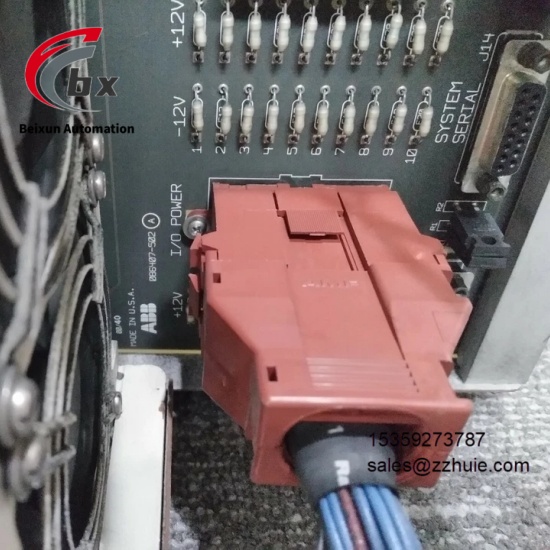

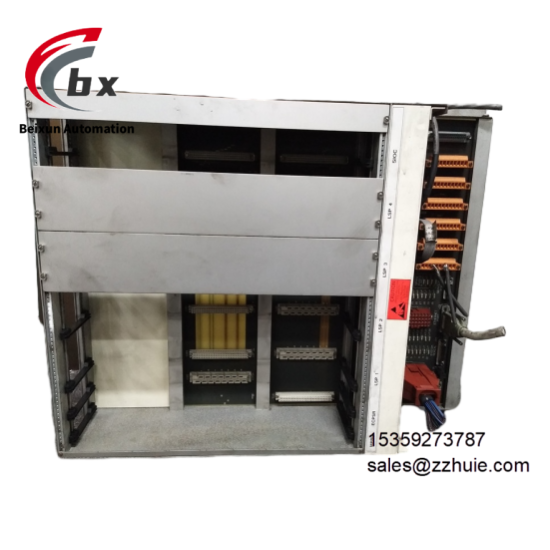

ABB 086407-502 Programmable controller

ABB 086407-502 Programmable controller

Specific Parameters

Brand ABB (Switzerland)

Product Series ABB Industrial Automation Controller Series

Product Type Industrial-Grade Programmable Controller, PLC/DCS Card Module, Industrial Control Spare Part

Model ABB 086407-502

Country of Origin Switzerland

Compatible Devices ABB Industrial Control System, PLC/DCS Card Module, Industrial Sensors, Actuators, Winding Lamination Equipment, Arc Gate Equipment, Hydraulic Control System

Operating Power Supply 220VAC

I/O Points 24 Points

Analog Output 1 Channel 4-20mA

Digital Output 1 Channel RS485 Full Digital Output

Processing Speed 550μs

Program Capacity 300

Data Capacity 200

Output Frequency 100Hz

Communication Protocols Built-in Communication Protocol, Supporting RS485 Communication Protocol

Communication Interfaces RS485 Interface

Protection Type Electromagnetic Interference Protection, External Interference Protection

Operating Temperature Range -10℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity Less Than 90%, Non-Condensing

Protection Level IP20

Physical Dimensions 200mm×180mm×50mm (Length×Width×Height)

Physical Weight Approximately 2.5kg

Mounting Method Standard Industrial Control Equipment Slot Mounting

Special Functions Stepping Linear Control, Parameter Programming, Zero Point/Circle Length/Share Coefficient Setting, 16-Segment Nonlinear Setting, Remote Diagnosis, 4-20mA Output Fine Tuning

Product Material Industrial-Grade Flame-Retardant Material

Customizable No

Certification Standards CE, EMC

Warranty Period 12 Months

Product Performance

Compatible with various industrial control equipment and ABB industrial control systems, powered by 220VAC stably, it can accurately realize industrial process and machine control. The 086407-502 module has convenient spare part replacement to ensure the continuity of system control.

The processing speed reaches 550μs, supporting stepping linear displacement output, which can directly convert digital quantity into mechanical displacement quantity without D/A conversion, with high control precision, meeting the needs of precise control.

Supports RS485 communication and various parameter settings, can realize remote diagnosis and maintenance, integrates complete protection functions, has strong anti-interference ability, runs stably and reliably, and effectively avoids the impact of external interference.

Reinforced packaging with industrial-grade flame-retardant material, protection level IP20, strong adaptability to wide temperature environment, can operate stably for a long time in harsh industrial scenarios, with complete fault diagnosis function and convenient and efficient maintenance.
