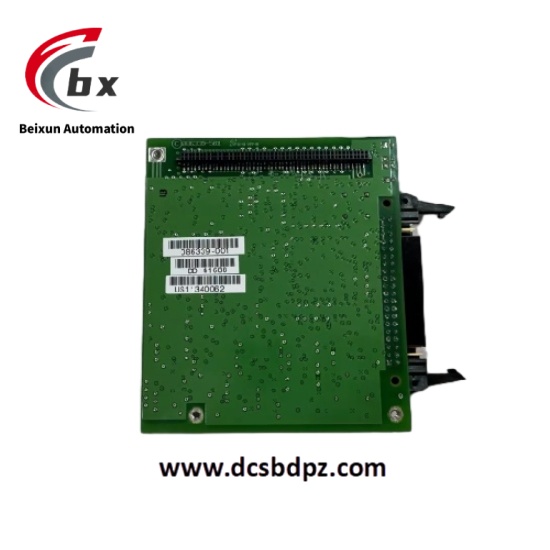

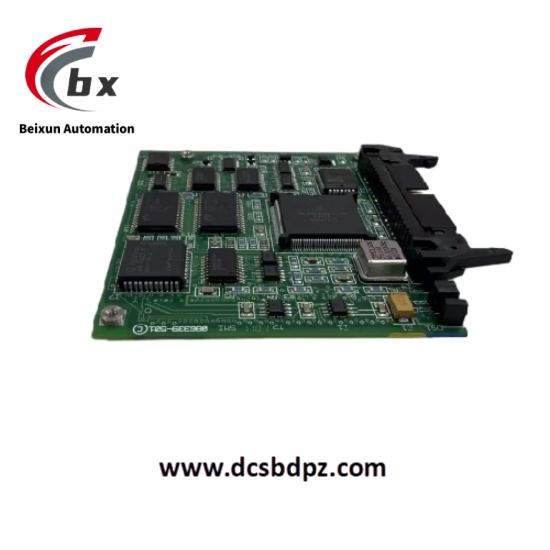

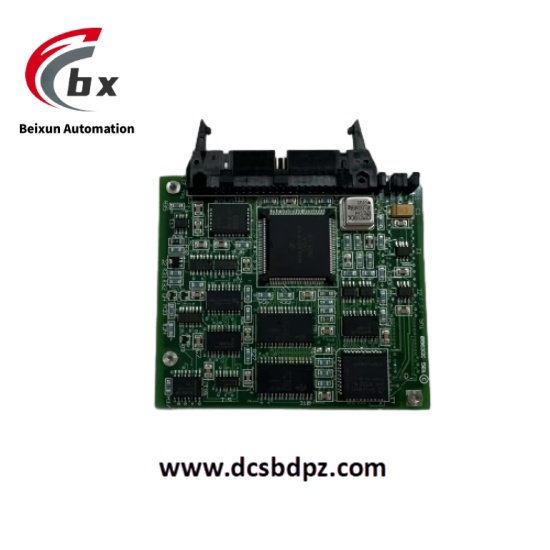

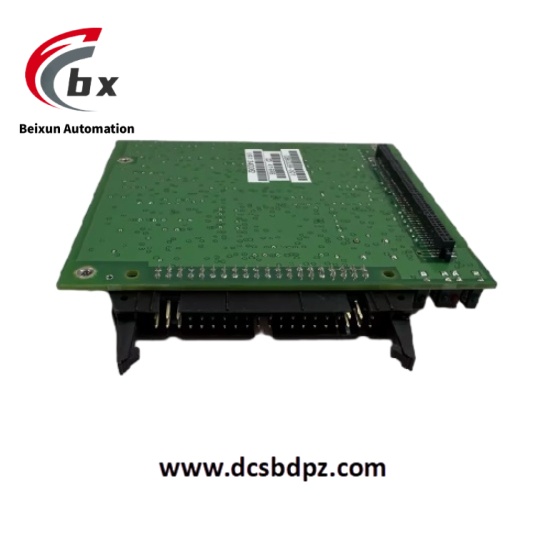

ABB 086339-001 Digital Output Module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC (±10%)
- Maximum Power Consumption: ≤3W
- Output Parameters
- Number of Output Channels: 8 channels
- Output Type: Transistor output (NPN)
- Maximum Load Current per Channel: 2A
- Switching Delay Time: ≤5ms (turn-on/turn-off)
- Isolation Parameters
- Channel-to-Power Isolation: 1500V AC (for 1 minute continuously)
- Channel-to-Channel Isolation: 500V AC (for 1 minute continuously)
- Environmental Parameters
- Operating Temperature Range: -20°C to +60°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection Class: IP20
- Physical Parameters
- Mounting Type: 35mm DIN rail mounting
- Dimensions: 95mm×75mm×25mm
- Weight: Approximately 0.18kg
Product Performance
- High Driving Capacity: With a maximum load current of 2A per channel, it can directly drive small and medium-sized actuators without additional power amplification modules.
- Reliable Isolation Design: Dual isolation between channels and power supply as well as between channels effectively blocks the conduction of interference signals, ensuring stable operation of the module and system.
- Fast Switching Response: Switching delay time of ≤5ms can meet the needs of high-frequency control scenarios and improve control accuracy.
- Wide Environmental Adaptation: Stably operates within the temperature range of -20°C to +60°C and wide humidity range, adapting to complex environmental conditions in industrial sites.
- System Compatibility: Directly compatible with ABB AC500 series PLCs, supporting standard programming interfaces and simplifying system configuration processes.
