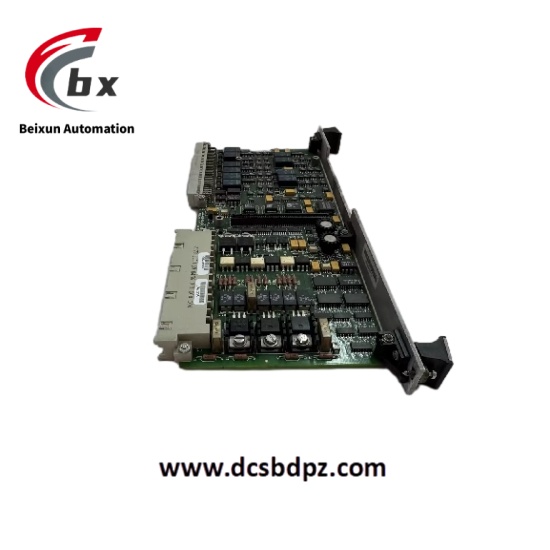

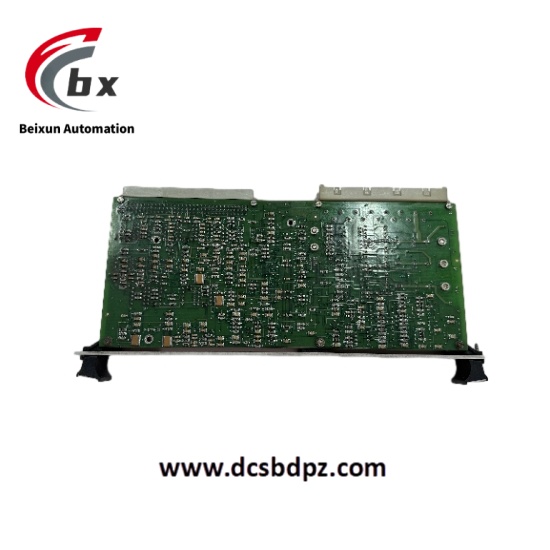

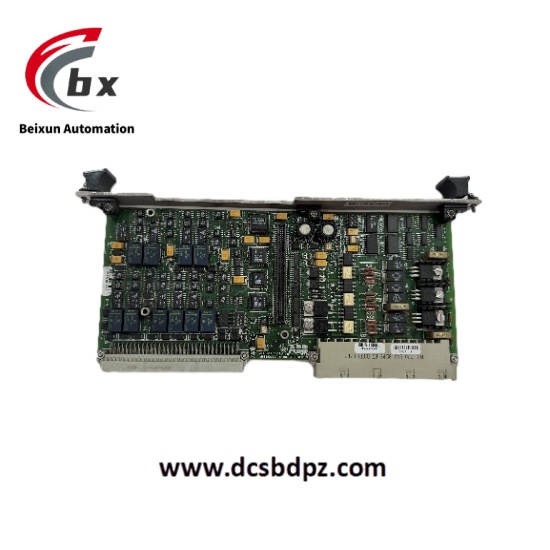

ABB 086329-004 Signal conversion module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC (±10%)
- Current Consumption: ≤50mA
- Signal Conversion Parameters
- Input Signal Type: 4-20mA DC (analog)
- Output Signal Type: 0-10V DC (analog)
- Conversion Accuracy: ±0.1% of full scale
- Linearity: ≤0.05% of full scale
- Isolation Parameters
- Isolation Type: Three-terminal isolation (power supply, input, output)
- Isolation Voltage: 2500Vrms (for 1 minute)
- Environmental Parameters
- Operating Temperature Range: -20°C to +60°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Physical Parameters
- Dimensions: 70mm×50mm×30mm
- Weight: Approximately 50g
- Mounting Type: DIN rail clip mounting
Product Performance
- High-Precision Conversion: With conversion accuracy of ±0.1% of full scale and excellent linearity, it can accurately convert input current signals to voltage signals, meeting the high requirements of control systems for signal accuracy.
- Reliable Electrical Isolation: The three-terminal isolation design and 2500Vrms isolation voltage can effectively block common-mode interference, prevent damage to the control system caused by high on-site voltage, and improve signal transmission stability.
- Low Power Consumption Design: Current consumption is ≤50mA, which has little impact on the system power load and is suitable for low-power automation scenarios.
- Wide Environmental Adaptability: It operates stably within the temperature range of -20°C to +60°C and wide humidity range, and can adapt to complex temperature and humidity environments in industrial sites.
