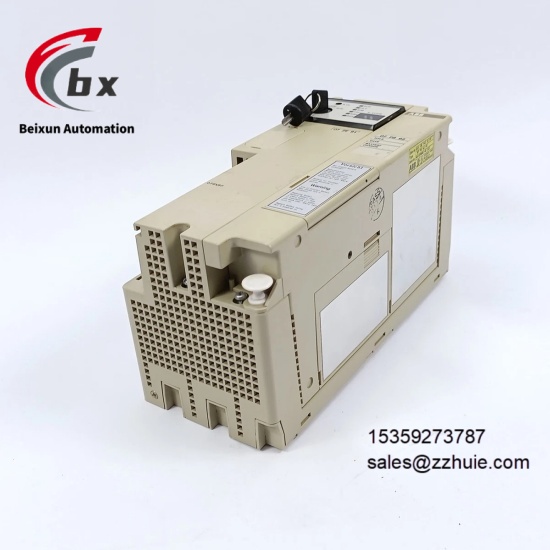

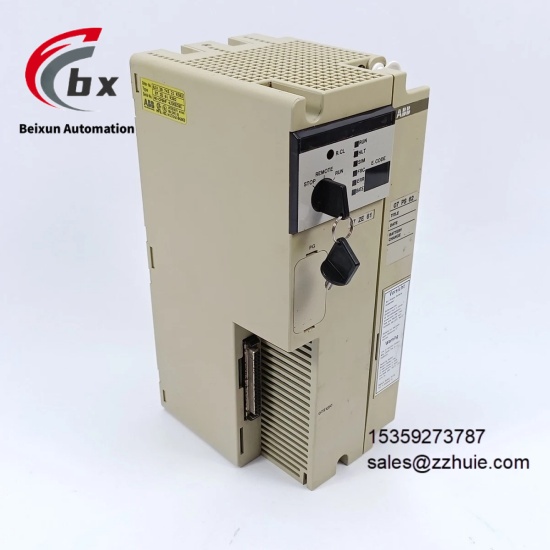

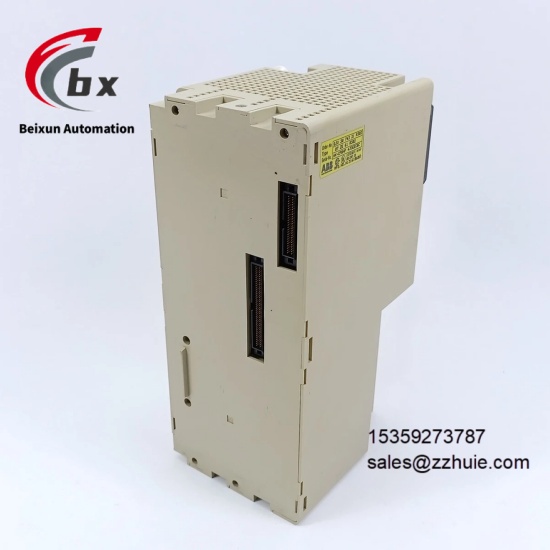

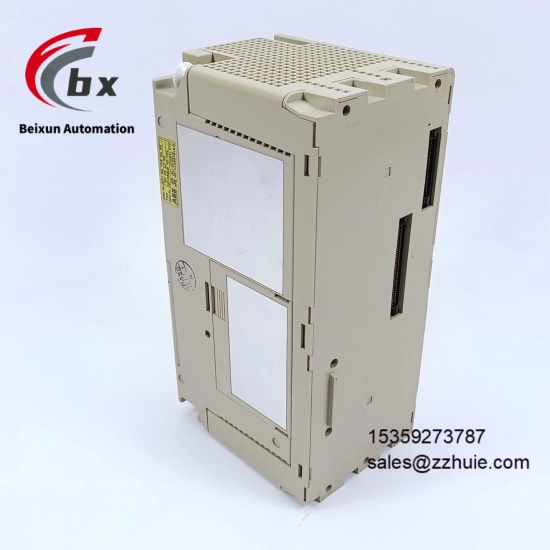

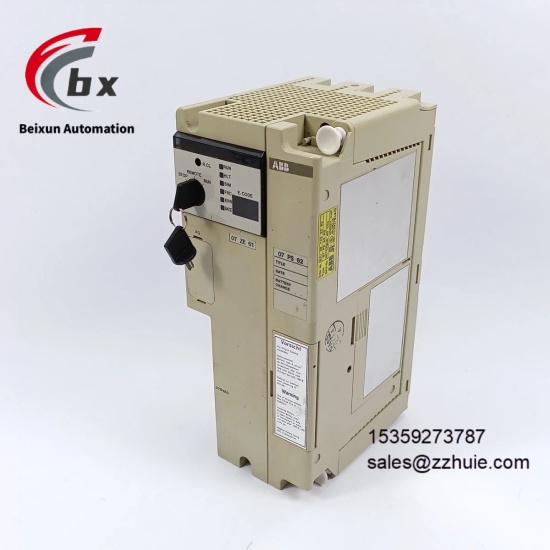

ABB 07ZE63R201 GJV3074323R201 Central Processing Unit Module

Specific Parameters

Brand ABB (Swiss Original Factory), Product Series ABB Procontic T200 Series, ABB Industrial Control Central Processing Unit Module Series

Product Type Industrial-Grade Central Processing Unit Module, Automation Control Core Component, Original Authentic Spare Part, Programmable Logic Control Module

Model ABB 07ZE63R201 GJV3074323R201 (Complete order number, dual models correspond to the same product core configuration)

Country of Origin Switzerland (Produced by ABB Group Original Factory, Global Synchronous Supply)

Compatible Devices ABB Procontic T200 Control System, Industrial Automation Equipment, PLC Systems, Module Racks, I/O Modules, Programming Workstations, Communication Modules

Core Functions Program Processing, Logical Control, Data Acquisition, Process Monitoring, Module Expansion Control, System Linkage, Communication Adaptation, User Program Bearing

Product Structure Standard Industrial Modular Packaging, Compact Structure, Suitable for ABB Procontic T200 Series Standard Rack Installation, Easy to Integrate and Maintain

Program Storage Capacity 128KB non-volatile memory, supporting online program modification, meeting the operation needs of small and medium-sized industrial control programs

Data Storage 64KB RAM, with battery backup, data can be saved for ≥72 hours after power failure

Expansion Capability Supporting local rack expansion, up to 3 expansion racks can be connected, with a total of no more than 2048 I/O points

Processing Performance Based on 16-bit microprocessor, supporting ladder diagram and function block diagram programming, efficient and stable operation

Communication Protocols Supporting Modbus RTU protocol, enabling data interaction with upper computers, I/O modules and third-party equipment

Communication Interfaces Standard RS485 communication interface, supporting seamless linkage with programming workstations and communication modules

Operating Temperature Range 0℃ to 55℃, adapting to various industrial control environments

Storage Temperature Range -40℃ to +85℃, adapting to harsh storage and transportation conditions

Relative Humidity 5% to 95%, Non-Condensing, Adaptable to High Humidity Industrial Scenarios

Protection Class IP20, Suitable for installation in control cabinets, effectively preventing dust intrusion

Physical Dimensions Conforming to the standard module dimensions of ABB Procontic T200 Series, suitable for 19-inch 3U rack installation

Physical Weight Approximately 0.7kg (body weight), easy to handle, install and maintain

Mounting Method Embedded plug-in installation in module racks, can be mixed with the same series of I/O modules and power modules

Special Functions Supporting online program modification and debugging, with fault self-diagnosis function, capable of quickly locating operation abnormalities

Product Performance

Adaptability Performance: Perfectly adapt to ABB Procontic T200 control system, seamlessly compatible with the same series of I/O modules, power modules and communication modules, no additional adaptation components required, reducing system integration costs.

Processing Performance: Adopting 16-bit microprocessor, efficient and stable operation, fast program processing response, supporting complex logical control, capable of stably carrying small and medium-sized industrial control programs, ensuring smooth control processes.

Expansion Performance: Supporting multi-rack local expansion, can be flexibly expanded according to actual control needs, up to 2048 I/O points, adapting to small and medium-sized industrial process control scenarios of different scales.

Reliability Performance: Adopting industrial-grade high-quality components, wide temperature operating range, up-to-standard protection level, strong anti-electromagnetic interference capability, and data storage design with battery backup to ensure no data loss after power failure, stable and reliable operation.

Operation and Maintenance Performance: Modular plug-in design, easy installation and maintenance, supporting online program modification and debugging, complete fault self-diagnosis function, capable of quickly locating abnormalities, reducing operation and maintenance difficulty and cost.
