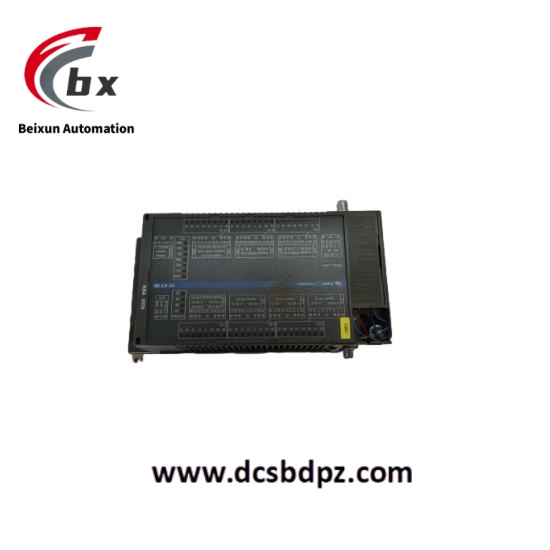

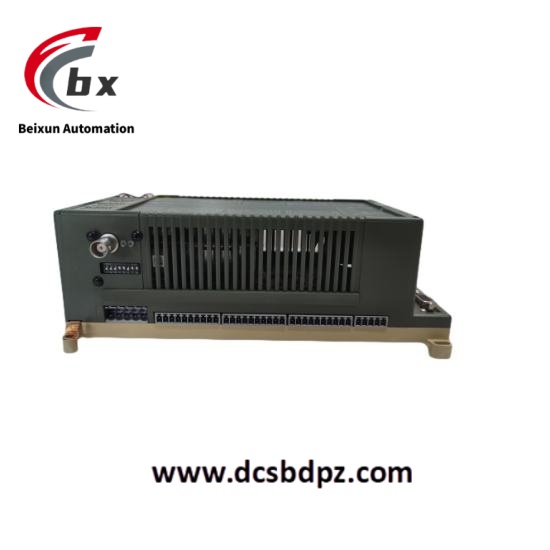

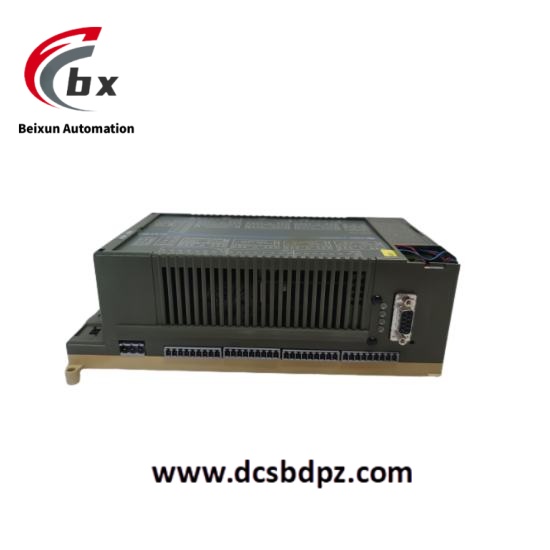

ABB 07KT98 H4 GJR5253100R3262 Programmable Logic Controller

Specific Parameters

Processor: The processor speed reaches 100MHz, enabling rapid data processing and computing. It can efficiently execute a wide range of complex control algorithms and tasks, ensuring quick system response and meeting the strict real – time requirements of industrial automation.
Memory: It is equipped with 2MB of program memory for storing various application programs, ensuring stable program operation, and 1MB of data memory for data storage and processing during runtime, guaranteeing fast data reading, writing, and efficient management.
Communication Ports: It has an Ethernet port, which supports high – speed network communication, facilitating high – volume and high – speed data exchange with other devices and systems for efficient system integration. Additionally, it is equipped with RS – 232 and RS – 485 ports. The RS – 232 port is suitable for short – distance and low – speed data transmission scenarios, while the RS – 485 port, with its strong anti – interference ability and long transmission distance, is widely used for communication connections between industrial field devices, meeting communication needs in different scenarios.
Analog Inputs: There are 8 analog input channels that can accept various types of signal inputs, including 0… +5V, – 5… +5V (10 – bit signed), 0… +10V, – 10… +10V (11 – bit signed), 0…20mA, 4…20mA current signals, and PT100 (2 – wire or 3 – wire) temperature signals, with a resolution of 12 bits and support for bipolar inputs. Moreover, these analog input channels can be used as digital input channels under certain circumstances, greatly enhancing the flexibility and applicability of the device.
Analog Outputs: It is equipped with 4 analog output channels, capable of outputting – 10… +10V (11 – bit signed) voltage signals and 0…20mA (12 – bit) current signals. It can accurately control various actuators that require analog control, such as control valves and frequency converters, achieving precise regulation of industrial processes.
Digital Inputs and Outputs: It has a certain number of digital input (DC 24V) and digital output (DC 24V) ports. These can accurately receive switch – quantity signals from sensors, buttons, and other devices, monitor the status of external devices in real – time, and effectively control actuators such as relays, indicator lights, and solenoid valves, enabling precise start – stop and status control of equipment.
Operating Temperature: The operating temperature range of the device is from – 40°C to 70°C. It can adapt to extreme high and low temperature environments and maintain stable operation in harsh industrial environments, ensuring that the production process is not affected by temperature changes.
Storage Temperature: The storage temperature range is from – 25°C to +75°C. Even when the device is not in operation, it can be safely stored within a wide temperature range, ensuring long – term reliability.
Dimensions and Weight: The product has dimensions of 12.7cm x 5.1cm x 12.7cm and weighs only 0.1kg. While ensuring performance, it is compact and lightweight, making it convenient for installation and arrangement in different industrial scenarios, saving space and being easy to operate.
Certifications: This product has passed CE and UL certifications, meeting international safety, health, and environmental protection standards. This demonstrates that it has reached the leading industry level in terms of quality, safety, and reliability, and can be safely applied to various industrial automation projects.

Product Performance

High – Speed and Stable Operation: With its 100MHz high – speed processor and sufficient memory configuration, the 07KT98 H4 GJR5253100R3262 can execute complex control logics and data processing tasks at high speed and with stability. Whether it is simple sequential control or process control involving a large amount of data calculation and complex algorithms, it can respond quickly and execute accurately, effectively improving production efficiency, reducing delays and failures in the production process, and ensuring the continuity and stability of industrial production.
Powerful Communication Capability: The rich communication ports endow the device with powerful communication capabilities. The Ethernet port supports high – speed network communication and can interact with host computers, other controllers, and various intelligent devices for efficient data exchange, enabling the integration of large – scale industrial automation systems. The RS – 232 and RS – 485 ports facilitate the connection of the device to various on – site sensors, actuators, and other devices, meeting communication needs at different distances and speeds, ensuring smooth information transfer among all devices in the system, and enhancing the collaborative working ability of the entire automation system.
Flexible I/O Configuration: The diverse analog input and output channels, as well as digital input and output ports, give the device a high – degree of flexible I/O configuration. The analog input channels can receive multiple types of signals, and some channels can also be used as digital inputs. The analog output channels can accurately output different types of analog signals, and the digital input and output ports can reliably achieve switch – quantity control. This flexible I/O configuration can meet the needs of various complex industrial application scenarios. Whether it is the precise monitoring and control of analog quantities such as temperature, pressure, and flow, or the simple switch control of equipment, it can handle them easily, greatly improving the versatility and adaptability of the device.
Excellent Environmental Adaptability: The wide operating temperature range (from – 40°C to 70°C) and storage temperature range (from – 25°C to +75°C) make the product have excellent environmental adaptability. It can operate stably in harsh industrial environments such as high temperature, low temperature, high humidity, and strong electromagnetic interference, effectively resisting the impact of environmental factors on device performance, reducing the failure rate caused by environmental problems, lowering maintenance costs, improving the service life of the device and the reliability of the production system, and ensuring that industrial production is not restricted by environmental conditions.
High Reliability and Safety: Passing CE and UL certifications indicates that the product strictly follows international standards in the design and manufacturing process and has high reliability and safety. The product adopts advanced circuit design and protection measures internally, which can effectively resist electrical interference, over – voltage, over – current, and other abnormal conditions, ensuring the stable operation of the device in various complex electrical environments. At the same time, multiple safety protection mechanisms, such as fault diagnosis, automatic reset, and safe shutdown functions, are integrated at the hardware and software levels, which can effectively avoid safety accidents caused by device failures and ensure the safety of personnel and equipment.
