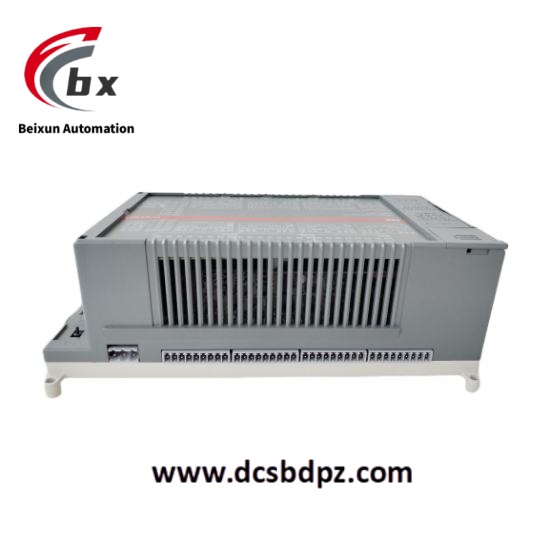

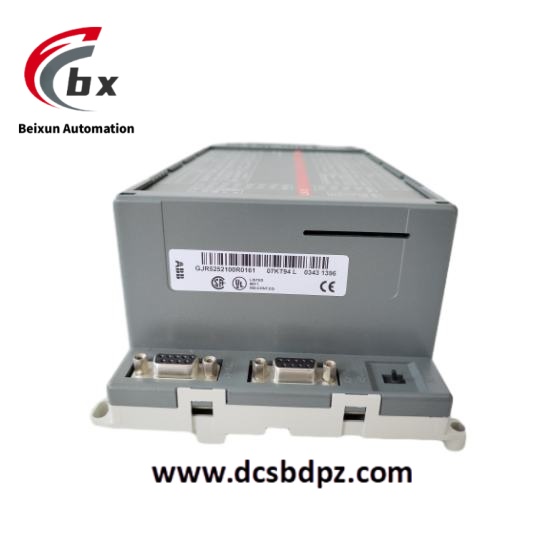

ABB 07KT94L Programmable Logic Controller (PLC)

Processor: Equipped with a 32 – bit microprocessor, it has strong data processing and computing capabilities. It can quickly and efficiently execute complex control algorithms and data processing tasks, providing powerful support for the stable operation of the system.

Memory: It is equipped with 256 KB of Random – Access Memory (RAM) and 2 MB of flash memory. RAM is used for data storage and processing during program operation, while flash memory is used to store important information such as application programs, configuration data, and historical records. The sufficient memory space can meet the diverse needs of industrial applications.

I/O Ports: It has 24 digital input ports and 16 digital output ports. The digital input ports can accurately receive switch – quantity signals from sensors, buttons, and other devices, and the digital output ports can effectively control actuators such as relays, indicator lights, and solenoid valves, realizing signal interaction and collaborative work among devices.

Communication Interfaces: It supports multiple communication protocols such as RS – 232, RS – 485, and CAN bus. The RS – 232 interface is suitable for short – distance and low – speed data transmission scenarios. The RS – 485 interface has stronger anti – interference ability and a longer transmission distance and is often used for communication connections between industrial field devices. The CAN bus, with its high – speed and reliable data transmission characteristics, is widely used in industrial automation networks. Through these communication interfaces, the 07KT94L can conveniently interact with other devices and systems for data exchange and realize system integration.

Power Supply: It is powered by a 24V DC power supply with an output current of 0.5A, which can provide stable power for the device and ensure its stable operation in the industrial environment.

Insulation Voltage: The rated insulation voltage is as high as 50V, which can effectively isolate electrical interference, improve the safety and stability of device operation, and enable it to work reliably in a complex electrical environment.

Weight: The weight of the basic unit is 3.72kg. While ensuring the performance and robustness of the device, it has a certain degree of portability, which is convenient for installation and use in different industrial scenarios.

Expansion Capability: It has good expansion capabilities. Additional modules such as communication processors and analog I/O modules can be added to flexibly expand the device functions according to actual application requirements and adapt to the changing needs of industrial automation control. For example, after adding an analog I/O module, it can collect and control analog signals such as temperature, pressure, and flow, further enriching the monitoring and control range of the system.

Efficient and Stable Operation: With its 32 – bit microprocessor and sufficient memory configuration, the 07KT94L can execute various complex control logics and data processing tasks efficiently and stably. Whether it is simple sequential control or process control involving a large amount of data calculation and complex algorithms, it can respond quickly and execute accurately, ensuring the efficient and stable operation of the industrial production process, effectively improving production efficiency, and reducing failures and delays in the production process.

Wide Device Compatibility: The large number of I/O ports and support for multiple communication protocols endow it with excellent device compatibility. It can easily achieve seamless connection and communication with various brands and models of sensors, actuators, and other industrial devices, and can quickly integrate and play a role in different industrial automation systems, greatly reducing the difficulty and cost of system integration and providing convenience for building complex industrial automation control systems.

Flexible Function Expandability: Its expandable feature allows the 07KT94L to flexibly add functional modules according to the changes and requirements of actual industrial application scenarios. When the production scale expands, the process changes, or new control requirements arise, functional upgrades can be quickly realized by adding corresponding modules without replacing the entire controller, effectively protecting the user’s previous investment, and improving the service life and cost – effectiveness of the device.

Excellent Environmental Adaptability: It has a robust and durable design and can adapt to harsh industrial environments. It can still operate reliably under extreme conditions such as high temperature, low temperature, high humidity, and strong electromagnetic interference, ensuring that the production process is not affected by environmental factors. Its high – insulation – voltage design further enhances its resistance to electrical interference, ensuring the stability and safety of the device in a complex electrical environment, reducing the failure rate caused by environmental factors, lowering maintenance costs, and improving production continuity.

Advanced Self – Diagnosis Ability: It has advanced self – monitoring and diagnostic functions, which can real – time monitor the operating status of the device, detect and report potential fault hazards in a timely manner. Once an abnormality is detected, it can quickly locate the fault point and provide detailed fault information for engineers, facilitating fault troubleshooting and repair, effectively reducing downtime, and improving the availability of the device, allowing engineers to focus more on core production tasks.

Convenient Programming and Operation Experience: It is equipped with intuitive programming tools and detailed documentation, and supports two common programming methods, ladder logic and structured text programming. This user – friendly design enables both novice engineers who are new to PLC programming and experienced professionals to quickly get started and write programs and set up systems according to actual production process requirements, greatly shortening the project development cycle and improving work efficiency.

Reliable Safety Assurance Mechanism: It incorporates safety functions such as fail – safe modes and backup power options. In the event of unexpected power outages or system failures, the fail – safe mode can ensure that critical operations are effectively protected, avoiding safety accidents caused by device out – of – control. The backup power option can provide temporary power support for the device when the main power supply is interrupted, maintaining the storage of key data and the operation of some important functions, maximizing the protection of production continuity and reducing production losses and risks caused by sudden situations.
