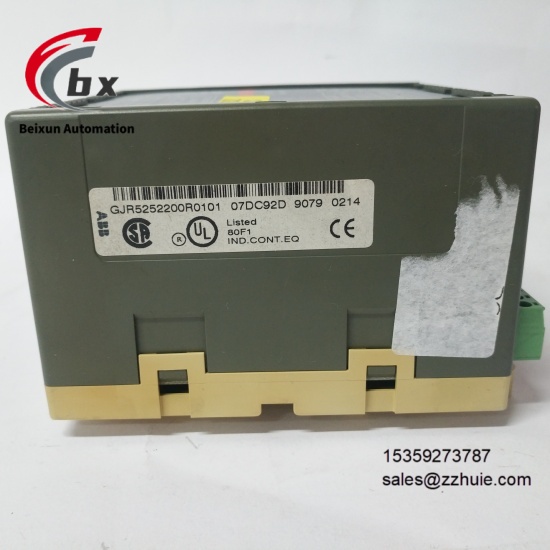

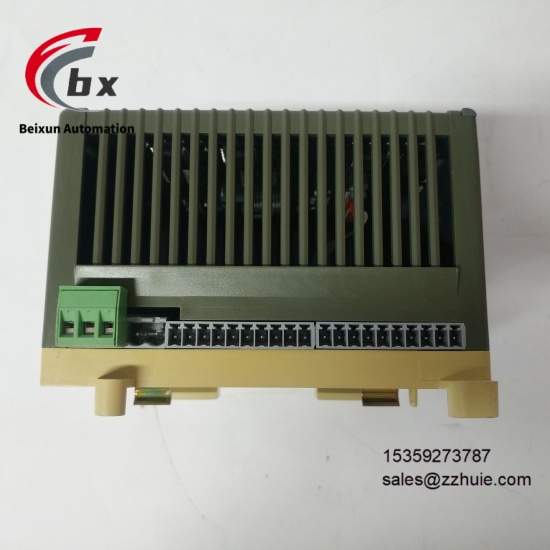

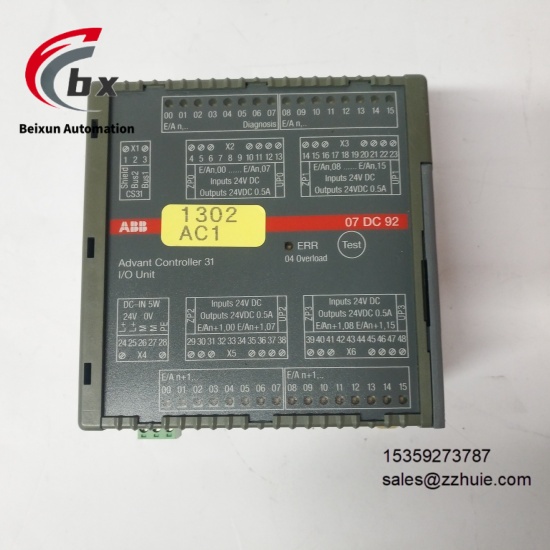

ABB 07DC92D GJR5252200R0101 Configurable digital input/output module
Specific Parameters
Electrical Parameters
Operating Voltage 24VDC, supporting stable input without fluctuationI/O Channels 32 configurable digital input/output channels, independently configured in 4 groupsInput Signal Voltage 24VDC, typical input current 7.0mA per channelOutput Current Maximum 0.5A per channel, maximum total current 4A per groupCommunication Protocols Compatible with Ethernet, Modbus TCP/IP, RS-485 (EIA RS-485)Isolation Level Electrical isolation between system bus and module, and between channel groups, isolation voltage 1500V ACProtection Features Built-in reverse polarity protection and overcurrent protectionPower Consumption Maximum 5W without load, maximum 10W with loadCertification Standards Compliant with CE and relevant standards for industrial automation equipment
Mechanical Parameters
Overall Dimensions 120mm×140mm×85mm, compact structure suitable for dense installationWeight Approximately 450g, lightweight design facilitating deploymentMounting Method 35mm DIN rail mounting, compliant with DIN EN 50022 standardHousing Material High-quality industrial-grade material with good insulation and mechanical strengthConnection Method Plug-in terminals, compatible with maximum 2.5mm² power cables and 1.5mm² signal cablesProtection Rating IP20, suitable for indoor control cabinet installation scenariosStatus Indication Each channel is equipped with a yellow LED indicator to feedback channel working status in real time
Environmental Parameters
Operating Temperature 0℃ to 55℃, operation without derating over the entire temperature rangeStorage Temperature -25℃ to 75℃, meeting extreme storage and transportation requirementsRelative Humidity ≤95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance Complies with industrial standards, withstanding conventional installation and operation vibrationsShock Resistance Withstands mechanical shocks during transportation and installation, with stable performanceEMC Compliance Excellent anti-external electromagnetic interference capability, adapting to complex industrial electromagnetic environments
Product Performance
Flexible channel configuration: 32 configurable I/O channels independently set in 4 groups, adapting to multi-device connection needsReliable isolation design: 1500V AC electrical isolation, avoiding inter-channel interference and voltage impactWide communication compatibility: Multi-protocol support enables seamless connection to various industrial control systems, realizing real-time data interactionHigh operational reliability: Manufactured with industrial-grade components, dual protection of reverse polarity and overcurrent ensures long-term operation without faultsConvenient installation and maintenance: Modular structure + plug-in terminals reduce disassembly difficulty and operation and maintenance costsStrong load adaptability: 0.5A output capacity per channel meets control needs of various actuators and indicator lightsIntuitive status feedback: Independent LED indicator for each channel, quickly locating channel working statusExcellent system integration: Seamlessly compatible with ABB Advant Controller series and mainstream industrial automation systems
