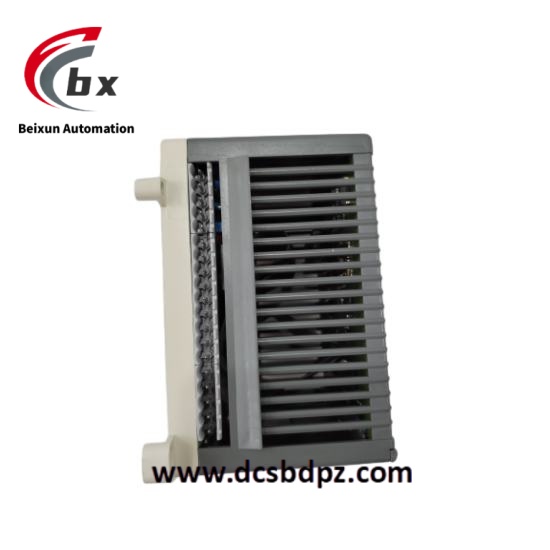

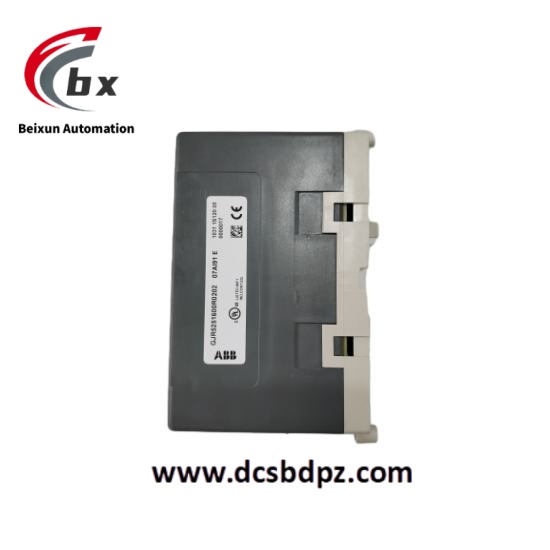

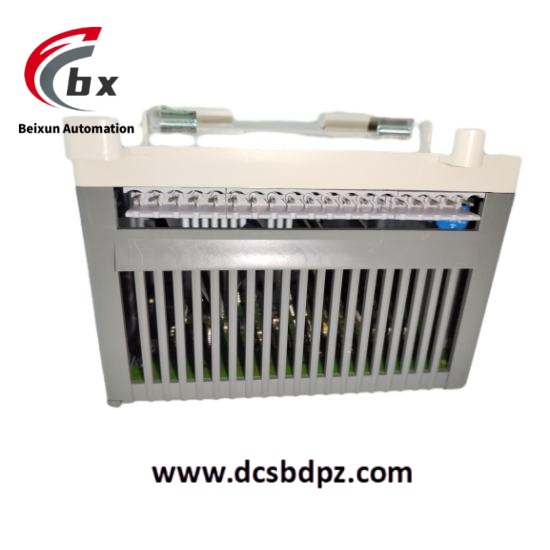

ABB 07AI91E Analog Input Module

Number of Input Channels: It has 8 configurable analog input channels, enabling the simultaneous collection of multiple analog signals.

Input Signal Types: It supports a wide variety of analog input signal types, including thermocouples (types J, K, S), resistance temperature detectors (Pt100, Pt1000), as well as voltage signals (-50…+50mV, -500…+500mV, -5…+5V, -10…+10V) and current signals (0…20mA).

Resolution: It has a resolution of 12 bits + sign, enabling high – precision measurement and providing accurate data for the system.

Power Supply: It is powered by a 24V DC power supply to ensure stable power support.

Fieldbus Interface: As a CS31 slave, it can achieve seamless communication in industrial automation systems.

Operating Temperature Range: The operating ambient temperature ranges from 0°C to +55°C, and the storage temperature range is from -25°C to +75°C.

Mounting Method: It can be mounted on standard DIN rails (TH 35 – 15, TH 35 – 7.5) in accordance with IEC 60715 standards.

Protection Level: The protection level is IP20, which can adapt to general industrial environments and has a certain degree of durability.

Cable Cross – Section: The applicable cable cross – section range is 0.08…1.5mm².

Certifications: It has passed multiple certifications such as CE, CSA, GL, DNV, and ABS.

High – Precision Signal Collection: With a high resolution of 12 bits + sign, it can accurately collect various analog signals, and precisely capture even the slightest changes in signals. This provides a reliable data foundation for the control system and ensures the accuracy of industrial process control.

Compatibility with Multiple Signals: It can support multiple types of analog input signals such as thermocouples, resistance temperature detectors, voltage, and current, greatly improving the versatility and flexibility of the module. It can meet the needs of collecting various sensor signals in different industrial scenarios.

Stable and Reliable Operation: It is powered by a 24V DC power supply, ensuring stable operating voltage. With an IP20 protection level, it can effectively resist the intrusion of dust and other foreign objects and adapt to a certain degree of industrial environment interference. Moreover, having passed multiple authoritative certifications, it can operate stably for a long time in complex industrial environments, reducing the frequency of failures and maintenance costs.

Convenient Communication and Installation: As a CS31 slave fieldbus interface, it can easily communicate with other devices in the industrial automation system, realizing rapid data transmission and interaction. The installation method of standard DIN rails makes the installation and disassembly of the module very convenient, facilitating the construction and maintenance of the system.

Industrial Automation: In the production lines of the manufacturing industry, it can be used to monitor and control the operating parameters of equipment, such as temperature, pressure, and flow, facilitating the automated control and optimization of the production process, and improving production efficiency and product quality. For example, in an automobile manufacturing plant, it can monitor and control the environmental parameters such as temperature and humidity in the painting workshop in real – time to ensure the painting quality.

Energy Field: It can be applied to power systems, power plants, and energy monitoring and management systems. It can collect analog signals such as voltage, current, and temperature in real – time and transmit them to the control system for analysis and processing, ensuring the stable operation and efficient management of the energy system. In a wind power farm, it can monitor various operating parameters of wind turbines, such as blade angles and generator temperatures, to achieve remote monitoring and intelligent control of wind turbines.

Process Industry: It is suitable for process industry scenarios such as chemical plants, the oil and gas industry, and water treatment plants. By receiving and processing analog signals such as flow, pressure, and liquid level, it can achieve precise monitoring and control of the production process, ensuring safe production and efficient operation. In a petrochemical enterprise, it can monitor the pressure and flow in pipelines in real – time to prevent safety accidents such as leaks.

Building Automation: In the field of intelligent buildings, it is used to monitor and control the environmental parameters in buildings, such as temperature, humidity, and lighting, and integrate with the building management system to achieve intelligent control of building equipment and the environment, improving living comfort and energy efficiency. In an office building, it can automatically adjust the operating status of air – conditioners, lighting, and other equipment according to the number of people in the room and environmental changes.
