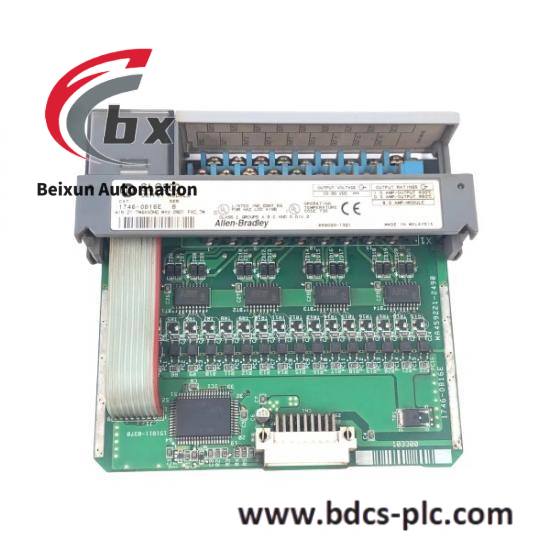

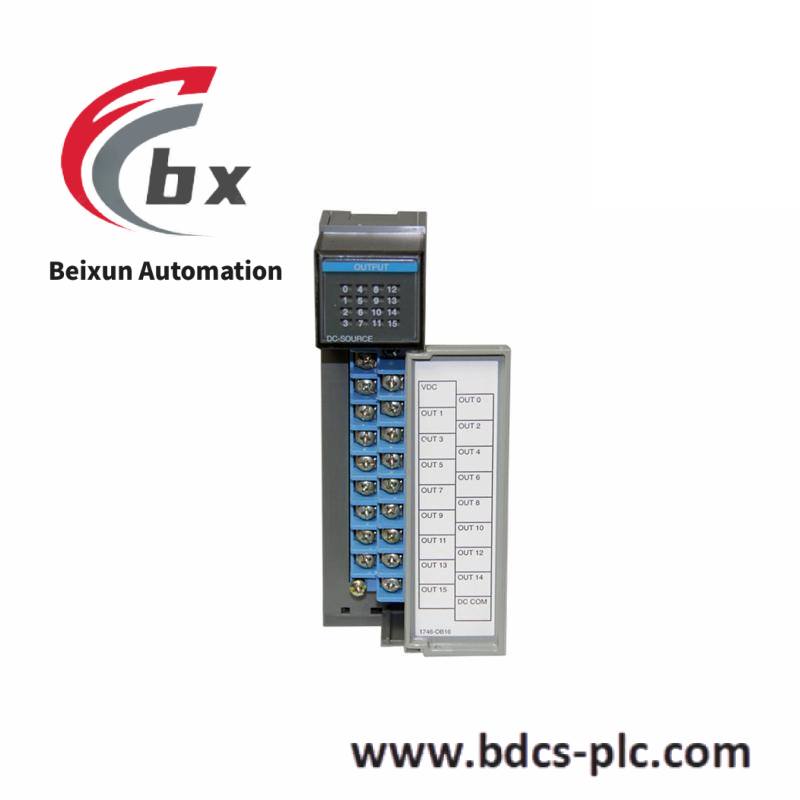

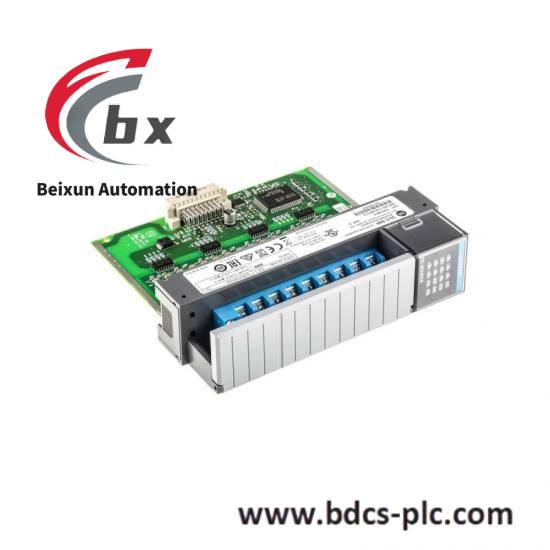

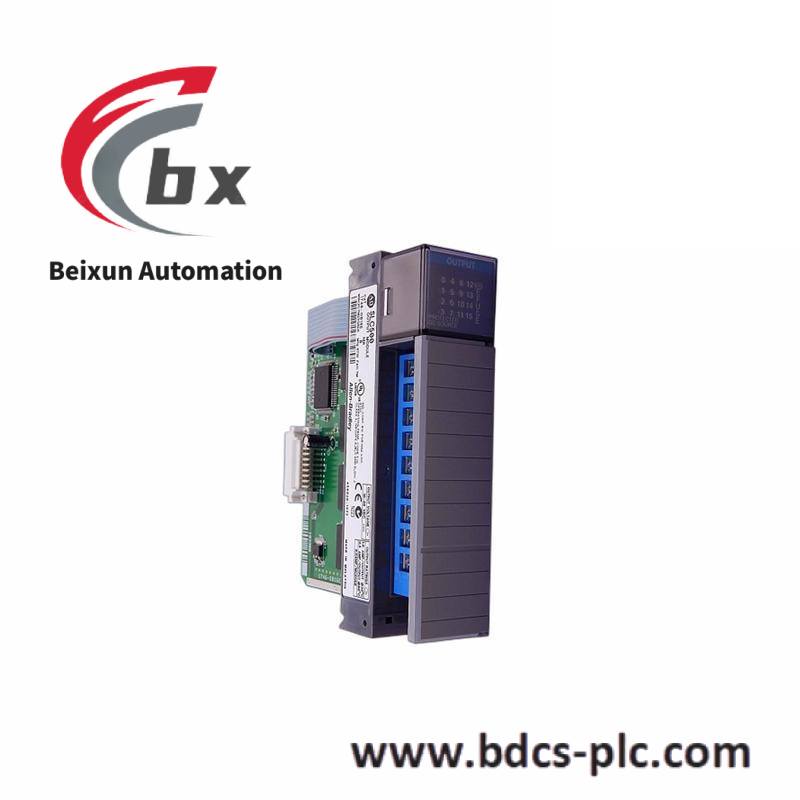

A-B 1746-OB16 Digital DC Output Module, 16 Channels
The Allen-Bradley 1746-OB16 is a reliable digital DC output module designed for industrial control systems. It offers 16 channels of digital output, making it ideal for a wide range of applications including automation, manufacturing, and process control.
Model Type:SLC500
Model Number:1746-OB16
Manufacturer:Allen Bradley
Number Of Channels:16
Input:24 VDC
Output:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating:{“Backplane”:”0.28 A”,”Continuous Current Per Output”:”0.25 A At 60 DEG C”,”Continuous Current Per Module”:”4 A At 60 DEG C”}
Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”}
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95%
The Allen-Bradley 1746-OB16 Digital DC Output Module offers robust performance for industrial environments. With sixteen channels of control, it can handle a variety of outputs essential for modern manufacturing processes. Its compact open-type enclosure and chassis mounting make it easy to integrate into existing systems. The module is built to withstand harsh conditions, ensuring consistent operation within a temperature range from 0°C to 60°C and humidity levels between 5% and 95%. Designed with high standards of isolation, it ensures stable communication circuits and backplane protection, making it a reliable choice for industrial automation. Each channel can deliver continuous current up to 0.25 A at 60°C, with a total of 4 A for the entire module under the same conditions. This makes it ideal for applications requiring precise and stable power distribution.
